SDO HMI 2014-05-26 23:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 29.48 | 137.72 | 14.94 | 69.78 | -12.65 | 63.17 | -1.35 | 174.92 | 0.2067 | 180.3 | 210.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-05-26 23:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |

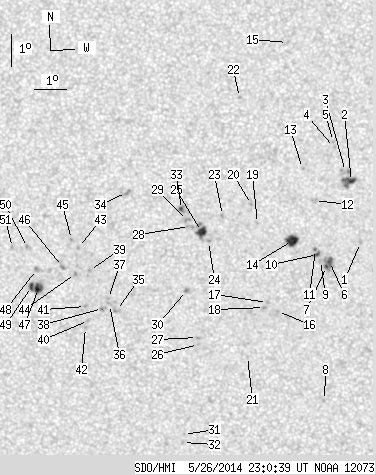

| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.53 | 0.00 | 0.78 | -12.45 | 67.85 | 3.33 | 196.35 | 0.2023 | 794.0 | 604.6 | |
| 2.16 | 10.64 | 1.09 | 5.35 | -10.56 | 67.55 | 3.03 | 197.90 | 0.1698 | 1040.6 | 935.5 | |
| 0.00 | 4.51 | 0.00 | 2.26 | -10.26 | 67.36 | 2.84 | 197.41 | 0.1638 | 641.0 | 851.1 | |
| 0.00 | 1.17 | 0.00 | 0.59 | -9.52 | 67.02 | 2.50 | 196.74 | 0.1499 | 854.0 | 641.8 | |
| 0.00 | 1.08 | 0.00 | 0.54 | -9.34 | 66.99 | 2.47 | 196.91 | 0.1467 | 779.0 | 621.8 | |
| 2.53 | 11.45 | 1.28 | 5.80 | -13.03 | 66.89 | 2.37 | 191.20 | 0.2082 | 1042.6 | 806.4 | |
| 1.08 | -6.00 | 0.55 | -6.00 | -13.19 | 66.80 | 2.28 | 190.63 | 0.2105 | 1037.3 | 999999 | |
| 0.00 | 0.99 | 0.00 | 0.51 | -17.38 | 66.78 | 2.25 | 187.72 | 0.2807 | 423.0 | 453.7 | |
| 0.00 | 1.62 | 0.00 | 0.82 | -13.00 | 66.61 | 2.09 | 189.93 | 0.2067 | 768.0 | 502.0 | |
| 0.99 | 2.34 | 0.50 | 1.19 | -12.82 | 66.51 | 1.99 | 189.64 | 0.2033 | 1126.5 | 931.8 | |
| 0.00 | 1.35 | 0.00 | 0.68 | -12.66 | 66.45 | 1.93 | 189.47 | 0.2005 | 1151.0 | 883.2 | |
| 0.00 | 3.25 | 0.00 | 1.63 | -11.15 | 66.41 | 1.89 | 190.72 | 0.1748 | 618.0 | 671.6 | |
| 0.00 | 1.26 | 0.00 | 0.63 | -10.16 | 66.04 | 1.51 | 189.59 | 0.1569 | 869.0 | 742.9 | |
| 8.48 | 11.00 | 4.28 | 5.56 | -12.38 | 65.73 | 1.21 | 186.14 | 0.1941 | 1161.5 | 762.7 | |
| 0.00 | 1.17 | 0.00 | 0.58 | -6.31 | 65.57 | 1.05 | 191.75 | 0.0895 | -760.0 | -608.2 | |
| 0.00 | 1.08 | 0.00 | 0.55 | -14.59 | 65.27 | 0.75 | 183.16 | 0.2311 | 876.0 | 733.9 | |
| 0.00 | 1.35 | 0.00 | 0.69 | -14.31 | 64.96 | 0.44 | 181.88 | 0.2261 | 952.0 | 749.4 | |
| 0.00 | 1.80 | 0.00 | 0.92 | -14.46 | 64.86 | 0.34 | 181.46 | 0.2287 | 1007.0 | 775.7 | |
| 0.00 | 1.17 | 0.00 | 0.59 | -11.86 | 64.65 | 0.12 | 180.67 | 0.1839 | 927.0 | 717.6 | |
| 0.00 | 1.17 | 0.00 | 0.59 | -11.27 | 64.46 | -0.06 | 179.66 | 0.1738 | 1073.0 | 806.5 | |
| 0.00 | 1.26 | 0.00 | 0.65 | -16.00 | 64.33 | -0.19 | 179.26 | 0.2547 | 738.0 | 499.5 | |
| 0.00 | 0.90 | 0.00 | 0.45 | -7.99 | 64.10 | -0.42 | 176.40 | 0.1171 | -893.0 | -734.0 | |
| 0.00 | 1.71 | 0.00 | 0.86 | -11.61 | 63.56 | -0.96 | 174.76 | 0.1804 | 924.0 | 764.2 | |
| 0.00 | 1.44 | 0.00 | 0.73 | -12.41 | 63.12 | -1.40 | 172.94 | 0.1949 | 734.0 | 588.0 | |
| 5.59 | 13.44 | 2.82 | 6.78 | -12.10 | 62.91 | -1.61 | 171.63 | 0.1902 | 1077.6 | 763.8 | |
| 0.00 | 1.17 | 0.00 | 0.60 | -15.62 | 62.78 | -1.74 | 173.26 | 0.2500 | 913.0 | 700.2 | |
| 0.00 | 1.98 | 0.00 | 1.01 | -15.40 | 62.75 | -1.77 | 173.04 | 0.2464 | 804.0 | 746.7 | |
| 0.00 | 2.98 | 0.00 | 1.50 | -11.95 | 62.54 | -1.99 | 169.60 | 0.1886 | 788.0 | 658.4 | |
| 0.00 | 2.34 | 0.00 | 1.18 | -11.76 | 62.48 | -2.05 | 169.10 | 0.1856 | 798.0 | 822.4 | |
| 0.00 | 2.43 | 0.00 | 1.24 | -13.93 | 62.42 | -2.10 | 170.77 | 0.2224 | -1016.0 | -826.0 | |
| 0.00 | 0.36 | 0.00 | 0.19 | -18.46 | 62.27 | -2.25 | 172.81 | 0.2985 | 718.0 | 570.0 | |
| 0.00 | 1.62 | 0.00 | 0.84 | -18.71 | 62.24 | -2.28 | 172.81 | 0.3028 | 788.0 | 622.7 | |
| 1.17 | 4.15 | 0.59 | 2.09 | -11.42 | 62.29 | -2.23 | 167.75 | 0.1805 | 988.2 | 779.5 | |
| 0.00 | 3.16 | 0.00 | 1.59 | -10.89 | 60.59 | -3.93 | 158.01 | 0.1805 | -747.0 | -819.6 | |
| 0.00 | 2.62 | 0.00 | 1.33 | -14.55 | 60.22 | -4.30 | 162.41 | 0.2414 | -650.0 | -725.3 | |
| 0.00 | 1.80 | 0.00 | 0.92 | -14.36 | 60.00 | -4.52 | 161.33 | 0.2395 | -679.0 | -720.8 | |
| 0.00 | 1.26 | 0.00 | 0.64 | -14.17 | 59.97 | -4.55 | 160.96 | 0.2367 | -970.0 | -729.3 | |
| 0.00 | 2.89 | 0.00 | 1.47 | -14.48 | 59.78 | -4.74 | 160.66 | 0.2428 | -1086.0 | -871.2 | |
| 0.00 | 0.99 | 0.00 | 0.50 | -13.30 | 59.40 | -5.12 | 157.31 | 0.2263 | -950.0 | -791.3 | |
| 0.00 | 2.07 | 0.00 | 1.06 | -14.86 | 59.33 | -5.19 | 159.53 | 0.2513 | -938.0 | -688.3 | |
| 0.00 | 0.99 | 0.00 | 0.51 | -14.42 | 59.25 | -5.28 | 158.57 | 0.2449 | -976.0 | -768.5 | |
| 0.00 | 1.44 | 0.00 | 0.74 | -15.08 | 59.23 | -5.29 | 159.49 | 0.2554 | -770.0 | -556.5 | |
| 0.00 | 1.35 | 0.00 | 0.69 | -12.59 | 59.07 | -5.45 | 154.65 | 0.2175 | -984.0 | -875.8 | |
| 0.00 | 1.53 | 0.00 | 0.78 | -13.39 | 58.96 | -5.57 | 155.75 | 0.2308 | -879.0 | -686.4 | |
| 0.00 | 1.17 | 0.00 | 0.59 | -12.34 | 58.86 | -5.67 | 153.26 | 0.2153 | -930.0 | -788.9 | |
| 0.00 | 2.71 | 0.00 | 1.38 | -13.17 | 58.55 | -5.97 | 153.80 | 0.2303 | -983.0 | -803.6 | |
| 5.41 | 11.00 | 2.77 | 5.62 | -13.85 | 57.78 | -6.74 | 152.34 | 0.2466 | -1073.7 | -820.0 | |
| 0.00 | 2.25 | 0.00 | 1.15 | -13.26 | 57.74 | -6.79 | 150.98 | 0.2382 | -1154.0 | -956.0 | |
| 2.07 | -47.00 | 1.06 | -47.00 | -13.79 | 57.56 | -6.96 | 151.46 | 0.2474 | -922.0 | 999999 | |
| 0.00 | 2.80 | 0.00 | 1.42 | -12.58 | 57.47 | -7.05 | 148.53 | 0.2304 | -884.0 | -651.0 | |
| 0.00 | 1.98 | 0.00 | 1.01 | -12.58 | 57.00 | -7.52 | 146.87 | 0.2347 | -669.0 | -538.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
