SDO HMI 2014-05-27 00:00:39 UT

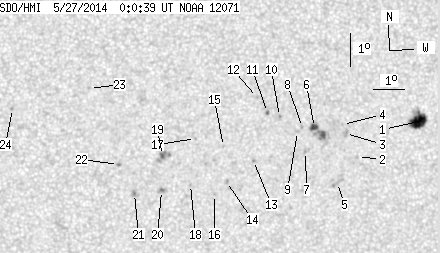

See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 20.84 | 80.14 | 11.22 | 42.51 | -10.46 | 82.56 | 18.59 | 242.15 | 0.3549 | 280.7 | 127.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-05-27 00:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 16.96 | 25.25 | 9.18 | 13.67 | -9.90 | 86.30 | 22.33 | 248.00 | 0.4054 | 1042.0 | 578.9 | |
| 0.00 | 1.35 | 0.00 | 0.73 | -10.99 | 84.35 | 20.38 | 243.60 | 0.3834 | 601.0 | 492.9 | |
| 0.00 | 3.25 | 0.00 | 1.73 | -10.29 | 83.91 | 19.94 | 244.85 | 0.3723 | 798.0 | 692.6 | |
| 0.00 | 1.08 | 0.00 | 0.58 | -10.01 | 83.79 | 19.82 | 245.42 | 0.3688 | 733.0 | 553.6 | |
| 0.00 | 4.06 | 0.00 | 2.17 | -11.80 | 83.75 | 19.78 | 241.02 | 0.3803 | 592.0 | 599.4 | |
| 3.16 | 12.54 | 1.67 | 6.65 | -10.11 | 82.88 | 18.91 | 244.19 | 0.3560 | 1070.5 | 910.5 | |
| 0.00 | 1.53 | 0.00 | 0.81 | -10.85 | 82.64 | 18.67 | 242.01 | 0.3575 | 754.0 | 601.7 | |
| 0.00 | 0.54 | 0.00 | 0.29 | -10.11 | 82.49 | 18.52 | 243.74 | 0.3503 | 770.0 | 586.2 | |
| 0.00 | 1.71 | 0.00 | 0.91 | -10.23 | 82.34 | 18.37 | 243.23 | 0.3488 | 817.0 | 630.8 | |
| 0.00 | 1.35 | 0.00 | 0.71 | -9.78 | 81.73 | 17.76 | 243.71 | 0.3367 | 801.0 | 668.6 | |
| 0.00 | 1.62 | 0.00 | 0.85 | -9.66 | 81.33 | 17.36 | 243.55 | 0.3300 | 885.0 | 759.3 | |
| 0.00 | 1.17 | 0.00 | 0.61 | -9.20 | 80.99 | 17.02 | 244.41 | 0.3218 | 796.0 | 511.9 | |
| 0.00 | 1.26 | 0.00 | 0.66 | -11.13 | 80.96 | 16.99 | 239.08 | 0.3357 | -760.0 | -686.2 | |
| 0.00 | 1.89 | 0.00 | 0.99 | -11.79 | 80.13 | 16.16 | 236.13 | 0.3296 | -796.0 | -729.1 | |
| 0.00 | 0.99 | 0.00 | 0.52 | -10.71 | 79.97 | 16.00 | 238.75 | 0.3182 | -715.0 | -553.0 | |
| 0.00 | 1.17 | 0.00 | 0.61 | -12.19 | 79.76 | 15.80 | 234.50 | 0.3282 | -696.0 | -543.9 | |
| 0.00 | 0.90 | 0.00 | 0.47 | -10.47 | 79.06 | 15.09 | 237.98 | 0.3033 | 594.0 | 457.2 | |
| 0.00 | 0.81 | 0.00 | 0.42 | -11.89 | 78.97 | 15.01 | 233.94 | 0.3148 | -793.0 | -619.0 | |
| 0.72 | 8.75 | 0.37 | 4.53 | -10.99 | 78.03 | 14.06 | 234.67 | 0.2937 | -1178.1 | -855.4 | |
| 0.00 | 2.62 | 0.00 | 1.36 | -12.07 | 78.05 | 14.08 | 231.75 | 0.3044 | -1093.0 | -808.6 | |
| 0.00 | 2.25 | 0.00 | 1.17 | -12.17 | 77.20 | 13.23 | 229.77 | 0.2942 | -1088.0 | -876.0 | |
| 0.00 | 1.53 | 0.00 | 0.79 | -11.28 | 76.64 | 12.68 | 231.07 | 0.2778 | -963.0 | -785.8 | |
| 0.00 | 1.35 | 0.00 | 0.69 | -8.95 | 75.64 | 11.67 | 236.26 | 0.2414 | -813.0 | -608.7 | |
| 0.00 | 1.17 | 0.00 | 0.59 | -9.56 | 73.25 | 9.28 | 227.83 | 0.2155 | -838.0 | -718.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
