SDO HMI 2014-05-27 02:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 21.39 | 87.73 | 11.60 | 46.78 | -10.94 | 81.89 | 19.03 | 241.35 | 0.3669 | 23.8 | 23.5 | |
|
previous
or next observation for the same group /

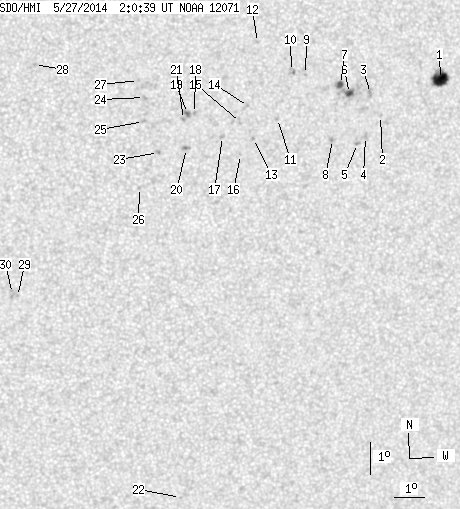

back to the solar disc SDO HMI 2014-05-27 02:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 15.34 | 22.55 | 8.37 | 12.31 | -9.88 | 86.30 | 23.44 | 248.89 | 0.4218 | 1046.5 | 651.2 | |
| 0.00 | 1.35 | 0.00 | 0.73 | -11.00 | 84.38 | 21.51 | 244.68 | 0.3999 | 563.0 | 498.8 | |
| 0.00 | 3.97 | 0.00 | 2.13 | -10.33 | 84.00 | 21.13 | 245.90 | 0.3902 | 812.0 | 643.4 | |
| 0.00 | 3.97 | 0.00 | 2.14 | -11.65 | 83.93 | 21.06 | 242.73 | 0.3977 | 772.0 | 589.6 | |
| 0.00 | 1.98 | 0.00 | 1.07 | -11.87 | 83.68 | 20.82 | 241.97 | 0.3957 | 711.0 | 596.2 | |
| 2.80 | 14.34 | 1.50 | 7.67 | -10.33 | 83.30 | 20.44 | 245.22 | 0.3800 | 1053.8 | 808.8 | |
| 2.62 | -6.00 | 1.40 | -6.00 | -10.06 | 82.99 | 20.12 | 245.58 | 0.3737 | 1054.4 | 999999 | |
| 0.00 | 0.54 | 0.00 | 0.29 | -11.75 | 82.84 | 19.98 | 241.32 | 0.3829 | 866.0 | 717.8 | |
| 0.00 | 0.99 | 0.00 | 0.53 | -9.76 | 81.83 | 18.96 | 245.12 | 0.3545 | 905.0 | 656.6 | |
| 0.00 | 4.60 | 0.00 | 2.43 | -9.67 | 81.36 | 18.50 | 244.84 | 0.3471 | 563.0 | 654.7 | |
| 0.00 | 1.71 | 0.00 | 0.91 | -11.11 | 81.00 | 18.13 | 240.63 | 0.3519 | -756.0 | -561.1 | |
| 0.00 | 1.35 | 0.00 | 0.71 | -8.78 | 80.22 | 17.35 | 245.96 | 0.3242 | -744.0 | -537.7 | |
| 0.00 | 1.35 | 0.00 | 0.71 | -11.74 | 80.25 | 17.39 | 238.06 | 0.3463 | -867.0 | -733.9 | |
| 0.00 | 0.63 | 0.00 | 0.33 | -10.75 | 80.03 | 17.17 | 240.29 | 0.3353 | -650.0 | -599.4 | |
| 0.00 | 1.35 | 0.00 | 0.71 | -11.24 | 79.80 | 16.94 | 238.67 | 0.3359 | -642.0 | -537.9 | |
| 0.00 | 0.63 | 0.00 | 0.33 | -12.23 | 79.86 | 17.00 | 236.25 | 0.3451 | -699.0 | -515.4 | |
| 0.00 | 2.35 | 0.00 | 1.23 | -11.68 | 79.25 | 16.38 | 236.71 | 0.3318 | -800.0 | -683.8 | |
| 0.00 | 1.53 | 0.00 | 0.80 | -10.97 | 78.30 | 15.44 | 237.09 | 0.3126 | -888.0 | -675.2 | |
| 0.63 | 4.06 | 0.33 | 2.11 | -10.97 | 78.08 | 15.21 | 236.72 | 0.3095 | -1081.0 | -874.3 | |
| 0.00 | 3.16 | 0.00 | 1.65 | -12.05 | 78.11 | 15.24 | 233.87 | 0.3197 | -1067.0 | -763.4 | |
| 0.00 | 1.35 | 0.00 | 0.70 | -11.16 | 77.96 | 15.10 | 236.01 | 0.3095 | -876.0 | -695.0 | |
| 0.00 | 0.81 | 0.00 | 0.45 | -23.12 | 78.88 | 16.02 | 214.25 | 0.4528 | -502.0 | -407.2 | |
| 0.00 | 1.80 | 0.00 | 0.94 | -12.18 | 77.21 | 14.35 | 231.93 | 0.3091 | -955.0 | -841.9 | |
| 0.00 | 2.07 | 0.00 | 1.07 | -10.49 | 76.68 | 13.82 | 235.64 | 0.2858 | -806.0 | -634.2 | |
| 0.00 | 2.17 | 0.00 | 1.12 | -11.23 | 76.68 | 13.82 | 233.51 | 0.2927 | -882.0 | -666.2 | |
| 0.00 | 1.35 | 0.00 | 0.71 | -13.27 | 76.66 | 13.80 | 228.10 | 0.3133 | -672.0 | -464.5 | |
| 0.00 | 0.90 | 0.00 | 0.47 | -9.97 | 76.47 | 13.60 | 236.81 | 0.2781 | -696.0 | -557.3 | |
| 0.00 | 1.08 | 0.00 | 0.55 | -9.49 | 73.18 | 10.31 | 230.99 | 0.2282 | -900.0 | -729.8 | |
| 0.00 | 0.99 | 0.00 | 0.52 | -16.69 | 72.93 | 10.07 | 212.19 | 0.3157 | -691.0 | -537.4 | |
| 0.00 | 2.80 | 0.00 | 1.46 | -16.60 | 72.76 | 9.90 | 211.93 | 0.3129 | -559.0 | -584.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
