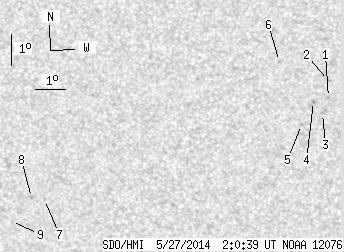

SDO HMI 2014-05-27 02:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 8.64 | 0.00 | 4.69 | -19.83 | 48.51 | -14.36 | 144.89 | 0.3977 | 314.8 | 202.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-05-27 02:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.90 | 0.00 | 0.48 | -18.69 | 52.57 | -10.29 | 150.54 | 0.3455 | 876.0 | 732.8 | |
| 0.00 | 0.90 | 0.00 | 0.47 | -18.15 | 52.61 | -10.26 | 149.78 | 0.3376 | 790.0 | 613.9 | |
| 0.00 | 0.81 | 0.00 | 0.43 | -19.20 | 52.35 | -10.52 | 150.76 | 0.3545 | 783.0 | 628.6 | |
| 0.00 | 1.17 | 0.00 | 0.62 | -18.82 | 52.08 | -10.79 | 149.57 | 0.3513 | 951.0 | 763.8 | |
| 0.00 | 0.81 | 0.00 | 0.43 | -19.55 | 51.63 | -11.23 | 149.68 | 0.3651 | 829.0 | 704.0 | |
| 0.00 | 1.08 | 0.00 | 0.57 | -17.54 | 51.05 | -11.81 | 145.16 | 0.3431 | 779.0 | 524.2 | |
| 0.00 | 0.99 | 0.00 | 0.56 | -21.91 | 42.69 | -20.17 | 137.86 | 0.4787 | -770.0 | -606.7 | |
| 0.00 | 1.53 | 0.00 | 0.87 | -21.84 | 42.25 | -20.61 | 137.16 | 0.4826 | -753.0 | -640.8 | |
| 0.00 | 0.45 | 0.00 | 0.26 | -22.61 | 41.42 | -21.44 | 137.26 | 0.4992 | -652.0 | -550.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
