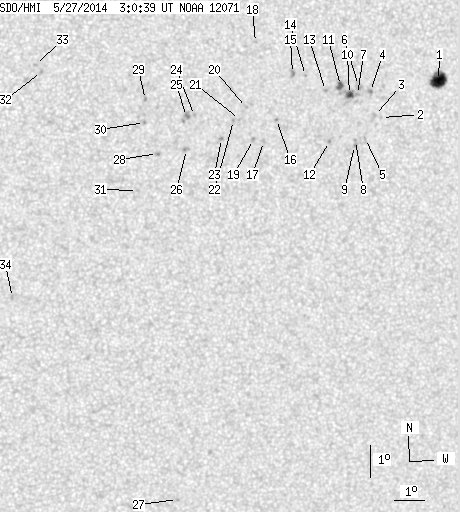

SDO HMI 2014-05-27 03:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 23.10 | 87.54 | 12.59 | 46.87 | -10.80 | 82.13 | 19.81 | 242.71 | 0.3765 | 138.2 | 32.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-05-27 03:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 17.41 | 21.29 | 9.54 | 11.67 | -9.87 | 86.29 | 23.97 | 249.29 | 0.4297 | 1034.2 | 654.7 | |
| 0.00 | 0.99 | 0.00 | 0.54 | -11.02 | 84.46 | 22.15 | 245.21 | 0.4093 | 587.0 | 448.5 | |
| 0.00 | 2.17 | 0.00 | 1.17 | -10.96 | 84.22 | 21.91 | 245.13 | 0.4055 | 718.0 | 607.8 | |
| 0.00 | 2.89 | 0.00 | 1.56 | -10.22 | 84.04 | 21.72 | 246.67 | 0.3983 | 850.0 | 749.1 | |
| 0.00 | 0.90 | 0.00 | 0.49 | -11.67 | 83.98 | 21.66 | 243.28 | 0.4065 | 718.0 | 582.7 | |
| 0.00 | 5.05 | 0.00 | 2.72 | -10.04 | 83.62 | 21.31 | 246.73 | 0.3912 | 378.0 | 616.0 | |
| 0.00 | 1.71 | 0.00 | 0.92 | -10.32 | 83.61 | 21.30 | 246.06 | 0.3926 | 724.0 | 650.4 | |
| 0.00 | 0.99 | 0.00 | 0.54 | -11.74 | 83.65 | 21.34 | 242.80 | 0.4022 | 827.0 | 647.3 | |
| 0.00 | 0.63 | 0.00 | 0.34 | -11.89 | 83.63 | 21.32 | 242.43 | 0.4030 | 679.0 | 482.7 | |
| 3.07 | 13.35 | 1.65 | 7.16 | -10.32 | 83.35 | 21.03 | 245.80 | 0.3887 | 1042.2 | 775.8 | |
| 2.62 | -10.00 | 1.40 | -10.00 | -10.04 | 83.03 | 20.72 | 246.17 | 0.3824 | 1043.1 | 999999 | |
| 0.00 | 1.26 | 0.00 | 0.68 | -11.77 | 82.79 | 20.48 | 241.81 | 0.3902 | 804.0 | 704.1 | |
| 0.00 | 1.26 | 0.00 | 0.67 | -10.20 | 82.55 | 20.23 | 245.30 | 0.3762 | 895.0 | 829.1 | |
| 0.00 | 0.72 | 0.00 | 0.38 | -9.74 | 81.86 | 19.55 | 245.75 | 0.3632 | 806.0 | 693.0 | |
| 0.00 | 3.16 | 0.00 | 1.67 | -9.69 | 81.43 | 19.12 | 245.45 | 0.3565 | 783.0 | 753.3 | |
| 0.00 | 1.26 | 0.00 | 0.67 | -11.10 | 81.00 | 18.68 | 241.33 | 0.3598 | -676.0 | -562.4 | |
| 0.00 | 1.89 | 0.00 | 1.01 | -11.78 | 80.62 | 18.30 | 239.17 | 0.3596 | -810.0 | -550.3 | |
| 0.00 | 0.99 | 0.00 | 0.52 | -8.74 | 80.18 | 17.87 | 246.63 | 0.3318 | -733.0 | -579.6 | |
| 0.00 | 1.89 | 0.00 | 1.00 | -11.73 | 80.29 | 17.97 | 238.88 | 0.3545 | -878.0 | -721.6 | |
| 0.00 | 0.90 | 0.00 | 0.48 | -10.74 | 80.00 | 17.68 | 240.99 | 0.3427 | -808.0 | -669.7 | |
| 0.00 | 0.72 | 0.00 | 0.38 | -11.11 | 79.79 | 17.48 | 239.76 | 0.3426 | -793.0 | -620.0 | |
| 0.00 | 1.08 | 0.00 | 0.57 | -11.14 | 79.60 | 17.29 | 239.41 | 0.3401 | -936.0 | -709.7 | |
| 0.00 | 1.53 | 0.00 | 0.81 | -11.70 | 79.24 | 16.93 | 237.47 | 0.3397 | -896.0 | -764.0 | |
| 0.00 | 1.17 | 0.00 | 0.61 | -10.99 | 78.33 | 16.02 | 237.94 | 0.3210 | -892.0 | -703.2 | |
| 0.00 | 6.41 | 0.00 | 3.35 | -11.03 | 78.08 | 15.76 | 237.45 | 0.3177 | -1054.0 | -751.5 | |
| 0.00 | 2.17 | 0.00 | 1.13 | -12.04 | 78.13 | 15.82 | 234.85 | 0.3275 | -985.0 | -794.2 | |
| 0.00 | 1.08 | 0.00 | 0.60 | -23.14 | 78.85 | 16.53 | 215.03 | 0.4577 | -519.0 | -435.3 | |
| 0.00 | 1.62 | 0.00 | 0.85 | -12.17 | 77.21 | 14.89 | 232.93 | 0.3162 | -986.0 | -834.9 | |
| 0.00 | 1.26 | 0.00 | 0.65 | -10.51 | 76.74 | 14.42 | 236.65 | 0.2944 | -828.0 | -725.4 | |
| 0.00 | 1.26 | 0.00 | 0.66 | -11.22 | 76.74 | 14.42 | 234.65 | 0.3009 | -902.0 | -745.5 | |
| 0.00 | 1.17 | 0.00 | 0.61 | -13.32 | 76.63 | 14.31 | 228.97 | 0.3203 | -674.0 | -490.2 | |
| 0.00 | 1.53 | 0.00 | 0.78 | -9.66 | 73.41 | 11.10 | 232.38 | 0.2406 | -788.0 | -616.1 | |
| 0.00 | 1.26 | 0.00 | 0.64 | -9.45 | 73.22 | 10.90 | 232.63 | 0.2358 | -840.0 | -677.8 | |
| 0.00 | 1.98 | 0.00 | 1.04 | -16.68 | 72.80 | 10.48 | 213.23 | 0.3194 | -793.0 | -666.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
