SDO HMI 2014-05-27 03:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 35.81 | 137.01 | 18.14 | 69.41 | -12.76 | 62.83 | 0.51 | 183.28 | 0.2088 | 130.8 | 82.8 | |
|
previous
or next observation for the same group /

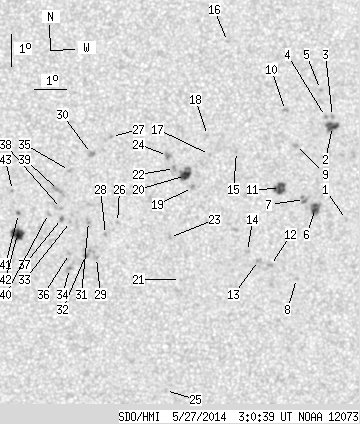

back to the solar disc SDO HMI 2014-05-27 03:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.71 | 0.00 | 0.87 | -13.44 | 67.97 | 5.66 | 204.46 | 0.2326 | 679.0 | 440.9 | |
| 6.04 | 9.38 | 3.05 | 4.73 | -10.56 | 67.48 | 5.17 | 208.73 | 0.1850 | 1049.1 | 787.3 | |
| 0.00 | 1.53 | 0.00 | 0.77 | -10.25 | 67.48 | 5.16 | 209.55 | 0.1803 | 884.0 | 673.4 | |
| 0.00 | 1.17 | 0.00 | 0.59 | -10.25 | 67.26 | 4.94 | 208.51 | 0.1785 | 1008.0 | 883.6 | |
| 0.00 | 1.26 | 0.00 | 0.63 | -9.43 | 67.09 | 4.78 | 210.09 | 0.1647 | 892.0 | 828.3 | |
| 5.32 | 9.02 | 2.70 | 4.58 | -13.10 | 66.99 | 4.68 | 201.19 | 0.2208 | 1033.3 | 798.7 | |
| 0.00 | 5.23 | 0.00 | 2.65 | -12.82 | 66.64 | 4.33 | 200.20 | 0.2142 | 968.0 | 899.1 | |
| 0.00 | 1.26 | 0.00 | 0.65 | -15.28 | 66.44 | 4.12 | 195.99 | 0.2529 | 805.0 | 627.5 | |
| 0.00 | 2.35 | 0.00 | 1.18 | -11.15 | 66.34 | 4.03 | 201.88 | 0.1857 | 953.0 | 773.6 | |
| 0.00 | 2.53 | 0.00 | 1.27 | -10.07 | 66.02 | 3.70 | 202.58 | 0.1664 | 965.0 | 745.2 | |
| 7.67 | 11.19 | 3.88 | 5.66 | -12.48 | 65.89 | 3.58 | 197.41 | 0.2045 | 1148.6 | 758.7 | |
| 0.00 | 2.26 | 0.00 | 1.15 | -14.87 | 65.61 | 3.30 | 193.30 | 0.2427 | 896.0 | 725.2 | |
| 0.00 | 2.62 | 0.00 | 1.33 | -14.71 | 65.23 | 2.92 | 191.95 | 0.2387 | 968.0 | 807.1 | |
| 0.00 | 2.26 | 0.00 | 1.15 | -14.43 | 64.88 | 2.57 | 190.79 | 0.2328 | 833.0 | 674.0 | |
| 0.00 | 1.26 | 0.00 | 0.64 | -11.33 | 64.51 | 2.20 | 192.16 | 0.1795 | 914.0 | 674.9 | |
| 0.00 | 1.26 | 0.00 | 0.63 | -7.96 | 64.22 | 1.90 | 195.80 | 0.1215 | -883.0 | -713.9 | |
| 0.00 | 1.26 | 0.00 | 0.64 | -11.42 | 63.68 | 1.36 | 187.53 | 0.1786 | 868.0 | 680.3 | |
| 0.00 | 1.26 | 0.00 | 0.63 | -10.84 | 63.61 | 1.30 | 187.63 | 0.1684 | 821.0 | 542.1 | |
| 0.00 | 2.26 | 0.00 | 1.14 | -12.44 | 63.15 | 0.84 | 184.21 | 0.1951 | 744.0 | 674.0 | |
| 6.41 | 12.27 | 3.23 | 6.19 | -12.07 | 62.93 | 0.62 | 183.23 | 0.1885 | 1095.9 | 916.3 | |
| 0.00 | 0.81 | 0.00 | 0.41 | -15.31 | 62.78 | 0.47 | 181.86 | 0.2437 | 600.0 | 407.6 | |
| 0.00 | 2.44 | 0.00 | 1.23 | -11.86 | 62.59 | 0.28 | 181.48 | 0.1845 | 1077.0 | 867.3 | |
| 0.00 | 1.62 | 0.00 | 0.82 | -14.00 | 62.44 | 0.12 | 180.53 | 0.2212 | -918.0 | -752.8 | |
| 0.00 | 3.88 | 0.00 | 1.95 | -11.45 | 62.38 | 0.06 | 180.34 | 0.1775 | 1157.0 | 936.2 | |
| 0.00 | 1.98 | 0.00 | 1.03 | -18.81 | 62.30 | -0.01 | 179.97 | 0.3026 | 613.0 | 494.4 | |
| 0.00 | 1.44 | 0.00 | 0.73 | -13.53 | 60.81 | -1.50 | 173.15 | 0.2147 | -864.0 | -499.2 | |
| 0.00 | 1.44 | 0.00 | 0.73 | -10.87 | 60.64 | -1.67 | 170.25 | 0.1698 | -932.0 | -738.6 | |
| 0.00 | 1.53 | 0.00 | 0.78 | -13.90 | 60.43 | -1.88 | 171.71 | 0.2219 | -982.0 | -786.2 | |
| 0.00 | 2.44 | 0.00 | 1.24 | -14.62 | 60.14 | -2.17 | 170.97 | 0.2347 | -737.0 | -638.3 | |
| 0.00 | 3.70 | 0.00 | 1.86 | -11.39 | 60.02 | -2.29 | 167.41 | 0.1808 | -1019.0 | -803.0 | |
| 0.00 | 2.08 | 0.00 | 1.05 | -13.49 | 59.91 | -2.41 | 169.07 | 0.2165 | -895.0 | -825.2 | |
| 0.45 | 5.32 | 0.23 | 2.71 | -14.55 | 59.80 | -2.52 | 169.52 | 0.2346 | -1093.0 | -876.8 | |
| 0.00 | 1.08 | 0.00 | 0.55 | -13.49 | 59.34 | -2.97 | 166.60 | 0.2185 | -870.0 | -730.5 | |
| 0.00 | 2.62 | 0.00 | 1.34 | -14.96 | 59.29 | -3.02 | 167.84 | 0.2431 | -965.0 | -762.5 | |
| 0.00 | 1.89 | 0.00 | 0.96 | -11.91 | 59.33 | -2.98 | 164.59 | 0.1924 | -890.0 | -703.4 | |
| 0.00 | 1.53 | 0.00 | 0.78 | -14.49 | 59.30 | -3.02 | 167.43 | 0.2353 | -925.0 | -721.5 | |
| 0.00 | 2.26 | 0.00 | 1.14 | -13.40 | 59.06 | -3.25 | 165.28 | 0.2182 | -1120.0 | -905.4 | |
| 0.00 | 1.26 | 0.00 | 0.64 | -13.09 | 59.07 | -3.25 | 164.92 | 0.2130 | -1029.0 | -824.6 | |
| 0.00 | 5.68 | 0.00 | 2.88 | -12.53 | 58.98 | -3.33 | 163.79 | 0.2042 | -911.0 | -804.7 | |
| 0.00 | 2.35 | 0.00 | 1.19 | -13.24 | 58.66 | -3.66 | 163.34 | 0.2175 | -846.0 | -644.3 | |
| 0.45 | 1.62 | 0.23 | 0.83 | -13.24 | 57.72 | -4.59 | 159.40 | 0.2225 | -962.4 | -771.8 | |
| 9.47 | 13.53 | 4.82 | 6.89 | -13.86 | 57.68 | -4.64 | 160.19 | 0.2327 | -1069.3 | -667.1 | |
| 0.00 | 1.17 | 0.00 | 0.59 | -12.53 | 57.55 | -4.77 | 157.43 | 0.2123 | -821.0 | -697.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
