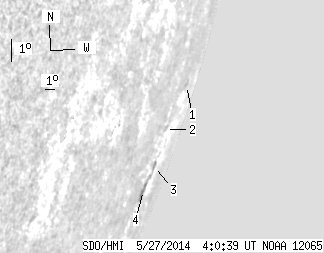

SDO HMI 2014-05-27 04:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 20.03 | 0.00 | 79.93 | -19.69 | 144.71 | 82.95 | 250.30 | 0.9929 | -171.5 | -187.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-05-27 04:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 3.88 | 0.00 | 18.67 | -17.36 | 146.09 | 84.33 | 252.68 | 0.9953 | -122.0 | -98.0 | |
| 0.00 | 1.53 | 0.00 | 5.87 | -18.81 | 144.23 | 82.47 | 251.19 | 0.9919 | 320.0 | 301.6 | |
| 0.00 | 3.61 | 0.00 | 14.35 | -19.99 | 144.70 | 82.93 | 250.01 | 0.9929 | -336.0 | -208.0 | |
| 0.00 | 11.01 | 0.00 | 41.04 | -20.78 | 144.15 | 82.39 | 249.20 | 0.9919 | -548.0 | -290.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
