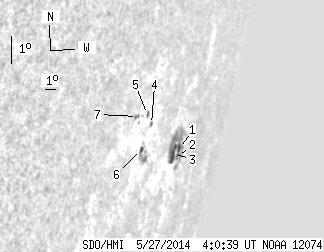

SDO HMI 2014-05-27 04:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 13.98 | 59.82 | 30.74 | 127.86 | -14.42 | 138.05 | 76.28 | 255.46 | 0.9726 | 290.7 | 80.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-05-27 04:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.35 | 44.39 | 5.48 | 101.30 | -14.36 | 139.51 | 77.75 | 255.58 | 0.9784 | -57.5 | 100.5 | |
| 1.26 | -1.00 | 2.96 | -1.00 | -14.61 | 139.51 | 77.75 | 255.32 | 0.9785 | -62.4 | 999999 | |
| 9.02 | -1.00 | 19.97 | -1.00 | -14.53 | 138.69 | 76.93 | 255.37 | 0.9755 | 560.2 | 999999 | |
| 0.00 | 1.80 | 0.00 | 3.17 | -13.69 | 135.25 | 73.49 | 256.10 | 0.9609 | -36.0 | 11.1 | |
| 0.00 | 2.08 | 0.00 | 3.52 | -13.39 | 134.57 | 72.81 | 256.38 | 0.9575 | -57.0 | 1.2 | |
| 1.35 | 9.11 | 2.33 | 15.96 | -14.49 | 134.82 | 73.05 | 255.25 | 0.9590 | -106.1 | 169.2 | |
| 0.00 | 2.44 | 0.00 | 3.91 | -13.48 | 133.59 | 71.83 | 256.24 | 0.9526 | -539.0 | -478.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
