SDO HMI 2014-05-27 05:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 22.57 | 88.64 | 12.42 | 47.90 | -10.62 | 82.63 | 21.41 | 244.96 | 0.3973 | 168.8 | 71.8 | |
|
previous
or next observation for the same group /

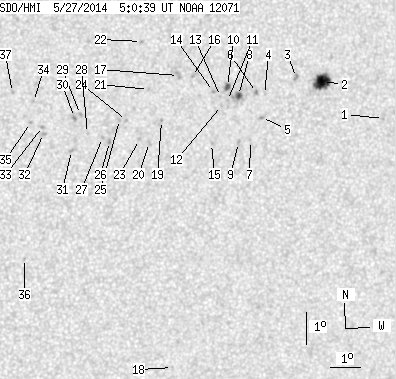

back to the solar disc SDO HMI 2014-05-27 05:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.17 | 0.00 | 0.66 | -10.97 | 88.51 | 27.29 | 249.20 | 0.4835 | 647.0 | 594.2 | |
| 17.60 | 22.11 | 9.73 | 12.22 | -9.85 | 86.30 | 25.09 | 250.09 | 0.4462 | 1032.5 | 643.6 | |
| 0.00 | 2.71 | 0.00 | 1.49 | -9.73 | 85.41 | 24.20 | 249.73 | 0.4324 | 1000.0 | 802.6 | |
| 0.00 | 0.90 | 0.00 | 0.49 | -10.26 | 84.37 | 23.16 | 247.77 | 0.4198 | 315.0 | 402.3 | |
| 0.00 | 1.99 | 0.00 | 1.08 | -10.97 | 84.33 | 23.11 | 246.15 | 0.4231 | 805.0 | 665.3 | |
| 0.00 | 2.35 | 0.00 | 1.28 | -10.20 | 84.10 | 22.89 | 247.68 | 0.4155 | 995.0 | 792.2 | |
| 0.00 | 0.81 | 0.00 | 0.44 | -11.68 | 84.02 | 22.80 | 244.31 | 0.4229 | 665.0 | 506.1 | |
| 2.71 | 8.66 | 1.47 | 4.69 | -10.30 | 83.51 | 22.29 | 246.96 | 0.4072 | 1067.3 | 806.1 | |
| 0.00 | 2.08 | 0.00 | 1.13 | -11.75 | 83.62 | 22.40 | 243.80 | 0.4176 | 860.0 | 674.0 | |
| 2.26 | 4.51 | 1.22 | 2.44 | -10.02 | 83.12 | 21.90 | 247.27 | 0.4000 | 1066.5 | 766.0 | |
| 0.00 | 0.99 | 0.00 | 0.54 | -10.45 | 83.15 | 21.93 | 246.29 | 0.4029 | 621.0 | 523.8 | |
| 0.00 | 0.99 | 0.00 | 0.54 | -10.61 | 82.96 | 21.75 | 245.76 | 0.4011 | 664.0 | 508.2 | |
| 0.00 | 1.08 | 0.00 | 0.58 | -10.33 | 82.91 | 21.69 | 246.35 | 0.3986 | 725.0 | 567.8 | |
| 0.00 | 1.44 | 0.00 | 0.78 | -10.18 | 82.67 | 21.45 | 246.49 | 0.3942 | 932.0 | 719.2 | |
| 0.00 | 0.81 | 0.00 | 0.44 | -11.78 | 82.72 | 21.50 | 242.84 | 0.4050 | 644.0 | 519.9 | |
| 0.00 | 0.90 | 0.00 | 0.48 | -9.72 | 81.94 | 20.72 | 246.93 | 0.3807 | 811.0 | 693.5 | |
| 0.00 | 4.33 | 0.00 | 2.31 | -9.70 | 81.48 | 20.26 | 246.55 | 0.3737 | 865.0 | 687.6 | |
| 0.00 | 0.90 | 0.00 | 0.50 | -18.81 | 82.14 | 20.92 | 228.14 | 0.4558 | -653.0 | -486.0 | |
| 0.00 | 0.81 | 0.00 | 0.43 | -11.08 | 81.01 | 19.79 | 242.65 | 0.3757 | -760.0 | -674.1 | |
| 0.00 | 2.26 | 0.00 | 1.21 | -11.76 | 80.66 | 19.45 | 240.61 | 0.3757 | -787.0 | -600.6 | |
| 0.00 | 1.44 | 0.00 | 0.77 | -10.13 | 80.52 | 19.31 | 244.47 | 0.3622 | -647.0 | -459.1 | |
| 0.00 | 1.62 | 0.00 | 0.86 | -8.66 | 80.21 | 18.99 | 248.00 | 0.3485 | -788.0 | -639.0 | |
| 0.00 | 1.44 | 0.00 | 0.77 | -11.67 | 80.33 | 19.11 | 240.43 | 0.3703 | -932.0 | -730.5 | |
| 0.00 | 1.53 | 0.00 | 0.81 | -11.09 | 79.86 | 18.65 | 241.29 | 0.3593 | -850.0 | -674.4 | |
| 0.00 | 1.80 | 0.00 | 0.96 | -11.06 | 79.63 | 18.42 | 241.07 | 0.3558 | -905.0 | -746.3 | |
| 0.00 | 1.71 | 0.00 | 0.91 | -11.74 | 79.35 | 18.13 | 239.02 | 0.3570 | -986.0 | -870.6 | |
| 0.00 | 1.44 | 0.00 | 0.76 | -11.62 | 79.11 | 17.90 | 239.00 | 0.3527 | -791.0 | -651.6 | |
| 0.00 | 1.08 | 0.00 | 0.57 | -11.50 | 78.62 | 17.40 | 238.62 | 0.3448 | -761.0 | -604.0 | |
| 0.00 | 1.71 | 0.00 | 0.90 | -10.91 | 78.36 | 17.14 | 239.76 | 0.3364 | -832.0 | -676.2 | |
| 0.00 | 2.44 | 0.00 | 1.28 | -11.01 | 78.17 | 16.95 | 239.25 | 0.3344 | -1062.0 | -894.1 | |
| 0.00 | 1.80 | 0.00 | 0.95 | -12.03 | 78.13 | 16.92 | 236.59 | 0.3424 | -791.0 | -709.2 | |
| 0.00 | 1.99 | 0.00 | 1.04 | -11.50 | 77.19 | 15.98 | 236.48 | 0.3250 | -817.0 | -686.2 | |
| 0.00 | 1.80 | 0.00 | 0.94 | -11.29 | 77.15 | 15.93 | 236.98 | 0.3225 | -785.0 | -647.5 | |
| 0.00 | 1.35 | 0.00 | 0.71 | -10.52 | 76.82 | 15.60 | 238.55 | 0.3113 | -859.0 | -700.0 | |
| 0.00 | 0.90 | 0.00 | 0.47 | -11.17 | 76.76 | 15.54 | 236.67 | 0.3160 | -831.0 | -691.9 | |
| 0.00 | 1.35 | 0.00 | 0.72 | -15.39 | 76.84 | 15.62 | 226.66 | 0.3585 | -723.0 | -528.7 | |
| 0.00 | 1.44 | 0.00 | 0.75 | -10.25 | 76.13 | 14.92 | 238.22 | 0.2993 | -68.0 | -164.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
