SDO HMI 2014-05-27 05:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 13.35 | 0.00 | 7.28 | -20.71 | 46.40 | -14.81 | 145.55 | 0.4140 | 118.6 | -68.9 | |
|
previous
or next observation for the same group /

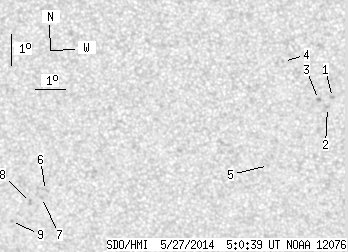

back to the solar disc SDO HMI 2014-05-27 05:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.44 | 0.00 | 0.76 | -18.71 | 52.61 | -8.61 | 154.71 | 0.3334 | 990.0 | 723.1 | |
| 0.00 | 0.81 | 0.00 | 0.43 | -19.03 | 52.43 | -8.79 | 154.69 | 0.3393 | 890.0 | 690.3 | |
| 0.00 | 1.99 | 0.00 | 1.04 | -18.77 | 52.15 | -9.07 | 153.65 | 0.3376 | 1053.0 | 808.0 | |
| 0.00 | 0.63 | 0.00 | 0.33 | -17.56 | 51.08 | -10.13 | 149.17 | 0.3287 | 665.0 | 501.3 | |
| 0.00 | 0.99 | 0.00 | 0.53 | -20.88 | 50.37 | -10.84 | 152.40 | 0.3810 | 511.0 | 479.2 | |
| 0.00 | 2.62 | 0.00 | 1.46 | -21.64 | 42.77 | -18.44 | 139.91 | 0.4585 | -809.0 | -575.1 | |
| 0.00 | 1.44 | 0.00 | 0.81 | -21.87 | 42.60 | -18.61 | 140.00 | 0.4627 | -768.0 | -626.9 | |
| 0.00 | 2.26 | 0.00 | 1.26 | -22.03 | 42.20 | -19.01 | 139.66 | 0.4685 | -762.0 | -697.4 | |
| 0.00 | 1.17 | 0.00 | 0.66 | -22.64 | 41.45 | -19.77 | 139.52 | 0.4828 | -703.0 | -580.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
