SDO HMI 2014-05-27 09:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 44.57 | 145.30 | 22.65 | 73.90 | -13.00 | 62.56 | 3.54 | 196.00 | 0.2212 | 60.0 | 78.9 | |
|
previous
or next observation for the same group /

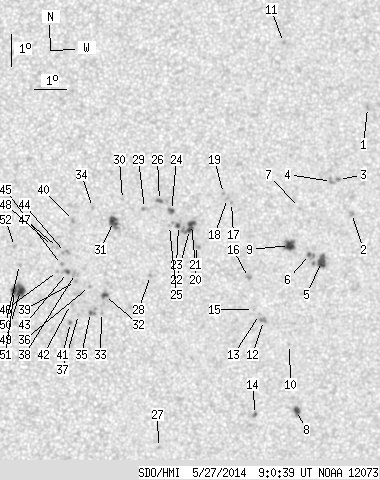

back to the solar disc SDO HMI 2014-05-27 09:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.80 | 0.00 | 0.91 | -8.30 | 68.43 | 9.40 | 232.66 | 0.2043 | 804.0 | 671.7 | |
| 0.00 | 2.71 | 0.00 | 1.38 | -11.56 | 68.02 | 8.99 | 220.46 | 0.2370 | 1021.0 | 802.0 | |
| 0.00 | 1.99 | 0.00 | 1.01 | -10.51 | 67.58 | 8.55 | 222.16 | 0.2189 | 940.0 | 834.8 | |
| 0.00 | 3.07 | 0.00 | 1.56 | -10.58 | 67.36 | 8.34 | 221.25 | 0.2172 | 1069.0 | 876.5 | |
| 6.14 | 9.38 | 3.14 | 4.80 | -13.05 | 67.12 | 8.10 | 213.80 | 0.2477 | 1074.5 | 790.5 | |
| 0.63 | 4.78 | 0.32 | 2.44 | -12.83 | 66.74 | 7.71 | 213.03 | 0.2411 | 1131.3 | 960.5 | |
| 0.00 | 0.45 | 0.00 | 0.23 | -11.38 | 66.38 | 7.36 | 215.46 | 0.2174 | 604.0 | 458.4 | |
| 2.89 | 5.59 | 1.50 | 2.92 | -17.72 | 66.50 | 7.47 | 203.57 | 0.3111 | 1023.2 | 775.3 | |
| 6.23 | 9.47 | 3.17 | 4.82 | -12.55 | 66.10 | 7.08 | 211.47 | 0.2314 | 1200.7 | 856.7 | |
| 0.00 | 0.81 | 0.00 | 0.42 | -15.64 | 66.19 | 7.17 | 205.77 | 0.2776 | 811.0 | 663.1 | |
| 0.00 | 1.44 | 0.00 | 0.72 | -6.32 | 65.80 | 6.77 | 232.83 | 0.1477 | -1062.0 | -864.1 | |
| 0.00 | 3.70 | 0.00 | 1.90 | -14.89 | 65.35 | 6.32 | 204.25 | 0.2602 | 1004.0 | 881.0 | |
| 0.00 | 1.08 | 0.00 | 0.55 | -14.70 | 65.22 | 6.19 | 204.11 | 0.2564 | 930.0 | 697.8 | |
| 0.54 | 1.53 | 0.28 | 0.80 | -17.85 | 65.18 | 6.16 | 199.65 | 0.3050 | -978.0 | -763.2 | |
| 0.00 | 0.81 | 0.00 | 0.42 | -14.55 | 65.02 | 6.00 | 203.70 | 0.2527 | 845.0 | 701.0 | |
| 0.00 | 2.62 | 0.00 | 1.33 | -13.55 | 64.84 | 5.81 | 204.77 | 0.2361 | 959.0 | 827.2 | |
| 0.00 | 1.08 | 0.00 | 0.55 | -11.23 | 64.26 | 5.24 | 207.28 | 0.1962 | 940.0 | 721.2 | |
| 0.00 | 1.99 | 0.00 | 1.00 | -11.10 | 64.14 | 5.11 | 207.00 | 0.1933 | 940.0 | 764.5 | |
| 0.00 | 1.26 | 0.00 | 0.64 | -10.95 | 64.01 | 4.98 | 206.80 | 0.1900 | 978.0 | 758.4 | |
| 0.00 | 3.25 | 0.00 | 1.65 | -12.56 | 63.19 | 4.17 | 199.86 | 0.2097 | 714.0 | 681.3 | |
| 2.98 | 10.56 | 1.50 | 5.34 | -11.91 | 63.03 | 4.00 | 200.24 | 0.1983 | 1206.2 | 838.2 | |
| 2.71 | -21.00 | 1.37 | -21.00 | -12.06 | 62.97 | 3.94 | 199.69 | 0.2005 | 1078.5 | 999999 | |
| 1.17 | 2.53 | 0.59 | 1.28 | -11.94 | 62.62 | 3.60 | 198.29 | 0.1965 | 1068.8 | 864.6 | |
| 1.35 | 3.16 | 0.68 | 1.59 | -11.48 | 62.40 | 3.38 | 197.98 | 0.1878 | 1148.3 | 856.7 | |
| 0.00 | 0.90 | 0.00 | 0.46 | -11.94 | 62.34 | 3.32 | 196.96 | 0.1951 | 828.0 | 642.4 | |
| 0.81 | 2.53 | 0.41 | 1.27 | -11.17 | 62.03 | 3.00 | 196.58 | 0.1808 | 1021.9 | 815.1 | |
| 0.00 | 1.08 | 0.00 | 0.56 | -18.90 | 62.10 | 3.07 | 189.48 | 0.3090 | 849.0 | 720.9 | |
| 0.00 | 1.17 | 0.00 | 0.60 | -13.49 | 61.77 | 2.74 | 192.37 | 0.2183 | 953.0 | 777.1 | |
| 0.00 | 1.80 | 0.00 | 0.91 | -11.41 | 61.56 | 2.54 | 193.80 | 0.1828 | 1043.0 | 697.2 | |
| 0.00 | 0.72 | 0.00 | 0.36 | -11.14 | 60.88 | 1.85 | 190.46 | 0.1756 | -798.0 | -495.6 | |
| 5.41 | 10.29 | 2.73 | 5.19 | -11.81 | 60.60 | 1.58 | 188.35 | 0.1864 | -1088.8 | -765.3 | |
| 1.89 | 3.16 | 0.96 | 1.61 | -14.11 | 60.33 | 1.31 | 185.67 | 0.2249 | -1180.4 | -925.4 | |
| 0.00 | 1.53 | 0.00 | 0.78 | -14.64 | 60.24 | 1.22 | 185.06 | 0.2338 | -880.0 | -717.7 | |
| 0.00 | 1.08 | 0.00 | 0.55 | -11.38 | 59.95 | 0.93 | 185.14 | 0.1777 | -1015.0 | -833.9 | |
| 0.54 | 4.96 | 0.28 | 2.53 | -14.64 | 59.90 | 0.87 | 183.63 | 0.2333 | -1040.8 | -892.9 | |
| 0.00 | 1.44 | 0.00 | 0.73 | -13.83 | 59.86 | 0.84 | 183.72 | 0.2195 | -1100.0 | -826.2 | |
| 0.00 | 1.08 | 0.00 | 0.55 | -14.70 | 59.52 | 0.49 | 182.05 | 0.2341 | -602.0 | -505.9 | |
| 0.00 | 4.06 | 0.00 | 2.06 | -13.42 | 59.43 | 0.40 | 181.84 | 0.2122 | -834.0 | -806.2 | |
| 0.00 | 1.26 | 0.00 | 0.64 | -13.67 | 59.43 | 0.40 | 181.80 | 0.2165 | -924.0 | -743.4 | |
| 0.00 | 1.89 | 0.00 | 0.95 | -11.78 | 59.36 | 0.34 | 181.80 | 0.1840 | -867.0 | -772.2 | |
| 0.00 | 1.71 | 0.00 | 0.87 | -14.95 | 59.27 | 0.24 | 180.99 | 0.2382 | -924.0 | -761.4 | |
| 0.00 | 0.72 | 0.00 | 0.37 | -14.39 | 59.27 | 0.24 | 181.03 | 0.2286 | -444.0 | -460.9 | |
| 0.99 | 3.52 | 0.50 | 1.78 | -13.39 | 59.18 | 0.15 | 180.69 | 0.2116 | -1117.3 | -848.3 | |
| 0.00 | 3.16 | 0.00 | 1.60 | -12.77 | 59.11 | 0.09 | 180.43 | 0.2009 | -840.0 | -899.8 | |
| 0.00 | 1.35 | 0.00 | 0.69 | -13.14 | 58.99 | -0.04 | 179.82 | 0.2073 | -948.0 | -816.7 | |
| 0.00 | 1.08 | 0.00 | 0.55 | -13.36 | 58.86 | -0.16 | 179.25 | 0.2110 | -884.0 | -657.3 | |
| 0.00 | 0.90 | 0.00 | 0.46 | -12.62 | 58.87 | -0.16 | 179.20 | 0.1983 | -1036.0 | -786.0 | |
| 0.00 | 1.26 | 0.00 | 0.64 | -12.59 | 58.71 | -0.32 | 178.43 | 0.1978 | -847.0 | -706.1 | |
| 6.86 | 14.71 | 3.48 | 7.47 | -13.95 | 57.70 | -1.32 | 174.19 | 0.2223 | -1119.1 | -730.6 | |
| 0.00 | 1.08 | 0.00 | 0.55 | -13.14 | 57.68 | -1.35 | 173.67 | 0.2085 | -914.0 | -766.2 | |
| 3.43 | -49.00 | 1.74 | -49.00 | -13.95 | 57.52 | -1.51 | 173.38 | 0.2226 | -1012.6 | 999999 | |
| 0.00 | 1.80 | 0.00 | 0.91 | -12.58 | 57.53 | -1.50 | 172.61 | 0.1993 | -998.0 | -738.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
