SDO HMI 2014-05-27 09:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 26.95 | 0.00 | 14.43 | -20.24 | 48.27 | -10.76 | 152.85 | 0.3739 | 173.1 | 93.3 | |
|
previous
or next observation for the same group /

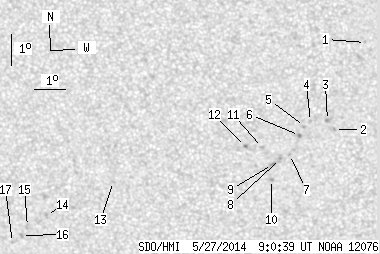

back to the solar disc SDO HMI 2014-05-27 09:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.81 | 0.00 | 0.42 | -16.29 | 53.60 | -5.43 | 160.73 | 0.2764 | 656.0 | 485.8 | |
| 0.00 | 1.35 | 0.00 | 0.71 | -19.04 | 52.51 | -6.52 | 160.67 | 0.3256 | 798.0 | 542.3 | |
| 0.00 | 2.53 | 0.00 | 1.32 | -18.75 | 52.29 | -6.73 | 159.76 | 0.3224 | 967.0 | 796.8 | |
| 0.00 | 1.35 | 0.00 | 0.71 | -18.78 | 51.74 | -7.28 | 158.30 | 0.3261 | 803.0 | 612.3 | |
| 0.00 | 1.35 | 0.00 | 0.71 | -18.94 | 51.54 | -7.48 | 157.96 | 0.3297 | 679.0 | 553.1 | |
| 0.00 | 1.44 | 0.00 | 0.76 | -19.23 | 51.37 | -7.66 | 157.84 | 0.3352 | 979.0 | 753.8 | |
| 0.00 | 0.90 | 0.00 | 0.48 | -19.84 | 51.01 | -8.02 | 157.66 | 0.3466 | 851.0 | 687.3 | |
| 0.00 | 0.99 | 0.00 | 0.52 | -19.96 | 50.71 | -8.32 | 157.06 | 0.3504 | 848.0 | 612.0 | |
| 0.00 | 2.53 | 0.00 | 1.34 | -20.15 | 50.44 | -8.59 | 156.63 | 0.3550 | 841.0 | 686.2 | |
| 0.00 | 1.80 | 0.00 | 0.96 | -20.64 | 50.38 | -8.65 | 157.05 | 0.3625 | 810.0 | 588.6 | |
| 0.00 | 1.35 | 0.00 | 0.72 | -19.61 | 50.14 | -8.88 | 155.24 | 0.3489 | -576.0 | -388.5 | |
| 0.00 | 1.71 | 0.00 | 0.91 | -19.57 | 49.59 | -9.44 | 153.86 | 0.3523 | -846.0 | -709.8 | |
| 0.00 | 1.35 | 0.00 | 0.73 | -20.67 | 45.14 | -13.89 | 146.04 | 0.4037 | -761.0 | -605.0 | |
| 0.00 | 2.17 | 0.00 | 1.19 | -21.76 | 42.76 | -16.26 | 143.49 | 0.4390 | -906.0 | -485.6 | |
| 0.00 | 2.17 | 0.00 | 1.20 | -22.11 | 42.07 | -16.96 | 142.90 | 0.4497 | -613.0 | -677.4 | |
| 0.00 | 1.80 | 0.00 | 1.00 | -22.40 | 41.83 | -17.20 | 142.94 | 0.4555 | -854.0 | -675.2 | |
| 0.00 | 1.35 | 0.00 | 0.75 | -22.63 | 41.49 | -17.54 | 142.74 | 0.4614 | -733.0 | -516.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
