SDO HMI 2014-05-27 10:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 18.68 | 74.68 | 10.54 | 41.51 | -10.62 | 83.70 | 25.22 | 248.26 | 0.4528 | 394.4 | 249.8 | |
|
previous
or next observation for the same group /

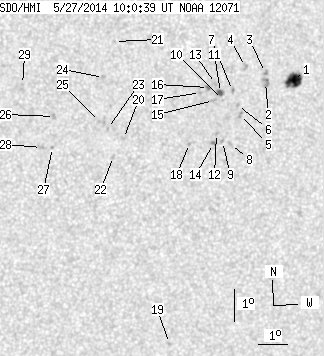

back to the solar disc SDO HMI 2014-05-27 10:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 15.79 | 19.85 | 8.94 | 11.24 | -9.83 | 86.29 | 27.81 | 251.72 | 0.4861 | 1015.5 | 646.6 | |
| 0.00 | 4.96 | 0.00 | 2.79 | -9.89 | 85.32 | 26.84 | 251.03 | 0.4723 | 764.0 | 811.0 | |
| 0.00 | 1.89 | 0.00 | 1.06 | -9.59 | 85.29 | 26.82 | 251.64 | 0.4706 | 841.0 | 816.0 | |
| 0.00 | 2.80 | 0.00 | 1.56 | -9.41 | 84.59 | 26.11 | 251.60 | 0.4595 | -613.0 | -566.5 | |
| 0.00 | 2.80 | 0.00 | 1.56 | -10.89 | 84.55 | 26.07 | 248.51 | 0.4656 | 753.0 | 566.6 | |
| 0.00 | 1.35 | 0.00 | 0.76 | -10.61 | 84.42 | 25.94 | 248.99 | 0.4624 | 747.0 | 657.8 | |
| 0.00 | 2.26 | 0.00 | 1.26 | -10.15 | 84.21 | 25.73 | 249.81 | 0.4571 | 764.0 | 670.2 | |
| 0.00 | 2.44 | 0.00 | 1.36 | -11.81 | 84.29 | 25.81 | 246.45 | 0.4668 | 635.0 | 427.6 | |
| 0.00 | 1.89 | 0.00 | 1.06 | -11.72 | 84.01 | 25.53 | 246.42 | 0.4623 | 672.0 | 521.0 | |
| 0.00 | 1.35 | 0.00 | 0.75 | -10.43 | 83.89 | 25.41 | 249.01 | 0.4538 | 472.0 | 510.6 | |
| 2.44 | 3.88 | 1.35 | 2.15 | -10.21 | 83.80 | 25.32 | 249.40 | 0.4515 | 1024.7 | 774.2 | |
| 0.00 | 1.17 | 0.00 | 0.65 | -11.48 | 83.78 | 25.30 | 246.75 | 0.4577 | 724.0 | 607.4 | |
| 0.00 | 1.80 | 0.00 | 1.00 | -9.94 | 83.61 | 25.13 | 249.86 | 0.4474 | 713.0 | 649.1 | |
| 0.00 | 2.08 | 0.00 | 1.16 | -11.79 | 83.70 | 25.22 | 246.06 | 0.4583 | 845.0 | 679.8 | |
| 0.00 | 2.62 | 0.00 | 1.45 | -10.46 | 83.58 | 25.10 | 248.73 | 0.4495 | 780.0 | 651.8 | |
| 0.45 | 1.89 | 0.25 | 1.05 | -10.06 | 83.38 | 24.90 | 249.44 | 0.4446 | 1065.0 | 880.1 | |
| 0.00 | 0.99 | 0.00 | 0.55 | -10.22 | 83.12 | 24.64 | 248.92 | 0.4416 | 940.0 | 703.0 | |
| 0.00 | 1.08 | 0.00 | 0.60 | -11.79 | 82.88 | 24.40 | 245.40 | 0.4467 | 763.0 | 668.8 | |
| 0.00 | 1.62 | 0.00 | 0.92 | -18.05 | 82.94 | 24.47 | 233.51 | 0.4917 | 733.0 | 580.6 | |
| 0.00 | 1.99 | 0.00 | 1.08 | -11.66 | 80.64 | 22.16 | 243.71 | 0.4138 | -594.0 | -353.3 | |
| 0.00 | 0.90 | 0.00 | 0.48 | -8.67 | 80.13 | 21.65 | 250.23 | 0.3892 | -770.0 | -573.1 | |
| 0.00 | 1.71 | 0.00 | 0.93 | -12.21 | 80.35 | 21.87 | 242.19 | 0.4134 | -738.0 | -588.1 | |
| 0.00 | 1.26 | 0.00 | 0.68 | -11.35 | 80.08 | 21.60 | 243.85 | 0.4038 | -699.0 | -582.0 | |
| 0.00 | 1.89 | 0.00 | 1.02 | -9.78 | 79.83 | 21.35 | 247.30 | 0.3906 | -752.0 | -654.9 | |
| 0.00 | 0.99 | 0.00 | 0.54 | -11.14 | 79.80 | 21.32 | 244.07 | 0.3983 | -1000.0 | -815.4 | |
| 0.00 | 2.26 | 0.00 | 1.20 | -10.99 | 78.30 | 19.82 | 242.84 | 0.3757 | -708.0 | -666.2 | |
| 0.00 | 0.90 | 0.00 | 0.48 | -11.95 | 78.30 | 19.82 | 240.56 | 0.3826 | -815.0 | -685.7 | |
| 0.00 | 3.25 | 0.00 | 1.74 | -11.95 | 77.94 | 19.46 | 240.13 | 0.3775 | -700.0 | -597.2 | |
| 0.00 | 0.81 | 0.00 | 0.43 | -10.01 | 77.19 | 18.71 | 244.04 | 0.3528 | -744.0 | -638.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
