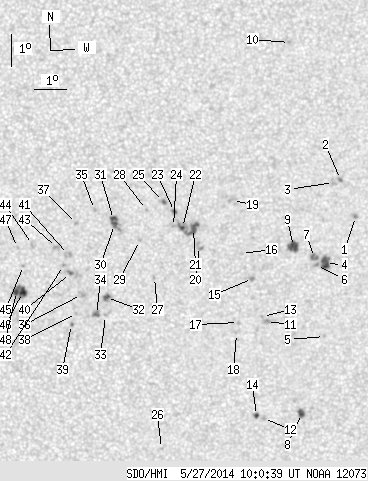

SDO HMI 2014-05-27 10:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 43.85 | 154.72 | 22.33 | 78.70 | -13.11 | 62.63 | 4.15 | 198.21 | 0.2253 | 114.1 | 118.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-05-27 10:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.08 | 0.00 | 1.06 | -11.62 | 68.07 | 9.59 | 222.09 | 0.2445 | 970.0 | 813.6 | |
| 0.00 | 1.89 | 0.00 | 0.96 | -10.48 | 67.56 | 9.08 | 223.96 | 0.2246 | 935.0 | 848.2 | |
| 0.00 | 3.61 | 0.00 | 1.83 | -10.57 | 67.34 | 8.87 | 222.98 | 0.2232 | 900.0 | 759.7 | |
| 6.59 | 10.11 | 3.37 | 5.17 | -13.08 | 67.17 | 8.69 | 215.62 | 0.2539 | 1040.1 | 722.1 | |
| 0.00 | 0.99 | 0.00 | 0.51 | -15.35 | 67.23 | 8.75 | 210.98 | 0.2861 | 746.0 | 552.6 | |
| 0.00 | 2.17 | 0.00 | 1.11 | -13.14 | 66.89 | 8.41 | 214.59 | 0.2520 | 880.0 | 714.1 | |
| 0.00 | 5.05 | 0.00 | 2.58 | -12.89 | 66.82 | 8.34 | 214.95 | 0.2479 | 1130.0 | 1010.3 | |
| 2.98 | 5.05 | 1.55 | 2.64 | -17.78 | 66.59 | 8.11 | 205.25 | 0.3165 | 1026.2 | 821.8 | |
| 6.59 | 9.84 | 3.36 | 5.01 | -12.55 | 66.15 | 7.67 | 213.55 | 0.2368 | 1203.8 | 788.8 | |
| 0.00 | 1.17 | 0.00 | 0.59 | -6.29 | 65.89 | 7.41 | 235.45 | 0.1564 | -1001.0 | -805.8 | |
| 0.00 | 3.52 | 0.00 | 1.81 | -14.88 | 65.37 | 6.89 | 206.14 | 0.2643 | 1022.0 | 837.7 | |
| 0.00 | 1.80 | 0.00 | 0.94 | -17.94 | 65.38 | 6.90 | 201.66 | 0.3109 | -391.0 | -297.2 | |
| 0.00 | 0.63 | 0.00 | 0.32 | -14.73 | 65.23 | 6.76 | 205.97 | 0.2610 | 910.0 | 715.7 | |
| 1.44 | 2.53 | 0.75 | 1.32 | -17.84 | 65.15 | 6.67 | 201.13 | 0.3080 | -946.9 | -770.3 | |
| 0.00 | 2.44 | 0.00 | 1.24 | -13.54 | 64.89 | 6.41 | 206.95 | 0.2405 | 976.0 | 823.4 | |
| 0.00 | 1.35 | 0.00 | 0.69 | -12.77 | 64.52 | 6.04 | 207.16 | 0.2260 | 738.0 | 537.7 | |
| 0.00 | 1.08 | 0.00 | 0.56 | -14.92 | 64.48 | 6.00 | 203.12 | 0.2585 | 849.0 | 737.9 | |
| 0.00 | 0.36 | 0.00 | 0.19 | -15.26 | 64.43 | 5.95 | 202.40 | 0.2635 | 773.0 | 539.5 | |
| 0.00 | 3.07 | 0.00 | 1.55 | -11.13 | 64.21 | 5.73 | 209.66 | 0.1989 | 802.0 | 713.4 | |
| 0.00 | 4.15 | 0.00 | 2.10 | -12.55 | 63.21 | 4.73 | 202.27 | 0.2132 | 361.0 | 661.1 | |
| 5.05 | 18.95 | 2.56 | 9.58 | -12.00 | 63.01 | 4.53 | 202.47 | 0.2031 | 1124.4 | 872.7 | |
| 1.53 | -21.00 | 0.78 | -21.00 | -11.97 | 62.67 | 4.19 | 200.98 | 0.2004 | 1101.3 | 999999 | |
| 0.99 | 1.99 | 0.50 | 1.00 | -11.47 | 62.41 | 3.93 | 200.70 | 0.1910 | 1113.5 | 900.5 | |
| 0.00 | 1.53 | 0.00 | 0.78 | -11.93 | 62.39 | 3.91 | 199.74 | 0.1983 | 890.0 | 665.8 | |
| 0.72 | 3.07 | 0.36 | 1.55 | -11.16 | 62.07 | 3.59 | 199.58 | 0.1839 | 1120.5 | 870.2 | |
| 0.00 | 0.99 | 0.00 | 0.52 | -18.89 | 62.12 | 3.65 | 191.21 | 0.3107 | 713.0 | 587.5 | |
| 0.00 | 0.72 | 0.00 | 0.37 | -13.52 | 61.81 | 3.33 | 194.88 | 0.2212 | 898.0 | 655.5 | |
| 0.00 | 0.90 | 0.00 | 0.45 | -11.41 | 61.54 | 3.06 | 196.50 | 0.1852 | 702.0 | 625.7 | |
| 0.00 | 1.62 | 0.00 | 0.82 | -12.37 | 61.33 | 2.85 | 194.13 | 0.2001 | 804.0 | 514.8 | |
| 2.26 | 10.56 | 1.14 | 5.32 | -11.87 | 60.55 | 2.07 | 190.85 | 0.1889 | -1142.0 | -786.7 | |
| 2.44 | -30.00 | 1.23 | -30.00 | -11.72 | 60.52 | 2.04 | 190.84 | 0.1862 | -1147.3 | 999999 | |
| 1.89 | 4.42 | 0.96 | 2.25 | -14.14 | 60.32 | 1.84 | 187.93 | 0.2265 | -1169.4 | -851.8 | |
| 0.00 | 0.99 | 0.00 | 0.51 | -14.70 | 60.29 | 1.81 | 187.48 | 0.2360 | -912.0 | -735.0 | |
| 1.08 | 4.42 | 0.55 | 2.25 | -14.67 | 60.01 | 1.53 | 186.33 | 0.2349 | -1085.2 | -935.2 | |
| 0.00 | 1.26 | 0.00 | 0.64 | -11.41 | 59.93 | 1.45 | 187.99 | 0.1793 | -937.0 | -788.7 | |
| 0.00 | 3.61 | 0.00 | 1.83 | -14.04 | 59.53 | 1.05 | 184.60 | 0.2235 | -881.0 | -771.8 | |
| 0.00 | 1.44 | 0.00 | 0.73 | -11.84 | 59.37 | 0.89 | 184.74 | 0.1856 | -981.0 | -838.4 | |
| 0.00 | 1.26 | 0.00 | 0.64 | -14.64 | 59.38 | 0.90 | 183.75 | 0.2334 | -878.0 | -618.5 | |
| 0.00 | 1.26 | 0.00 | 0.64 | -14.98 | 59.22 | 0.74 | 183.02 | 0.2391 | -844.0 | -788.6 | |
| 0.54 | 2.80 | 0.27 | 1.42 | -13.39 | 59.19 | 0.71 | 183.27 | 0.2119 | -1206.2 | -920.2 | |
| 0.00 | 5.50 | 0.00 | 2.78 | -12.80 | 59.12 | 0.65 | 183.14 | 0.2018 | -975.0 | -811.0 | |
| 0.00 | 1.35 | 0.00 | 0.69 | -13.14 | 58.97 | 0.49 | 182.31 | 0.2075 | -978.0 | -794.5 | |
| 0.00 | 3.79 | 0.00 | 1.91 | -12.58 | 58.75 | 0.27 | 181.35 | 0.1978 | -986.0 | -780.9 | |
| 0.00 | 2.71 | 0.00 | 1.37 | -12.49 | 58.00 | -0.47 | 177.63 | 0.1963 | -751.0 | -463.4 | |
| 0.00 | 1.17 | 0.00 | 0.59 | -13.14 | 57.72 | -0.76 | 176.43 | 0.2077 | -719.0 | -584.2 | |
| 6.50 | 14.53 | 3.30 | 7.38 | -13.98 | 57.69 | -0.79 | 176.52 | 0.2221 | -1140.5 | -670.8 | |
| 0.00 | 0.99 | 0.00 | 0.50 | -12.58 | 57.54 | -0.94 | 175.34 | 0.1984 | -1063.0 | -867.8 | |
| 3.25 | -46.00 | 1.65 | -46.00 | -13.95 | 57.50 | -0.98 | 175.69 | 0.2217 | -1018.1 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
