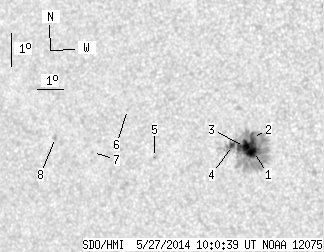

SDO HMI 2014-05-27 10:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 32.57 | 130.83 | 19.44 | 78.30 | -8.79 | 25.05 | -33.43 | 103.95 | 0.5630 | 812.9 | 375.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-05-27 10:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 13.35 | 125.60 | 7.96 | 74.93 | -8.93 | 25.49 | -32.99 | 104.33 | 0.5573 | 1163.1 | 417.4 | |
| 3.79 | -1.00 | 2.25 | -1.00 | -8.50 | 25.50 | -32.98 | 103.57 | 0.5560 | 931.3 | 999999 | |
| 13.08 | -1.00 | 7.82 | -1.00 | -8.77 | 25.17 | -33.30 | 103.95 | 0.5613 | 991.7 | 999999 | |
| 2.35 | -1.00 | 1.41 | -1.00 | -8.74 | 24.74 | -33.74 | 103.74 | 0.5673 | 759.8 | 999999 | |
| 0.00 | 0.99 | 0.00 | 0.62 | -9.07 | 21.75 | -36.72 | 103.39 | 0.6092 | 651.0 | 532.1 | |
| 0.00 | 0.81 | 0.00 | 0.51 | -7.58 | 20.88 | -37.60 | 100.77 | 0.6179 | -561.0 | -437.9 | |
| 0.00 | 0.90 | 0.00 | 0.58 | -8.88 | 19.35 | -39.12 | 102.47 | 0.6408 | -596.0 | -527.0 | |
| 0.00 | 2.53 | 0.00 | 1.66 | -8.40 | 17.93 | -40.55 | 101.42 | 0.6584 | -618.0 | -511.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
