SDO HMI 2014-05-27 11:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 43.75 | 141.52 | 22.30 | 72.05 | -13.04 | 62.67 | 4.74 | 200.84 | 0.2275 | 37.2 | 86.8 | |
|
previous
or next observation for the same group /

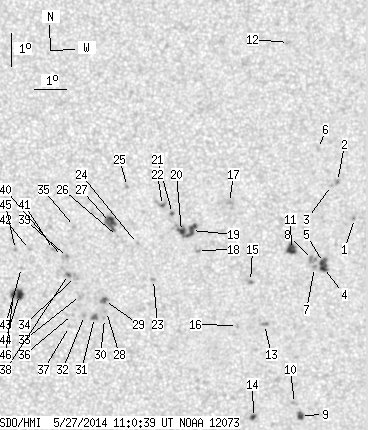

back to the solar disc SDO HMI 2014-05-27 11:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.53 | 0.00 | 0.78 | -11.62 | 68.12 | 10.19 | 223.81 | 0.2514 | 803.0 | 778.3 | |
| 0.00 | 2.35 | 0.00 | 1.19 | -10.48 | 67.55 | 9.62 | 225.57 | 0.2310 | 955.0 | 818.0 | |
| 0.00 | 1.17 | 0.00 | 0.60 | -10.60 | 67.36 | 9.43 | 224.64 | 0.2303 | 797.0 | 744.5 | |
| 3.61 | 9.02 | 1.85 | 4.63 | -13.13 | 67.20 | 9.27 | 217.20 | 0.2605 | 982.0 | 746.2 | |
| 2.98 | -4.00 | 1.53 | -4.00 | -12.98 | 67.19 | 9.26 | 217.55 | 0.2584 | 1079.0 | 999999 | |
| 0.00 | 2.17 | 0.00 | 1.10 | -9.46 | 66.92 | 8.99 | 227.06 | 0.2116 | 474.0 | 302.8 | |
| 0.00 | 1.98 | 0.00 | 1.02 | -13.13 | 66.91 | 8.98 | 216.35 | 0.2576 | 806.0 | 701.6 | |
| 0.00 | 5.05 | 0.00 | 2.59 | -12.89 | 66.84 | 8.91 | 216.73 | 0.2536 | 1129.0 | 966.1 | |
| 2.80 | 4.60 | 1.46 | 2.41 | -17.78 | 66.66 | 8.73 | 206.89 | 0.3210 | 1021.5 | 824.5 | |
| 0.00 | 2.62 | 0.00 | 1.36 | -17.40 | 66.45 | 8.52 | 206.89 | 0.3138 | 931.0 | 694.4 | |
| 5.86 | 8.39 | 2.99 | 4.28 | -12.58 | 66.17 | 8.24 | 215.37 | 0.2427 | 1197.5 | 852.9 | |
| 0.00 | 1.98 | 0.00 | 1.00 | -6.22 | 65.93 | 8.00 | 237.75 | 0.1644 | -898.0 | -663.1 | |
| 0.00 | 2.71 | 0.00 | 1.39 | -14.91 | 65.39 | 7.46 | 207.92 | 0.2692 | 1034.0 | 883.0 | |
| 1.44 | 2.71 | 0.75 | 1.41 | -17.84 | 65.15 | 7.22 | 202.69 | 0.3114 | -1023.2 | -855.8 | |
| 0.00 | 2.62 | 0.00 | 1.34 | -13.57 | 64.91 | 6.98 | 208.90 | 0.2455 | 986.0 | 811.1 | |
| 0.00 | 1.53 | 0.00 | 0.79 | -14.95 | 64.54 | 6.61 | 205.10 | 0.2632 | 842.0 | 693.4 | |
| 0.00 | 3.07 | 0.00 | 1.55 | -11.13 | 64.19 | 6.26 | 211.88 | 0.2035 | 1020.0 | 817.9 | |
| 0.00 | 2.35 | 0.00 | 1.19 | -12.61 | 63.22 | 5.29 | 204.50 | 0.2180 | 604.0 | 679.1 | |
| 5.14 | 17.32 | 2.60 | 8.77 | -11.99 | 63.02 | 5.09 | 204.93 | 0.2070 | 1086.7 | 808.3 | |
| 2.98 | -19.00 | 1.51 | -19.00 | -12.02 | 62.71 | 4.78 | 203.52 | 0.2053 | 1064.5 | 999999 | |
| 0.63 | 1.62 | 0.32 | 0.82 | -11.47 | 62.42 | 4.49 | 203.35 | 0.1946 | 1149.9 | 939.7 | |
| 0.45 | 4.51 | 0.23 | 2.28 | -11.22 | 62.11 | 4.18 | 202.38 | 0.1886 | 1133.2 | 822.4 | |
| 0.00 | 1.80 | 0.00 | 0.92 | -13.51 | 61.86 | 3.93 | 197.39 | 0.2240 | 1010.0 | 757.0 | |
| 0.00 | 1.26 | 0.00 | 0.64 | -12.40 | 61.35 | 3.42 | 196.73 | 0.2032 | 841.0 | 614.5 | |
| 0.00 | 1.35 | 0.00 | 0.68 | -10.64 | 61.02 | 3.09 | 197.94 | 0.1727 | -911.0 | -771.7 | |
| 0.00 | 0.72 | 0.00 | 0.36 | -12.18 | 60.72 | 2.79 | 194.07 | 0.1968 | -780.0 | -624.5 | |
| 7.13 | 11.64 | 3.60 | 5.87 | -11.75 | 60.50 | 2.57 | 193.53 | 0.1886 | -1095.6 | -759.8 | |
| 0.00 | 1.17 | 0.00 | 0.60 | -14.51 | 60.40 | 2.47 | 190.30 | 0.2346 | -459.0 | -413.3 | |
| 1.53 | 3.52 | 0.78 | 1.79 | -14.17 | 60.34 | 2.41 | 190.30 | 0.2286 | -1109.2 | -1003.1 | |
| 0.00 | 0.36 | 0.00 | 0.18 | -14.73 | 60.34 | 2.41 | 189.88 | 0.2381 | -832.0 | -661.5 | |
| 1.44 | 4.24 | 0.74 | 2.16 | -14.70 | 60.03 | 2.10 | 188.64 | 0.2367 | -1127.5 | -876.3 | |
| 0.00 | 1.71 | 0.00 | 0.87 | -14.63 | 59.71 | 1.78 | 187.39 | 0.2349 | -783.0 | -590.4 | |
| 0.00 | 4.69 | 0.00 | 2.38 | -14.01 | 59.58 | 1.65 | 187.21 | 0.2240 | -721.0 | -615.8 | |
| 0.00 | 3.25 | 0.00 | 1.65 | -13.42 | 59.42 | 1.49 | 186.84 | 0.2137 | -806.0 | -831.1 | |
| 0.00 | 1.44 | 0.00 | 0.73 | -11.87 | 59.38 | 1.45 | 187.66 | 0.1872 | -932.0 | -757.1 | |
| 0.00 | 0.99 | 0.00 | 0.51 | -14.60 | 59.33 | 1.40 | 185.85 | 0.2336 | -608.0 | -577.0 | |
| 0.00 | 1.98 | 0.00 | 1.01 | -14.98 | 59.24 | 1.31 | 185.32 | 0.2398 | -957.0 | -638.6 | |
| 0.63 | 2.44 | 0.32 | 1.23 | -13.36 | 59.20 | 1.27 | 185.88 | 0.2122 | -1219.4 | -953.5 | |
| 0.00 | 1.62 | 0.00 | 0.82 | -12.83 | 59.17 | 1.24 | 185.99 | 0.2031 | -962.0 | -801.6 | |
| 0.00 | 1.08 | 0.00 | 0.55 | -12.80 | 59.01 | 1.08 | 185.26 | 0.2023 | -866.0 | -695.8 | |
| 0.00 | 2.08 | 0.00 | 1.05 | -12.58 | 58.73 | 0.80 | 183.98 | 0.1982 | -1005.0 | -851.8 | |
| 0.00 | 1.26 | 0.00 | 0.64 | -12.58 | 57.99 | 0.06 | 180.28 | 0.1977 | -791.0 | -614.4 | |
| 0.00 | 1.17 | 0.00 | 0.59 | -13.14 | 57.74 | -0.19 | 179.09 | 0.2073 | -716.0 | -471.5 | |
| 4.87 | 10.83 | 2.47 | 5.50 | -13.98 | 57.67 | -0.26 | 178.87 | 0.2217 | -1155.6 | -904.7 | |
| 0.00 | 1.62 | 0.00 | 0.82 | -12.58 | 57.55 | -0.38 | 178.12 | 0.1978 | -958.0 | -737.2 | |
| 2.26 | -44.00 | 1.15 | -44.00 | -13.98 | 57.49 | -0.44 | 178.04 | 0.2218 | -1008.1 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
