SDO HMI 2014-05-27 11:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 28.15 | 130.54 | 16.70 | 77.55 | -8.81 | 25.07 | -32.86 | 104.18 | 0.5549 | 782.3 | 413.2 | |
|
previous
or next observation for the same group /

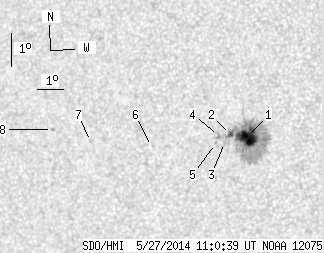

back to the solar disc SDO HMI 2014-05-27 11:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 25.98 | 120.72 | 15.41 | 71.52 | -8.81 | 25.32 | -32.61 | 104.26 | 0.5515 | 1086.0 | 444.4 | |
| 2.17 | -1.00 | 1.29 | -1.00 | -8.74 | 24.71 | -33.22 | 103.92 | 0.5600 | 784.6 | 999999 | |
| 0.00 | 1.71 | 0.00 | 1.03 | -8.99 | 24.46 | -33.47 | 104.27 | 0.5642 | 150.0 | 175.4 | |
| 0.00 | 4.06 | 0.00 | 2.44 | -8.77 | 24.26 | -33.67 | 103.82 | 0.5664 | 572.0 | 453.8 | |
| 0.00 | 1.17 | 0.00 | 0.71 | -9.01 | 24.13 | -33.80 | 104.20 | 0.5690 | 71.0 | 91.9 | |
| 0.00 | 0.54 | 0.00 | 0.34 | -9.07 | 21.71 | -36.22 | 103.55 | 0.6024 | 642.0 | 613.0 | |
| 0.00 | 1.17 | 0.00 | 0.75 | -8.89 | 19.36 | -38.57 | 102.62 | 0.6334 | -733.0 | -469.5 | |
| 0.00 | 1.17 | 0.00 | 0.76 | -8.50 | 17.90 | -40.03 | 101.68 | 0.6519 | -690.0 | -559.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
