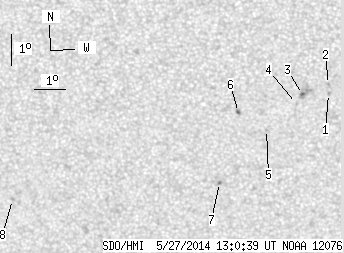

SDO HMI 2014-05-27 13:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.90 | 15.86 | 0.48 | 8.36 | -19.78 | 50.16 | -6.67 | 161.71 | 0.3398 | 370.0 | 461.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-05-27 13:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.44 | 0.00 | 0.75 | -19.00 | 52.45 | -4.38 | 166.69 | 0.3152 | 850.0 | 663.6 | |
| 0.00 | 1.26 | 0.00 | 0.66 | -18.71 | 52.45 | -4.38 | 166.48 | 0.3105 | 869.0 | 677.6 | |
| 0.45 | 6.86 | 0.24 | 3.58 | -19.03 | 51.61 | -5.22 | 164.29 | 0.3192 | 1091.0 | 817.5 | |
| 0.00 | 0.54 | 0.00 | 0.28 | -19.32 | 51.40 | -5.43 | 163.97 | 0.3247 | 604.0 | 439.7 | |
| 0.00 | 0.81 | 0.00 | 0.43 | -20.15 | 50.40 | -6.43 | 162.04 | 0.3426 | 726.0 | 663.1 | |
| 0.45 | 1.71 | 0.24 | 0.90 | -19.60 | 49.51 | -7.32 | 159.17 | 0.3389 | -1004.2 | -852.6 | |
| 0.00 | 1.71 | 0.00 | 0.92 | -21.85 | 48.77 | -8.06 | 159.74 | 0.3774 | 866.0 | 767.2 | |
| 0.00 | 1.53 | 0.00 | 0.84 | -22.37 | 41.80 | -15.04 | 146.43 | 0.4356 | -885.0 | -690.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
