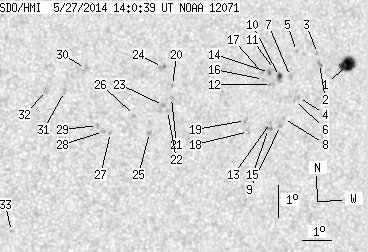

SDO HMI 2014-05-27 14:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 17.04 | 79.33 | 9.84 | 44.60 | -10.60 | 82.79 | 26.51 | 249.05 | 0.4710 | 256.5 | 92.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-05-27 14:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 15.15 | 18.58 | 8.77 | 10.75 | -9.83 | 86.31 | 30.03 | 252.82 | 0.5182 | 986.2 | 629.6 | |
| 0.00 | 2.71 | 0.00 | 1.55 | -9.81 | 85.31 | 29.03 | 252.38 | 0.5038 | 904.0 | 733.8 | |
| 0.00 | 1.53 | 0.00 | 0.88 | -9.50 | 85.21 | 28.93 | 252.92 | 0.5012 | 965.0 | 675.8 | |
| 0.00 | 1.53 | 0.00 | 0.88 | -10.86 | 84.68 | 28.40 | 250.01 | 0.4990 | 617.0 | 528.2 | |
| 0.00 | 1.08 | 0.00 | 0.61 | -9.44 | 84.47 | 28.19 | 252.66 | 0.4902 | -667.0 | -440.4 | |
| 0.00 | 1.26 | 0.00 | 0.72 | -10.95 | 84.55 | 28.27 | 249.75 | 0.4975 | 560.0 | 511.9 | |
| 0.00 | 2.44 | 0.00 | 1.38 | -10.21 | 84.33 | 28.05 | 251.07 | 0.4913 | 711.0 | 544.0 | |
| 0.00 | 1.08 | 0.00 | 0.62 | -11.51 | 84.22 | 27.94 | 248.48 | 0.4955 | 715.0 | 566.5 | |
| 0.00 | 1.80 | 0.00 | 1.03 | -11.73 | 84.14 | 27.86 | 248.01 | 0.4954 | 702.0 | 514.5 | |
| 1.89 | 4.87 | 1.07 | 2.76 | -10.22 | 83.95 | 27.67 | 250.84 | 0.4857 | 922.1 | 683.7 | |
| 0.00 | 1.08 | 0.00 | 0.61 | -10.00 | 83.75 | 27.47 | 251.16 | 0.4820 | 796.0 | 619.2 | |
| 0.00 | 2.44 | 0.00 | 1.38 | -10.47 | 83.69 | 27.41 | 250.20 | 0.4831 | 754.0 | 656.3 | |
| 0.00 | 0.99 | 0.00 | 0.56 | -11.64 | 83.78 | 27.50 | 247.95 | 0.4898 | 753.0 | 649.9 | |
| 0.00 | 2.16 | 0.00 | 1.22 | -10.10 | 83.59 | 27.31 | 250.88 | 0.4800 | 999.0 | 811.0 | |
| 0.00 | 3.07 | 0.00 | 1.74 | -11.82 | 83.72 | 27.45 | 247.56 | 0.4900 | 752.0 | 591.5 | |
| 0.00 | 0.99 | 0.00 | 0.56 | -10.31 | 83.40 | 27.12 | 250.33 | 0.4782 | 748.0 | 647.5 | |
| 0.00 | 1.44 | 0.00 | 0.81 | -10.10 | 83.35 | 27.07 | 250.73 | 0.4765 | 770.0 | 593.2 | |
| 0.00 | 2.35 | 0.00 | 1.32 | -11.92 | 83.04 | 26.76 | 246.90 | 0.4808 | 623.0 | 606.7 | |
| 0.00 | 2.07 | 0.00 | 1.17 | -11.58 | 82.90 | 26.62 | 247.47 | 0.4771 | 724.0 | 595.9 | |
| 0.00 | 1.53 | 0.00 | 0.84 | -10.52 | 80.30 | 24.02 | 247.79 | 0.4341 | -784.0 | -601.2 | |
| 0.00 | 0.90 | 0.00 | 0.50 | -10.89 | 80.30 | 24.02 | 246.98 | 0.4360 | -399.0 | -315.8 | |
| 0.00 | 0.99 | 0.00 | 0.55 | -11.29 | 80.19 | 23.92 | 246.04 | 0.4368 | -625.0 | -563.0 | |
| 0.00 | 1.71 | 0.00 | 0.94 | -11.14 | 80.05 | 23.77 | 246.24 | 0.4338 | -805.0 | -682.5 | |
| 0.00 | 3.52 | 0.00 | 1.92 | -9.97 | 79.92 | 23.64 | 248.71 | 0.4256 | -807.0 | -779.6 | |
| 0.00 | 2.07 | 0.00 | 1.14 | -11.98 | 79.65 | 23.37 | 244.11 | 0.4331 | -889.0 | -682.4 | |
| 0.00 | 1.35 | 0.00 | 0.74 | -11.46 | 79.09 | 22.81 | 244.74 | 0.4220 | -822.0 | -676.0 | |
| 0.00 | 1.26 | 0.00 | 0.69 | -11.99 | 78.33 | 22.05 | 242.86 | 0.4145 | -702.0 | -539.2 | |
| 0.00 | 1.35 | 0.00 | 0.73 | -11.96 | 78.10 | 21.82 | 242.69 | 0.4109 | -789.0 | -695.5 | |
| 0.00 | 1.17 | 0.00 | 0.64 | -11.77 | 77.88 | 21.60 | 242.88 | 0.4066 | -842.0 | -723.5 | |
| 0.00 | 4.06 | 0.00 | 2.18 | -10.02 | 77.35 | 21.07 | 246.44 | 0.3879 | -801.0 | -627.7 | |
| 0.00 | 2.07 | 0.00 | 1.11 | -10.73 | 76.71 | 20.43 | 244.10 | 0.3828 | -746.0 | -649.1 | |
| 0.00 | 2.71 | 0.00 | 1.44 | -10.70 | 76.11 | 19.83 | 243.53 | 0.3740 | -778.0 | -618.3 | |
| 0.00 | 1.17 | 0.00 | 0.63 | -15.08 | 75.30 | 19.02 | 232.59 | 0.3979 | -798.0 | -615.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
