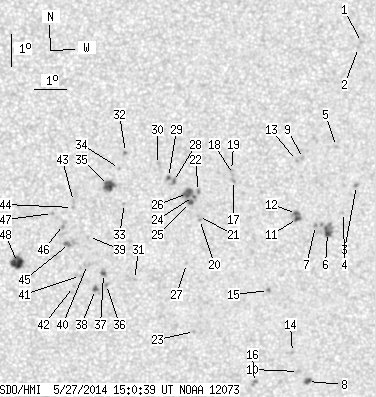

SDO HMI 2014-05-27 15:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 35.24 | 133.33 | 18.00 | 68.16 | -13.10 | 62.67 | 6.94 | 208.88 | 0.2440 | 70.2 | 64.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-05-27 15:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.53 | 0.00 | 0.78 | -7.24 | 68.16 | 12.44 | 243.74 | 0.2393 | -922.0 | -600.9 | |
| 0.00 | 0.72 | 0.00 | 0.37 | -7.40 | 68.07 | 12.35 | 243.00 | 0.2391 | -788.0 | -531.4 | |
| 0.00 | 2.07 | 0.00 | 1.07 | -11.63 | 68.16 | 12.43 | 229.33 | 0.2793 | 1049.0 | 781.0 | |
| 0.00 | 0.45 | 0.00 | 0.23 | -12.47 | 67.79 | 12.06 | 226.22 | 0.2838 | 713.0 | 532.2 | |
| 0.00 | 1.62 | 0.00 | 0.83 | -10.43 | 67.48 | 11.75 | 231.30 | 0.2578 | 922.0 | 668.7 | |
| 4.42 | 12.90 | 2.28 | 6.66 | -13.09 | 67.31 | 11.58 | 223.49 | 0.2853 | 1057.7 | 761.1 | |
| 0.00 | 1.35 | 0.00 | 0.70 | -12.87 | 66.92 | 11.19 | 223.07 | 0.2782 | 1039.0 | 909.9 | |
| 1.98 | 3.61 | 1.05 | 1.90 | -17.76 | 66.92 | 11.19 | 212.96 | 0.3412 | 1022.9 | 868.8 | |
| 0.00 | 0.99 | 0.00 | 0.51 | -10.80 | 66.45 | 10.73 | 227.62 | 0.2486 | 943.0 | 766.7 | |
| 0.00 | 2.44 | 0.00 | 1.28 | -17.44 | 66.61 | 10.88 | 212.77 | 0.3341 | 906.0 | 673.3 | |
| 1.98 | 7.85 | 1.02 | 4.03 | -12.66 | 66.34 | 10.61 | 222.12 | 0.2690 | 1095.9 | 882.4 | |
| 1.26 | -11.00 | 0.65 | -11.00 | -12.50 | 66.30 | 10.57 | 222.42 | 0.2667 | 1151.9 | 999999 | |
| 0.00 | 1.35 | 0.00 | 0.69 | -10.87 | 66.24 | 10.51 | 226.85 | 0.2466 | 951.0 | 786.1 | |
| 0.00 | 1.08 | 0.00 | 0.57 | -16.84 | 66.38 | 10.65 | 213.26 | 0.3239 | 925.0 | 725.5 | |
| 0.00 | 1.53 | 0.00 | 0.79 | -14.90 | 65.51 | 9.78 | 214.74 | 0.2894 | 993.0 | 863.2 | |
| 0.00 | 3.07 | 0.00 | 1.61 | -17.80 | 65.20 | 9.47 | 208.76 | 0.3272 | -1140.0 | -838.6 | |
| 0.00 | 1.89 | 0.00 | 0.96 | -11.49 | 64.28 | 8.55 | 219.23 | 0.2314 | 886.0 | 776.5 | |
| 0.00 | 0.45 | 0.00 | 0.23 | -11.30 | 64.27 | 8.55 | 219.74 | 0.2290 | 957.0 | 817.2 | |
| 0.00 | 1.08 | 0.00 | 0.55 | -11.18 | 64.21 | 8.48 | 219.88 | 0.2267 | 958.0 | 779.6 | |
| 0.00 | 1.26 | 0.00 | 0.64 | -12.69 | 63.25 | 7.52 | 212.67 | 0.2376 | 722.0 | 660.6 | |
| 0.00 | 1.26 | 0.00 | 0.64 | -12.60 | 63.21 | 7.49 | 212.77 | 0.2360 | 815.0 | 588.4 | |
| 0.00 | 1.98 | 0.00 | 1.01 | -11.83 | 63.19 | 7.46 | 214.61 | 0.2249 | 1051.0 | 821.0 | |
| 0.00 | 1.35 | 0.00 | 0.70 | -16.19 | 63.20 | 7.48 | 205.80 | 0.2884 | 834.0 | 682.1 | |
| 0.36 | 15.33 | 0.18 | 7.79 | -11.98 | 63.04 | 7.31 | 213.67 | 0.2256 | 1057.5 | 822.8 | |
| 1.53 | -24.00 | 0.78 | -24.00 | -12.17 | 62.95 | 7.22 | 212.89 | 0.2274 | 965.4 | 999999 | |
| 4.69 | -24.00 | 2.38 | -24.00 | -11.89 | 62.85 | 7.12 | 213.21 | 0.2225 | 1157.6 | 999999 | |
| 0.00 | 1.17 | 0.00 | 0.60 | -14.06 | 62.88 | 7.15 | 208.50 | 0.2542 | -871.0 | -636.4 | |
| 0.54 | 6.22 | 0.27 | 3.15 | -11.52 | 62.40 | 6.68 | 212.48 | 0.2131 | 1136.8 | 847.9 | |
| 0.63 | -28.00 | 0.32 | -28.00 | -11.40 | 62.25 | 6.52 | 212.18 | 0.2099 | 1070.4 | 999999 | |
| 0.00 | 0.63 | 0.00 | 0.32 | -11.00 | 61.89 | 6.17 | 211.82 | 0.2009 | 724.0 | 597.0 | |
| 0.00 | 1.26 | 0.00 | 0.65 | -14.56 | 61.25 | 5.53 | 201.98 | 0.2501 | -864.0 | -663.3 | |
| 0.00 | 1.26 | 0.00 | 0.64 | -10.63 | 60.89 | 5.17 | 208.42 | 0.1868 | -929.0 | -817.9 | |
| 0.00 | 0.99 | 0.00 | 0.50 | -12.20 | 60.89 | 5.16 | 204.77 | 0.2108 | 750.0 | 552.1 | |
| 0.00 | 0.99 | 0.00 | 0.50 | -11.12 | 60.72 | 4.99 | 206.38 | 0.1929 | -868.0 | -708.4 | |
| 6.22 | 10.55 | 3.15 | 5.33 | -11.65 | 60.38 | 4.65 | 203.70 | 0.1986 | -1044.8 | -734.3 | |
| 0.00 | 1.71 | 0.00 | 0.88 | -14.72 | 60.37 | 4.65 | 198.55 | 0.2474 | -919.0 | -731.8 | |
| 0.99 | 4.15 | 0.51 | 2.12 | -14.38 | 60.27 | 4.55 | 198.63 | 0.2413 | -1115.5 | -799.1 | |
| 1.08 | 3.97 | 0.55 | 2.03 | -14.87 | 60.03 | 4.30 | 197.07 | 0.2481 | -1073.4 | -833.2 | |
| 0.00 | 0.99 | 0.00 | 0.50 | -13.22 | 59.78 | 4.06 | 198.31 | 0.2201 | -778.0 | -550.0 | |
| 0.00 | 3.88 | 0.00 | 1.98 | -14.09 | 59.77 | 4.04 | 197.04 | 0.2342 | -597.0 | -725.7 | |
| 0.00 | 1.08 | 0.00 | 0.55 | -14.44 | 59.55 | 3.82 | 195.77 | 0.2387 | -987.0 | -862.3 | |
| 0.00 | 1.08 | 0.00 | 0.55 | -14.78 | 59.34 | 3.61 | 194.55 | 0.2434 | -907.0 | -756.2 | |
| 0.00 | 1.35 | 0.00 | 0.68 | -12.14 | 59.30 | 3.57 | 197.82 | 0.1999 | -926.0 | -732.7 | |
| 0.00 | 1.35 | 0.00 | 0.68 | -12.33 | 59.27 | 3.54 | 197.40 | 0.2028 | -800.0 | -645.1 | |
| 0.00 | 6.04 | 0.00 | 3.07 | -13.44 | 59.19 | 3.46 | 195.51 | 0.2207 | -1240.0 | -922.5 | |
| 0.00 | 3.61 | 0.00 | 1.83 | -12.85 | 59.00 | 3.27 | 195.41 | 0.2101 | -992.0 | -791.2 | |
| 0.00 | 0.99 | 0.00 | 0.50 | -12.51 | 58.65 | 2.92 | 194.26 | 0.2030 | -950.0 | -804.6 | |
| 9.56 | 12.90 | 4.86 | 6.56 | -14.03 | 57.57 | 1.84 | 188.01 | 0.2250 | -1079.2 | -623.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
