SDO HMI 2014-05-27 16:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 29.73 | 0.00 | 15.68 | -19.74 | 49.54 | -5.63 | 164.89 | 0.3358 | 444.5 | 383.6 | |
|
previous
or next observation for the same group /

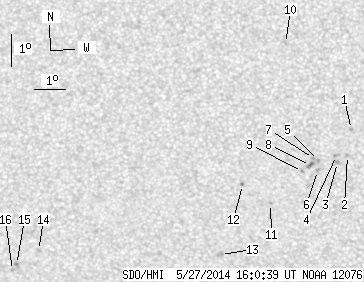

back to the solar disc SDO HMI 2014-05-27 16:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.44 | 0.00 | 0.75 | -17.86 | 53.09 | -2.08 | 173.11 | 0.2897 | 939.0 | 769.9 | |
| 0.00 | 1.62 | 0.00 | 0.84 | -18.68 | 52.95 | -2.22 | 173.02 | 0.3037 | 800.0 | 633.7 | |
| 0.00 | 2.16 | 0.00 | 1.13 | -18.90 | 52.63 | -2.55 | 172.12 | 0.3081 | 906.0 | 758.6 | |
| 0.00 | 2.07 | 0.00 | 1.08 | -18.68 | 52.60 | -2.58 | 171.93 | 0.3045 | 920.0 | 751.9 | |
| 0.00 | 1.17 | 0.00 | 0.61 | -18.84 | 52.02 | -3.16 | 170.23 | 0.3086 | 1073.0 | 897.1 | |
| 0.00 | 1.44 | 0.00 | 0.75 | -19.16 | 51.98 | -3.20 | 170.30 | 0.3139 | 799.0 | 631.9 | |
| 0.00 | 1.53 | 0.00 | 0.80 | -18.78 | 51.86 | -3.32 | 169.71 | 0.3080 | 1006.0 | 864.9 | |
| 0.00 | 3.34 | 0.00 | 1.74 | -19.00 | 51.76 | -3.42 | 169.54 | 0.3119 | 1083.0 | 963.8 | |
| 0.00 | 1.35 | 0.00 | 0.71 | -19.19 | 51.49 | -3.68 | 168.89 | 0.3159 | 831.0 | 686.3 | |
| 0.00 | 1.53 | 0.00 | 0.78 | -15.14 | 51.04 | -4.13 | 163.89 | 0.2517 | 614.0 | 374.6 | |
| 0.00 | 1.17 | 0.00 | 0.62 | -20.21 | 50.43 | -4.74 | 166.59 | 0.3361 | 956.0 | 704.5 | |
| 0.00 | 1.44 | 0.00 | 0.76 | -19.60 | 49.54 | -5.63 | 163.67 | 0.3301 | -1018.0 | -824.8 | |
| 0.00 | 3.70 | 0.00 | 1.97 | -21.85 | 48.73 | -6.44 | 163.55 | 0.3692 | 806.0 | 681.2 | |
| 0.00 | 2.71 | 0.00 | 1.47 | -21.70 | 42.71 | -12.47 | 150.20 | 0.4054 | -810.0 | -565.3 | |
| 0.00 | 1.98 | 0.00 | 1.08 | -22.15 | 41.92 | -13.25 | 149.32 | 0.4177 | -961.0 | -814.6 | |
| 0.00 | 1.08 | 0.00 | 0.59 | -22.34 | 41.77 | -13.40 | 149.29 | 0.4216 | -832.0 | -636.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
