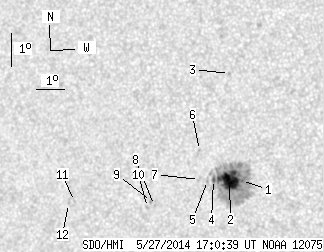

SDO HMI 2014-05-27 17:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 29.67 | 150.32 | 16.99 | 86.23 | -8.84 | 25.13 | -29.49 | 105.56 | 0.5068 | 852.3 | 406.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-05-27 17:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.90 | 138.98 | 0.51 | 79.56 | -8.84 | 25.75 | -28.87 | 105.84 | 0.4980 | 1138.5 | 412.8 | |
| 27.69 | -1.00 | 15.86 | -1.00 | -8.84 | 25.32 | -29.30 | 105.64 | 0.5041 | 1120.9 | 999999 | |
| 0.00 | 0.81 | 0.00 | 0.46 | -5.57 | 25.56 | -29.06 | 99.24 | 0.4917 | 717.0 | 615.6 | |
| 1.08 | -1.00 | 0.62 | -1.00 | -8.80 | 24.76 | -29.86 | 105.32 | 0.5122 | 695.3 | 999999 | |
| 0.00 | 1.98 | 0.00 | 1.15 | -8.83 | 24.55 | -30.08 | 105.29 | 0.5154 | 638.0 | 481.2 | |
| 0.00 | 1.35 | 0.00 | 0.78 | -7.91 | 24.34 | -30.28 | 103.45 | 0.5155 | 709.0 | 553.3 | |
| 0.00 | 1.71 | 0.00 | 0.99 | -8.80 | 24.26 | -30.36 | 105.11 | 0.5194 | 554.0 | 481.3 | |
| 0.00 | 0.90 | 0.00 | 0.53 | -9.58 | 22.56 | -32.06 | 105.85 | 0.5461 | 851.0 | 725.1 | |
| 0.00 | 1.17 | 0.00 | 0.69 | -9.45 | 22.47 | -32.15 | 105.59 | 0.5471 | 815.0 | 755.5 | |
| 0.00 | 1.35 | 0.00 | 0.80 | -9.63 | 22.30 | -32.32 | 105.85 | 0.5500 | 417.0 | 363.1 | |
| 0.00 | 1.17 | 0.00 | 0.72 | -9.42 | 19.62 | -35.00 | 104.51 | 0.5867 | -770.0 | -567.8 | |
| 0.00 | 0.90 | 0.00 | 0.55 | -9.47 | 19.39 | -35.23 | 104.53 | 0.5900 | -567.0 | -457.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
