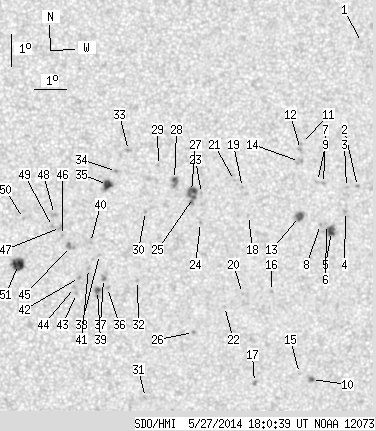

SDO HMI 2014-05-27 18:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 31.20 | 126.27 | 15.97 | 64.80 | -13.10 | 62.44 | 8.37 | 213.66 | 0.2567 | 48.5 | 43.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-05-27 18:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.81 | 0.00 | 0.42 | -7.23 | 68.14 | 14.07 | 246.39 | 0.2644 | -853.0 | -631.6 | |
| 0.00 | 1.53 | 0.00 | 0.80 | -11.65 | 68.19 | 14.12 | 232.75 | 0.3016 | 886.0 | 725.8 | |
| 0.00 | 0.99 | 0.00 | 0.51 | -11.68 | 67.84 | 13.77 | 231.99 | 0.2972 | 873.0 | 712.5 | |
| 0.00 | 1.53 | 0.00 | 0.80 | -12.42 | 67.84 | 13.78 | 230.03 | 0.3048 | 925.0 | 713.7 | |
| 4.42 | 6.94 | 2.30 | 3.61 | -13.04 | 67.43 | 13.36 | 227.61 | 0.3062 | 993.1 | 793.2 | |
| 0.00 | 1.53 | 0.00 | 0.80 | -12.83 | 67.26 | 13.19 | 227.79 | 0.3018 | 830.0 | 744.8 | |
| 0.00 | 1.35 | 0.00 | 0.70 | -11.56 | 67.10 | 13.03 | 230.81 | 0.2863 | 831.0 | 650.4 | |
| 0.00 | 0.99 | 0.00 | 0.51 | -12.83 | 67.07 | 13.00 | 227.38 | 0.2994 | 989.0 | 824.9 | |
| 0.00 | 1.08 | 0.00 | 0.56 | -11.50 | 66.91 | 12.84 | 230.57 | 0.2832 | 557.0 | 462.6 | |
| 0.72 | 3.07 | 0.38 | 1.63 | -17.68 | 67.08 | 13.01 | 217.06 | 0.3574 | 1059.4 | 835.9 | |
| 0.00 | 0.99 | 0.00 | 0.51 | -10.33 | 66.35 | 12.28 | 232.80 | 0.2640 | 921.0 | 663.9 | |
| 0.00 | 2.16 | 0.00 | 1.11 | -10.51 | 66.33 | 12.26 | 232.18 | 0.2655 | 1101.0 | 860.6 | |
| 3.52 | 5.50 | 1.82 | 2.85 | -12.58 | 66.38 | 12.32 | 226.50 | 0.2883 | 1167.6 | 924.9 | |
| 0.00 | 4.69 | 0.00 | 2.41 | -10.88 | 66.31 | 12.24 | 231.03 | 0.2690 | 824.0 | 718.4 | |
| 0.00 | 0.81 | 0.00 | 0.43 | -17.49 | 66.67 | 12.61 | 216.55 | 0.3511 | 843.0 | 708.2 | |
| 0.00 | 1.08 | 0.00 | 0.56 | -14.92 | 65.61 | 11.54 | 219.17 | 0.3075 | 891.0 | 748.9 | |
| 0.00 | 2.25 | 0.00 | 1.19 | -17.78 | 65.22 | 11.16 | 212.84 | 0.3413 | -1089.0 | -801.7 | |
| 0.00 | 1.08 | 0.00 | 0.56 | -12.55 | 64.76 | 10.70 | 222.60 | 0.2689 | 845.0 | 639.0 | |
| 0.00 | 1.17 | 0.00 | 0.60 | -11.69 | 64.54 | 10.47 | 224.34 | 0.2559 | 753.0 | 555.5 | |
| 0.00 | 0.99 | 0.00 | 0.51 | -14.98 | 64.68 | 10.62 | 216.75 | 0.2988 | 777.0 | 592.7 | |
| 0.00 | 0.99 | 0.00 | 0.51 | -11.47 | 64.28 | 10.21 | 224.24 | 0.2502 | 970.0 | 756.9 | |
| 0.00 | 1.08 | 0.00 | 0.56 | -15.39 | 64.13 | 10.06 | 214.48 | 0.2988 | 732.0 | 647.1 | |
| 0.00 | 1.08 | 0.00 | 0.55 | -11.88 | 63.26 | 9.19 | 220.14 | 0.2435 | 870.0 | 655.6 | |
| 0.00 | 1.08 | 0.00 | 0.55 | -12.77 | 63.25 | 9.19 | 217.81 | 0.2552 | 725.0 | 538.3 | |
| 0.90 | 12.54 | 0.46 | 6.40 | -12.00 | 63.01 | 8.94 | 219.05 | 0.2424 | 1038.9 | 858.4 | |
| 0.00 | 1.35 | 0.00 | 0.70 | -16.21 | 63.17 | 9.11 | 210.40 | 0.3016 | 825.0 | 706.4 | |
| 4.06 | -25.00 | 2.07 | -25.00 | -11.82 | 62.94 | 8.87 | 219.33 | 0.2393 | 1143.3 | 999999 | |
| 1.08 | 4.96 | 0.55 | 2.52 | -11.45 | 62.40 | 8.33 | 218.60 | 0.2286 | 1132.4 | 980.5 | |
| 0.00 | 1.17 | 0.00 | 0.59 | -11.02 | 61.88 | 7.82 | 218.07 | 0.2175 | 981.0 | 760.4 | |
| 0.00 | 1.26 | 0.00 | 0.64 | -12.44 | 61.51 | 7.45 | 213.02 | 0.2334 | 686.0 | 607.6 | |
| 0.00 | 1.80 | 0.00 | 0.94 | -18.27 | 61.72 | 7.66 | 203.32 | 0.3209 | 562.0 | 491.9 | |
| 0.00 | 0.99 | 0.00 | 0.51 | -14.58 | 61.33 | 7.26 | 207.86 | 0.2629 | -869.0 | -711.5 | |
| 0.00 | 2.34 | 0.00 | 1.19 | -10.56 | 60.94 | 6.87 | 215.90 | 0.2015 | -1100.0 | -757.2 | |
| 0.00 | 1.53 | 0.00 | 0.78 | -11.20 | 60.58 | 6.51 | 212.65 | 0.2071 | -943.0 | -751.8 | |
| 5.14 | 8.57 | 2.60 | 4.34 | -11.60 | 60.31 | 6.24 | 210.54 | 0.2105 | -1023.2 | -737.5 | |
| 0.00 | 1.53 | 0.00 | 0.79 | -14.80 | 60.39 | 6.32 | 204.36 | 0.2592 | -866.0 | -696.9 | |
| 0.00 | 2.62 | 0.00 | 1.34 | -14.52 | 60.25 | 6.19 | 204.37 | 0.2540 | -1074.0 | -902.1 | |
| 0.00 | 1.08 | 0.00 | 0.55 | -13.77 | 60.11 | 6.04 | 205.16 | 0.2415 | -746.0 | -600.7 | |
| 1.53 | 5.68 | 0.79 | 2.91 | -14.90 | 60.07 | 6.01 | 203.14 | 0.2585 | -1067.9 | -752.9 | |
| 0.00 | 1.17 | 0.00 | 0.60 | -13.40 | 59.81 | 5.75 | 204.76 | 0.2337 | -912.0 | -693.3 | |
| 0.00 | 1.62 | 0.00 | 0.83 | -14.21 | 59.77 | 5.70 | 203.18 | 0.2459 | -992.0 | -806.3 | |
| 0.00 | 1.17 | 0.00 | 0.60 | -14.49 | 59.49 | 5.43 | 201.73 | 0.2484 | -1007.0 | -818.6 | |
| 0.00 | 1.53 | 0.00 | 0.79 | -14.99 | 59.41 | 5.35 | 200.69 | 0.2558 | -709.0 | -495.2 | |
| 0.00 | 1.62 | 0.00 | 0.83 | -14.80 | 59.34 | 5.28 | 200.72 | 0.2524 | -884.0 | -600.7 | |
| 0.00 | 4.78 | 0.00 | 2.43 | -13.53 | 59.19 | 5.12 | 202.15 | 0.2314 | -1018.0 | -871.1 | |
| 0.00 | 0.90 | 0.00 | 0.46 | -13.18 | 58.93 | 4.87 | 201.71 | 0.2243 | -997.0 | -816.3 | |
| 0.00 | 2.89 | 0.00 | 1.47 | -12.94 | 58.87 | 4.80 | 201.86 | 0.2200 | -1101.0 | -843.5 | |
| 0.00 | 3.07 | 0.00 | 1.55 | -12.53 | 58.67 | 4.61 | 201.76 | 0.2124 | -907.0 | -731.4 | |
| 0.00 | 1.35 | 0.00 | 0.69 | -12.90 | 58.61 | 4.55 | 200.88 | 0.2179 | -824.0 | -679.9 | |
| 0.00 | 0.99 | 0.00 | 0.50 | -12.66 | 57.71 | 3.64 | 197.34 | 0.2088 | -929.0 | -629.1 | |
| 9.83 | 12.99 | 5.00 | 6.61 | -14.09 | 57.57 | 3.50 | 194.90 | 0.2316 | -1068.3 | -756.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
