SDO HMI 2014-05-27 18:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 25.25 | 150.94 | 14.39 | 86.43 | -8.84 | 24.81 | -29.26 | 105.68 | 0.5033 | 721.9 | 398.5 | |
|
previous
or next observation for the same group /

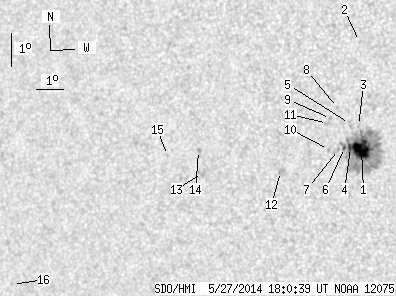

back to the solar disc SDO HMI 2014-05-27 18:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 21.92 | 130.59 | 12.48 | 74.35 | -8.84 | 25.37 | -28.70 | 105.92 | 0.4954 | 1192.4 | 465.3 | |
| 0.00 | 0.63 | 0.00 | 0.36 | -5.54 | 25.53 | -28.53 | 99.33 | 0.4838 | 655.0 | 598.0 | |
| 0.00 | 1.17 | 0.00 | 0.67 | -8.11 | 25.32 | -28.74 | 104.44 | 0.4935 | 510.0 | 393.5 | |
| 2.25 | -1.00 | 1.29 | -1.00 | -8.78 | 24.99 | -29.08 | 105.62 | 0.5007 | 803.3 | 999999 | |
| 0.00 | 1.53 | 0.00 | 0.87 | -8.04 | 25.01 | -29.05 | 104.19 | 0.4979 | 246.0 | 261.6 | |
| 1.08 | -1.00 | 0.62 | -1.00 | -8.77 | 24.78 | -29.29 | 105.52 | 0.5038 | 664.5 | 999999 | |
| 0.00 | 1.35 | 0.00 | 0.78 | -8.83 | 24.56 | -29.51 | 105.54 | 0.5071 | 559.0 | 402.7 | |
| 0.00 | 0.63 | 0.00 | 0.36 | -7.55 | 24.63 | -29.43 | 103.06 | 0.5021 | 698.0 | 608.4 | |
| 0.00 | 1.35 | 0.00 | 0.78 | -7.88 | 24.36 | -29.71 | 103.61 | 0.5071 | 747.0 | 545.6 | |
| 0.00 | 0.99 | 0.00 | 0.57 | -8.83 | 24.21 | -29.86 | 105.38 | 0.5123 | 568.0 | 400.5 | |
| 0.00 | 2.25 | 0.00 | 1.30 | -8.03 | 24.24 | -29.83 | 103.86 | 0.5093 | 687.0 | 584.2 | |
| 0.00 | 2.16 | 0.00 | 1.27 | -9.48 | 22.42 | -31.65 | 105.85 | 0.5400 | 819.0 | 758.5 | |
| 0.00 | 4.60 | 0.00 | 2.79 | -9.48 | 19.55 | -34.52 | 104.78 | 0.5802 | -504.0 | -596.5 | |
| 0.00 | 1.89 | 0.00 | 1.15 | -8.80 | 19.47 | -34.59 | 103.61 | 0.5794 | -685.0 | -607.5 | |
| 0.00 | 0.81 | 0.00 | 0.50 | -8.94 | 18.29 | -35.77 | 103.48 | 0.5961 | -639.0 | -512.2 | |
| 0.00 | 0.99 | 0.00 | 0.68 | -12.83 | 11.46 | -42.60 | 107.40 | 0.6940 | -218.0 | -274.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
