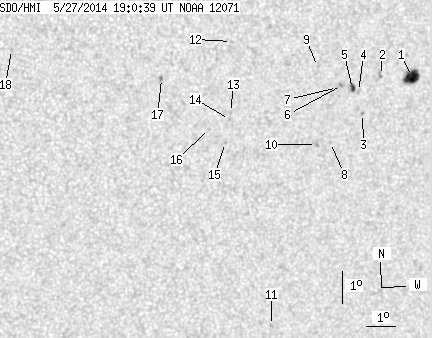

SDO HMI 2014-05-27 19:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 16.51 | 44.72 | 9.81 | 26.13 | -10.40 | 84.19 | 30.68 | 251.90 | 0.5298 | 402.6 | 294.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-05-27 19:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 14.07 | 18.22 | 8.39 | 10.86 | -9.79 | 86.36 | 32.85 | 254.07 | 0.5579 | 937.0 | 578.3 | |
| 0.00 | 3.34 | 0.00 | 1.96 | -9.77 | 85.22 | 31.71 | 253.65 | 0.5419 | 832.0 | 682.4 | |
| 0.00 | 0.90 | 0.00 | 0.53 | -10.94 | 84.70 | 31.19 | 251.30 | 0.5389 | 609.0 | 528.5 | |
| 0.00 | 2.53 | 0.00 | 1.48 | -10.27 | 84.48 | 30.97 | 252.42 | 0.5332 | 474.0 | 376.1 | |
| 2.44 | 3.97 | 1.42 | 2.31 | -10.18 | 84.25 | 30.74 | 252.48 | 0.5297 | 838.2 | 626.2 | |
| 0.00 | 1.80 | 0.00 | 1.05 | -10.09 | 83.85 | 30.34 | 252.46 | 0.5236 | 880.0 | 728.0 | |
| 0.00 | 1.26 | 0.00 | 0.73 | -10.15 | 83.71 | 30.20 | 252.27 | 0.5219 | 748.0 | 572.3 | |
| 0.00 | 0.90 | 0.00 | 0.53 | -11.85 | 83.65 | 30.14 | 249.12 | 0.5280 | 628.0 | 475.5 | |
| 0.00 | 0.90 | 0.00 | 0.52 | -9.51 | 82.94 | 29.43 | 253.11 | 0.5084 | 425.0 | 466.6 | |
| 0.00 | 2.53 | 0.00 | 1.46 | -11.92 | 83.16 | 29.65 | 248.72 | 0.5215 | 755.0 | 544.9 | |
| 0.00 | 1.44 | 0.00 | 0.85 | -17.59 | 82.37 | 28.86 | 238.27 | 0.5430 | 756.0 | 632.0 | |
| 0.00 | 0.81 | 0.00 | 0.45 | -8.77 | 79.88 | 26.37 | 253.05 | 0.4607 | -512.0 | -428.9 | |
| 0.00 | 1.08 | 0.00 | 0.61 | -10.95 | 80.03 | 26.52 | 248.64 | 0.4726 | -726.0 | -684.1 | |
| 0.00 | 0.90 | 0.00 | 0.51 | -11.17 | 80.02 | 26.51 | 248.20 | 0.4735 | -639.0 | -568.9 | |
| 0.00 | 0.90 | 0.00 | 0.51 | -11.88 | 79.95 | 26.44 | 246.73 | 0.4762 | -615.0 | -507.2 | |
| 0.00 | 0.72 | 0.00 | 0.40 | -11.45 | 79.35 | 25.84 | 247.16 | 0.4654 | -740.0 | -655.8 | |
| 0.00 | 1.80 | 0.00 | 0.99 | -9.93 | 77.58 | 24.07 | 249.11 | 0.4318 | -908.0 | -735.8 | |
| 0.00 | 0.72 | 0.00 | 0.38 | -9.07 | 72.56 | 19.04 | 246.84 | 0.3520 | -627.0 | -561.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
