SDO HMI 2014-05-27 20:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 26.89 | 121.32 | 13.78 | 62.48 | -13.19 | 62.56 | 9.60 | 217.00 | 0.2695 | -62.1 | 21.3 | |
|
previous
or next observation for the same group /

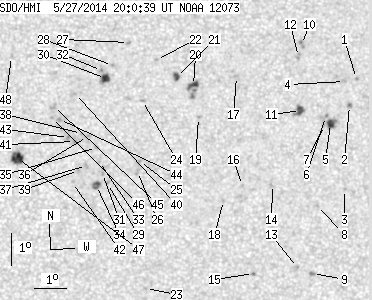

back to the solar disc SDO HMI 2014-05-27 20:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.17 | 0.00 | 0.61 | -11.61 | 68.20 | 15.24 | 234.86 | 0.3163 | 843.0 | 720.7 | |
| 0.00 | 2.16 | 0.00 | 1.13 | -12.44 | 68.02 | 15.06 | 232.38 | 0.3218 | 961.0 | 783.1 | |
| 0.00 | 1.35 | 0.00 | 0.71 | -15.06 | 68.03 | 15.07 | 226.28 | 0.3489 | 664.0 | 517.1 | |
| 0.00 | 1.71 | 0.00 | 0.89 | -11.70 | 67.82 | 14.86 | 233.94 | 0.3120 | 904.0 | 710.6 | |
| 4.15 | 6.67 | 2.17 | 3.49 | -13.00 | 67.44 | 14.49 | 229.92 | 0.3199 | 1024.9 | 759.4 | |
| 0.00 | 2.53 | 0.00 | 1.32 | -12.79 | 67.27 | 14.31 | 230.12 | 0.3155 | 988.0 | 847.1 | |
| 0.00 | 1.89 | 0.00 | 0.99 | -13.07 | 67.25 | 14.30 | 229.40 | 0.3182 | 866.0 | 566.4 | |
| 0.00 | 0.99 | 0.00 | 0.52 | -15.56 | 67.18 | 14.23 | 223.61 | 0.3448 | 767.0 | 678.6 | |
| 0.00 | 2.44 | 0.00 | 1.30 | -17.70 | 67.18 | 14.23 | 219.44 | 0.3701 | 1128.0 | 896.0 | |
| 0.00 | 3.07 | 0.00 | 1.58 | -10.57 | 66.39 | 13.43 | 234.45 | 0.2819 | 1029.0 | 914.1 | |
| 3.61 | 8.03 | 1.87 | 4.17 | -12.60 | 66.45 | 13.50 | 228.98 | 0.3033 | 1094.1 | 739.3 | |
| 0.00 | 2.89 | 0.00 | 1.49 | -10.94 | 66.31 | 13.35 | 233.21 | 0.2844 | 856.0 | 814.7 | |
| 0.00 | 1.26 | 0.00 | 0.67 | -17.52 | 66.67 | 13.72 | 218.78 | 0.3626 | 876.0 | 704.6 | |
| 0.00 | 0.54 | 0.00 | 0.28 | -14.91 | 65.68 | 12.73 | 221.89 | 0.3203 | 551.0 | 613.5 | |
| 0.00 | 1.44 | 0.00 | 0.76 | -17.71 | 65.25 | 12.29 | 215.48 | 0.3510 | -914.0 | -792.6 | |
| 0.00 | 1.26 | 0.00 | 0.66 | -14.94 | 64.72 | 11.77 | 219.63 | 0.3103 | 803.0 | 489.9 | |
| 0.00 | 1.80 | 0.00 | 0.93 | -11.56 | 64.37 | 11.42 | 227.11 | 0.2658 | 830.0 | 633.2 | |
| 0.00 | 1.44 | 0.00 | 0.75 | -15.41 | 64.14 | 11.18 | 217.25 | 0.3102 | 895.0 | 679.4 | |
| 0.00 | 1.44 | 0.00 | 0.74 | -12.83 | 63.22 | 10.26 | 220.72 | 0.2675 | 701.0 | 504.6 | |
| 3.52 | 11.36 | 1.80 | 5.82 | -11.84 | 63.02 | 10.07 | 222.79 | 0.2530 | 1152.0 | 836.7 | |
| 2.44 | 4.33 | 1.24 | 2.21 | -11.56 | 62.48 | 9.52 | 221.99 | 0.2434 | 1148.3 | 889.6 | |
| 0.00 | 0.99 | 0.00 | 0.50 | -11.04 | 61.84 | 8.88 | 221.53 | 0.2295 | 958.0 | 740.6 | |
| 0.00 | 1.44 | 0.00 | 0.76 | -18.19 | 61.77 | 8.81 | 206.46 | 0.3281 | 712.0 | 468.1 | |
| 0.00 | 1.62 | 0.00 | 0.83 | -12.31 | 61.44 | 8.48 | 216.77 | 0.2417 | 868.0 | 696.5 | |
| 0.00 | 1.53 | 0.00 | 0.79 | -14.20 | 61.40 | 8.45 | 212.33 | 0.2676 | -852.0 | -659.0 | |
| 0.00 | 3.07 | 0.00 | 1.58 | -14.51 | 61.35 | 8.40 | 211.54 | 0.2715 | -792.0 | -671.1 | |
| 0.00 | 1.62 | 0.00 | 0.82 | -10.52 | 60.95 | 7.99 | 220.15 | 0.2129 | -945.0 | -800.3 | |
| 0.00 | 1.17 | 0.00 | 0.59 | -11.23 | 60.47 | 7.51 | 216.35 | 0.2173 | -940.0 | -747.2 | |
| 0.00 | 1.35 | 0.00 | 0.70 | -14.89 | 60.42 | 7.46 | 207.92 | 0.2691 | -693.0 | -593.4 | |
| 4.24 | 6.04 | 2.15 | 3.07 | -11.63 | 60.26 | 7.30 | 214.51 | 0.2207 | -1015.5 | -843.6 | |
| 0.00 | 1.71 | 0.00 | 0.88 | -14.58 | 60.25 | 7.29 | 207.96 | 0.2632 | -914.0 | -826.1 | |
| 0.00 | 1.53 | 0.00 | 0.78 | -11.38 | 60.13 | 7.17 | 214.68 | 0.2160 | -1159.0 | -834.1 | |
| 0.00 | 0.81 | 0.00 | 0.42 | -14.20 | 60.14 | 7.19 | 208.31 | 0.2568 | -763.0 | -686.8 | |
| 0.00 | 5.41 | 0.00 | 2.78 | -14.95 | 60.07 | 7.11 | 206.71 | 0.2674 | -955.0 | -855.2 | |
| 0.00 | 2.07 | 0.00 | 1.06 | -13.77 | 60.03 | 7.08 | 208.80 | 0.2495 | -835.0 | -656.1 | |
| 0.00 | 1.62 | 0.00 | 0.83 | -13.43 | 59.74 | 6.78 | 208.48 | 0.2421 | -885.0 | -732.5 | |
| 0.00 | 2.62 | 0.00 | 1.34 | -14.33 | 59.73 | 6.78 | 206.72 | 0.2555 | -987.0 | -774.1 | |
| 0.00 | 1.17 | 0.00 | 0.60 | -13.33 | 59.55 | 6.59 | 207.99 | 0.2391 | -779.0 | -634.5 | |
| 0.00 | 0.99 | 0.00 | 0.51 | -14.48 | 59.49 | 6.53 | 205.60 | 0.2560 | -901.0 | -756.8 | |
| 0.00 | 0.72 | 0.00 | 0.37 | -12.09 | 59.33 | 6.38 | 209.87 | 0.2190 | -756.0 | -632.4 | |
| 0.00 | 1.26 | 0.00 | 0.64 | -13.58 | 59.34 | 6.38 | 206.73 | 0.2412 | -941.0 | -888.0 | |
| 0.00 | 0.72 | 0.00 | 0.37 | -14.86 | 59.31 | 6.35 | 204.36 | 0.2604 | -819.0 | -628.4 | |
| 0.00 | 1.80 | 0.00 | 0.92 | -13.46 | 59.14 | 6.19 | 206.28 | 0.2379 | -1186.0 | -906.2 | |
| 0.00 | 2.34 | 0.00 | 1.19 | -12.90 | 58.85 | 5.89 | 206.27 | 0.2272 | -1076.0 | -828.7 | |
| 0.00 | 3.43 | 0.00 | 1.74 | -12.50 | 58.65 | 5.70 | 206.32 | 0.2195 | -742.0 | -748.8 | |
| 0.00 | 0.99 | 0.00 | 0.50 | -12.84 | 58.63 | 5.67 | 205.54 | 0.2246 | -869.0 | -771.8 | |
| 8.93 | 12.18 | 4.55 | 6.21 | -14.11 | 57.56 | 4.60 | 199.20 | 0.2376 | -1074.2 | -792.9 | |
| 0.00 | 1.35 | 0.00 | 0.68 | -10.95 | 57.32 | 4.36 | 203.80 | 0.1859 | -655.0 | -499.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
