SDO HMI 2014-05-27 23:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 27.61 | 154.88 | 15.39 | 86.29 | -8.85 | 24.96 | -26.33 | 107.19 | 0.4605 | 889.1 | 434.0 | |
|
previous
or next observation for the same group /

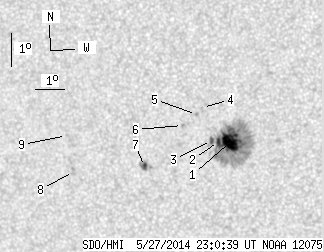

back to the solar disc SDO HMI 2014-05-27 23:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 21.38 | 141.36 | 11.88 | 78.51 | -8.82 | 25.36 | -25.93 | 107.34 | 0.4546 | 1225.8 | 464.5 | |
| 2.26 | -1.00 | 1.26 | -1.00 | -8.82 | 24.95 | -26.34 | 107.10 | 0.4607 | 821.9 | 999999 | |
| 1.71 | -1.00 | 0.96 | -1.00 | -8.78 | 24.71 | -26.58 | 106.90 | 0.4641 | 661.9 | 999999 | |
| 0.00 | 0.63 | 0.00 | 0.35 | -7.77 | 24.48 | -26.81 | 104.65 | 0.4639 | 503.0 | 360.6 | |
| 0.00 | 1.35 | 0.00 | 0.76 | -7.98 | 24.25 | -27.04 | 105.00 | 0.4679 | 782.0 | 614.9 | |
| 0.00 | 1.08 | 0.00 | 0.61 | -8.32 | 23.75 | -27.55 | 105.44 | 0.4766 | 762.0 | 650.4 | |
| 2.26 | 5.68 | 1.29 | 3.25 | -9.56 | 22.31 | -28.98 | 107.22 | 0.5022 | 923.5 | 694.8 | |
| 0.00 | 3.61 | 0.00 | 2.12 | -9.68 | 19.76 | -31.53 | 106.30 | 0.5392 | -586.0 | -512.4 | |
| 0.00 | 1.17 | 0.00 | 0.69 | -8.58 | 19.62 | -31.67 | 104.23 | 0.5377 | -757.0 | -603.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
