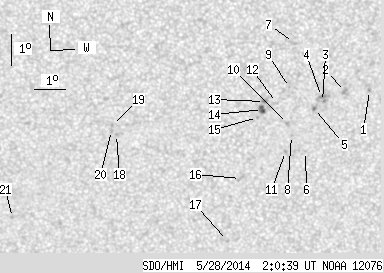

SDO HMI 2014-05-28 02:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.62 | 40.05 | 1.37 | 20.96 | -19.72 | 49.79 | 0.15 | 180.81 | 0.3221 | 202.0 | 282.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-05-28 02:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.99 | 0.00 | 0.52 | -18.86 | 53.09 | 3.45 | 190.62 | 0.3107 | 896.0 | 776.4 | |
| 0.00 | 4.69 | 0.00 | 2.44 | -18.89 | 52.31 | 2.68 | 188.27 | 0.3091 | 972.0 | 795.3 | |
| 0.00 | 1.90 | 0.00 | 0.99 | -19.21 | 51.58 | 1.95 | 185.91 | 0.3129 | 696.0 | 597.5 | |
| 0.00 | 3.52 | 0.00 | 1.83 | -19.05 | 51.55 | 1.91 | 185.86 | 0.3102 | 1131.0 | 900.7 | |
| 0.00 | 1.99 | 0.00 | 1.04 | -19.44 | 51.32 | 1.69 | 185.07 | 0.3162 | 947.0 | 745.2 | |
| 0.00 | 0.81 | 0.00 | 0.43 | -20.82 | 51.04 | 1.41 | 183.92 | 0.3386 | 706.0 | 464.7 | |
| 0.00 | 2.89 | 0.00 | 1.49 | -17.34 | 50.64 | 1.00 | 183.44 | 0.2803 | 457.0 | 529.2 | |
| 0.00 | 0.81 | 0.00 | 0.43 | -20.30 | 50.59 | 0.95 | 182.73 | 0.3297 | 789.0 | 598.6 | |
| 0.00 | 0.72 | 0.00 | 0.38 | -18.77 | 50.52 | 0.88 | 182.76 | 0.3041 | 696.0 | 503.0 | |
| 0.00 | 2.26 | 0.00 | 1.18 | -19.92 | 50.46 | 0.82 | 182.40 | 0.3232 | 1001.0 | 675.7 | |
| 0.00 | 1.44 | 0.00 | 0.76 | -20.82 | 50.39 | 0.76 | 182.11 | 0.3380 | 858.0 | 709.6 | |
| 0.00 | 1.08 | 0.00 | 0.56 | -19.24 | 50.10 | 0.47 | 181.42 | 0.3118 | 234.0 | 301.0 | |
| 0.00 | 2.71 | 0.00 | 1.41 | -19.21 | 49.71 | 0.08 | 180.24 | 0.3112 | -1099.0 | -823.1 | |
| 2.62 | 4.60 | 1.37 | 2.40 | -19.47 | 49.65 | 0.02 | 180.05 | 0.3154 | -966.1 | -719.2 | |
| 0.00 | 0.90 | 0.00 | 0.47 | -19.72 | 49.49 | -0.15 | 179.57 | 0.3197 | -790.0 | -625.1 | |
| 0.00 | 2.62 | 0.00 | 1.38 | -21.69 | 48.93 | -0.71 | 178.13 | 0.3523 | 777.0 | 600.4 | |
| 0.00 | 1.08 | 0.00 | 0.58 | -23.72 | 48.48 | -1.15 | 177.25 | 0.3856 | 757.0 | 621.2 | |
| 0.00 | 0.90 | 0.00 | 0.47 | -20.26 | 44.91 | -4.72 | 166.73 | 0.3377 | -870.0 | -735.9 | |
| 0.00 | 1.17 | 0.00 | 0.62 | -19.97 | 44.79 | -4.84 | 166.19 | 0.3335 | -820.0 | -616.1 | |
| 0.00 | 1.62 | 0.00 | 0.85 | -20.13 | 44.76 | -4.88 | 166.21 | 0.3362 | -948.0 | -721.6 | |
| 0.00 | 1.35 | 0.00 | 0.73 | -22.94 | 41.37 | -8.26 | 160.37 | 0.3958 | -750.0 | -562.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
