SDO HMI 2014-05-28 06:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 15.98 | 100.95 | 8.39 | 53.28 | -13.34 | 63.00 | 15.56 | 230.17 | 0.3417 | 23.6 | 58.1 | |
|
previous
or next observation for the same group /

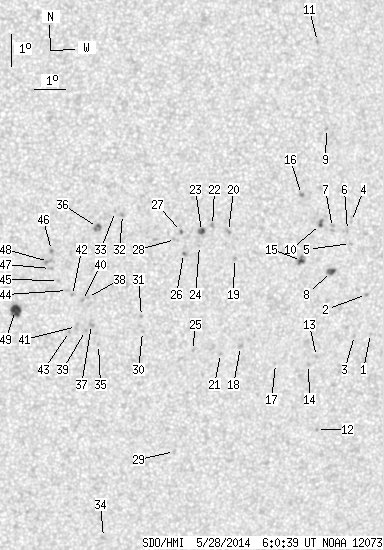

back to the solar disc SDO HMI 2014-05-28 06:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.26 | 0.00 | 0.69 | -14.83 | 69.19 | 21.76 | 236.38 | 0.4321 | 482.0 | 413.9 | |
| 0.00 | 0.99 | 0.00 | 0.54 | -13.62 | 68.94 | 21.50 | 238.59 | 0.4191 | -761.0 | -701.1 | |
| 0.00 | 1.26 | 0.00 | 0.69 | -14.90 | 68.66 | 21.22 | 235.63 | 0.4256 | 563.0 | 432.4 | |
| 0.00 | 1.35 | 0.00 | 0.73 | -11.36 | 68.24 | 20.81 | 242.82 | 0.3932 | 595.0 | 549.1 | |
| 0.00 | 1.26 | 0.00 | 0.68 | -12.04 | 68.26 | 20.83 | 241.29 | 0.3982 | 691.0 | 537.2 | |
| 0.00 | 1.53 | 0.00 | 0.83 | -11.64 | 68.13 | 20.70 | 242.06 | 0.3935 | 755.0 | 565.2 | |
| 0.00 | 2.62 | 0.00 | 1.40 | -11.55 | 67.63 | 20.19 | 241.72 | 0.3857 | 399.0 | 342.8 | |
| 2.80 | 5.15 | 1.51 | 2.77 | -12.91 | 67.70 | 20.27 | 238.70 | 0.3968 | 991.3 | 779.9 | |
| 0.00 | 1.35 | 0.00 | 0.72 | -8.50 | 67.24 | 19.80 | 248.87 | 0.3607 | 768.0 | 636.5 | |
| 0.81 | 3.16 | 0.43 | 1.69 | -11.46 | 67.23 | 19.79 | 241.47 | 0.3793 | 986.9 | 918.2 | |
| 0.00 | 0.99 | 0.00 | 0.52 | -5.85 | 66.83 | 19.39 | 255.84 | 0.3422 | -862.0 | -731.4 | |
| 0.00 | 1.44 | 0.00 | 0.80 | -17.87 | 67.70 | 20.26 | 228.74 | 0.4403 | 576.0 | 495.9 | |
| 0.00 | 1.35 | 0.00 | 0.74 | -15.57 | 67.45 | 20.01 | 232.78 | 0.4157 | 783.0 | 606.1 | |
| 0.00 | 1.53 | 0.00 | 0.83 | -15.82 | 67.20 | 19.77 | 231.96 | 0.4149 | 686.0 | 547.1 | |
| 2.26 | 5.87 | 1.21 | 3.14 | -12.57 | 66.68 | 19.25 | 238.20 | 0.3802 | 1036.6 | 790.9 | |
| 0.00 | 1.90 | 0.00 | 1.01 | -10.54 | 66.54 | 19.10 | 242.93 | 0.3629 | 1033.0 | 898.7 | |
| 0.00 | 0.72 | 0.00 | 0.39 | -15.79 | 66.10 | 18.66 | 230.47 | 0.4009 | 767.0 | 528.0 | |
| 0.00 | 2.53 | 0.00 | 1.35 | -15.26 | 64.89 | 17.45 | 229.74 | 0.3808 | 740.0 | 584.9 | |
| 0.00 | 1.44 | 0.00 | 0.76 | -12.52 | 64.48 | 17.05 | 235.28 | 0.3497 | 884.0 | 699.6 | |
| 0.00 | 2.62 | 0.00 | 1.38 | -11.69 | 64.24 | 16.80 | 236.97 | 0.3390 | 1003.0 | 800.0 | |
| 0.00 | 1.44 | 0.00 | 0.77 | -15.49 | 64.25 | 16.81 | 228.25 | 0.3751 | 641.0 | 522.6 | |
| 0.00 | 2.17 | 0.00 | 1.14 | -11.51 | 63.71 | 16.27 | 236.63 | 0.3302 | 969.0 | 733.0 | |
| 2.17 | 3.88 | 1.14 | 2.03 | -11.69 | 63.36 | 15.93 | 235.60 | 0.3271 | 1114.3 | 890.4 | |
| 0.00 | 0.72 | 0.00 | 0.38 | -12.13 | 63.32 | 15.89 | 234.43 | 0.3305 | 645.0 | 557.1 | |
| 0.00 | 0.72 | 0.00 | 0.38 | -15.40 | 63.32 | 15.88 | 226.88 | 0.3631 | 699.0 | 576.2 | |
| 0.00 | 0.99 | 0.00 | 0.52 | -12.37 | 62.82 | 15.38 | 232.95 | 0.3261 | 888.0 | 783.5 | |
| 0.00 | 1.26 | 0.00 | 0.66 | -11.69 | 62.72 | 15.28 | 234.52 | 0.3183 | 987.0 | 884.4 | |
| 0.00 | 2.62 | 0.00 | 1.37 | -11.94 | 62.54 | 15.10 | 233.56 | 0.3182 | 746.0 | 650.4 | |
| 0.00 | 1.81 | 0.00 | 0.97 | -18.59 | 63.00 | 15.56 | 220.22 | 0.3954 | 682.0 | 539.9 | |
| 0.00 | 0.99 | 0.00 | 0.52 | -14.81 | 61.65 | 14.21 | 225.04 | 0.3369 | -776.0 | -608.5 | |
| 0.00 | 1.08 | 0.00 | 0.57 | -14.34 | 61.59 | 14.15 | 225.96 | 0.3309 | -845.0 | -695.1 | |
| 0.00 | 1.44 | 0.00 | 0.75 | -11.18 | 60.80 | 13.37 | 232.36 | 0.2877 | -787.0 | -683.4 | |
| 0.00 | 0.81 | 0.00 | 0.42 | -11.08 | 60.58 | 13.14 | 232.16 | 0.2838 | -910.0 | -760.3 | |
| 0.00 | 2.62 | 0.00 | 1.42 | -21.36 | 60.88 | 13.45 | 212.03 | 0.4101 | 663.0 | 475.4 | |
| 0.00 | 1.08 | 0.00 | 0.57 | -15.22 | 60.25 | 12.81 | 221.27 | 0.3259 | -903.0 | -687.5 | |
| 0.00 | 5.15 | 0.00 | 2.66 | -11.58 | 60.03 | 12.59 | 229.59 | 0.2817 | -1086.0 | -923.1 | |
| 0.00 | 2.08 | 0.00 | 1.08 | -14.59 | 59.99 | 12.55 | 222.04 | 0.3154 | -969.0 | -797.2 | |
| 0.00 | 1.08 | 0.00 | 0.56 | -13.75 | 59.81 | 12.38 | 223.56 | 0.3034 | -917.0 | -763.6 | |
| 0.00 | 0.99 | 0.00 | 0.52 | -14.78 | 59.81 | 12.37 | 221.22 | 0.3157 | -765.0 | -677.8 | |
| 0.00 | 1.17 | 0.00 | 0.61 | -13.85 | 59.66 | 12.22 | 222.99 | 0.3028 | -975.0 | -845.8 | |
| 0.00 | 3.43 | 0.00 | 1.79 | -14.66 | 59.51 | 12.07 | 220.82 | 0.3109 | -668.0 | -665.8 | |
| 0.00 | 1.35 | 0.00 | 0.70 | -13.69 | 59.33 | 11.89 | 222.59 | 0.2972 | -956.0 | -782.5 | |
| 0.00 | 1.08 | 0.00 | 0.56 | -14.81 | 59.29 | 11.86 | 219.98 | 0.3105 | -610.0 | -559.5 | |
| 0.00 | 1.72 | 0.00 | 0.89 | -13.54 | 59.16 | 11.73 | 222.56 | 0.2934 | -1078.0 | -749.0 | |
| 0.00 | 1.35 | 0.00 | 0.70 | -13.23 | 58.86 | 11.42 | 222.58 | 0.2863 | -687.0 | -531.1 | |
| 0.00 | 1.53 | 0.00 | 0.79 | -12.30 | 58.60 | 11.16 | 224.28 | 0.2721 | -1006.0 | -858.8 | |
| 0.00 | 2.08 | 0.00 | 1.07 | -12.85 | 58.59 | 11.15 | 222.82 | 0.2787 | -923.0 | -642.4 | |
| 0.00 | 2.89 | 0.00 | 1.49 | -12.64 | 58.52 | 11.08 | 223.19 | 0.2752 | -978.0 | -831.9 | |
| 7.94 | 11.10 | 4.10 | 5.73 | -14.16 | 57.54 | 10.10 | 216.98 | 0.2839 | -1062.9 | -737.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
