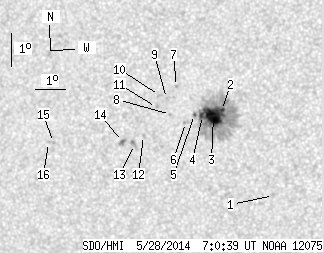

SDO HMI 2014-05-28 07:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 32.50 | 167.52 | 17.47 | 90.17 | -8.87 | 25.05 | -21.84 | 110.35 | 0.3937 | 906.6 | 431.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-05-28 07:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.44 | 0.00 | 0.77 | -11.31 | 27.16 | -19.73 | 118.26 | 0.3774 | 547.0 | 496.9 | |
| 2.17 | 147.95 | 1.16 | 79.45 | -8.68 | 25.62 | -21.27 | 110.33 | 0.3840 | 1328.9 | 418.7 | |
| 26.00 | -2.00 | 13.97 | -2.00 | -8.83 | 25.35 | -21.54 | 110.48 | 0.3889 | 1239.4 | 999999 | |
| 3.07 | -2.00 | 1.65 | -2.00 | -8.83 | 24.99 | -21.90 | 110.18 | 0.3944 | 835.8 | 999999 | |
| 0.63 | -2.00 | 0.34 | -2.00 | -8.80 | 24.72 | -22.17 | 109.89 | 0.3982 | 760.6 | 999999 | |
| 0.00 | 2.08 | 0.00 | 1.12 | -9.04 | 24.41 | -22.48 | 110.23 | 0.4042 | 578.0 | 513.8 | |
| 0.00 | 0.99 | 0.00 | 0.54 | -7.94 | 24.18 | -22.71 | 107.43 | 0.4025 | 796.0 | 602.7 | |
| 0.00 | 1.17 | 0.00 | 0.64 | -8.79 | 23.92 | -22.97 | 109.28 | 0.4102 | 645.0 | 499.0 | |
| 0.00 | 0.72 | 0.00 | 0.39 | -8.30 | 23.82 | -23.07 | 108.06 | 0.4095 | 863.0 | 686.4 | |
| 0.00 | 2.35 | 0.00 | 1.28 | -8.21 | 23.59 | -23.30 | 107.69 | 0.4126 | 679.0 | 514.8 | |
| 0.00 | 0.90 | 0.00 | 0.49 | -8.57 | 23.47 | -23.42 | 108.46 | 0.4161 | 539.0 | 477.1 | |
| 0.00 | 1.44 | 0.00 | 0.79 | -9.43 | 22.97 | -23.92 | 110.06 | 0.4276 | 842.0 | 609.4 | |
| 0.00 | 3.16 | 0.00 | 1.74 | -9.70 | 22.65 | -24.24 | 110.44 | 0.4337 | 970.0 | 785.8 | |
| 0.63 | 3.52 | 0.35 | 1.94 | -9.61 | 22.25 | -24.64 | 109.95 | 0.4392 | 932.1 | 763.7 | |
| 0.00 | 0.99 | 0.00 | 0.56 | -9.61 | 19.88 | -27.01 | 108.49 | 0.4740 | -765.0 | -612.2 | |
| 0.00 | 0.81 | 0.00 | 0.46 | -9.61 | 19.71 | -27.18 | 108.39 | 0.4765 | -583.0 | -450.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
