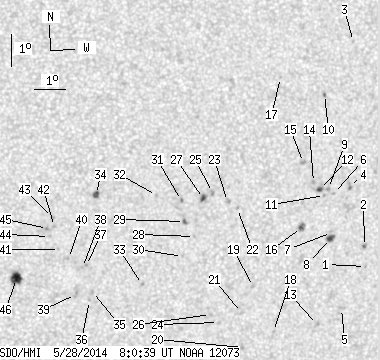

SDO HMI 2014-05-28 08:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 17.69 | 89.02 | 9.31 | 47.37 | -12.80 | 63.78 | 17.44 | 234.33 | 0.3606 | 58.5 | 220.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-05-28 08:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.90 | 0.00 | 0.50 | -13.76 | 68.97 | 22.63 | 239.49 | 0.4356 | -746.0 | -621.2 | |
| 0.00 | 2.17 | 0.00 | 1.19 | -13.13 | 68.87 | 22.53 | 240.68 | 0.4298 | -844.0 | -680.8 | |
| 0.00 | 0.99 | 0.00 | 0.53 | -6.83 | 68.06 | 21.72 | 254.65 | 0.3827 | -813.0 | -665.6 | |
| 0.00 | 3.07 | 0.00 | 1.66 | -11.28 | 68.21 | 21.87 | 244.05 | 0.4079 | 721.0 | 648.2 | |
| 0.00 | 2.53 | 0.00 | 1.39 | -15.07 | 68.29 | 21.95 | 236.11 | 0.4366 | 125.0 | 244.8 | |
| 0.00 | 1.17 | 0.00 | 0.63 | -11.50 | 67.69 | 21.35 | 243.04 | 0.4019 | 746.0 | 594.9 | |
| 0.00 | 1.35 | 0.00 | 0.74 | -12.71 | 67.72 | 21.38 | 240.39 | 0.4108 | 601.0 | 439.3 | |
| 2.71 | 4.51 | 1.47 | 2.45 | -12.89 | 67.71 | 21.37 | 239.96 | 0.4119 | 970.2 | 740.8 | |
| 0.00 | 1.81 | 0.00 | 0.97 | -11.35 | 67.51 | 21.17 | 243.21 | 0.3984 | 892.0 | 723.9 | |
| 0.00 | 1.44 | 0.00 | 0.77 | -8.46 | 67.19 | 20.85 | 249.88 | 0.3765 | 626.0 | 578.8 | |
| 0.00 | 0.99 | 0.00 | 0.54 | -11.56 | 67.40 | 21.05 | 242.59 | 0.3982 | 750.0 | 591.1 | |
| 1.26 | 3.52 | 0.68 | 1.90 | -11.38 | 67.22 | 20.87 | 242.83 | 0.3943 | 1106.1 | 858.5 | |
| 0.00 | 1.90 | 0.00 | 1.04 | -15.58 | 67.53 | 21.19 | 234.22 | 0.4310 | 689.0 | 591.0 | |
| 0.00 | 1.90 | 0.00 | 1.02 | -11.16 | 67.00 | 20.66 | 243.10 | 0.3898 | 906.0 | 751.0 | |
| 0.00 | 2.08 | 0.00 | 1.11 | -10.55 | 66.63 | 20.29 | 244.17 | 0.3803 | 1022.0 | 822.3 | |
| 1.35 | 4.96 | 0.73 | 2.68 | -12.56 | 66.71 | 20.37 | 239.58 | 0.3956 | 1099.4 | 867.5 | |
| 0.00 | 0.81 | 0.00 | 0.43 | -7.94 | 65.72 | 19.38 | 249.96 | 0.3514 | -698.0 | -553.2 | |
| 0.00 | 0.81 | 0.00 | 0.44 | -15.81 | 66.07 | 19.73 | 231.91 | 0.4145 | 577.0 | 508.8 | |
| 0.00 | 1.44 | 0.00 | 0.78 | -14.40 | 65.27 | 18.93 | 233.71 | 0.3915 | 699.0 | 641.2 | |
| 0.00 | 0.99 | 0.00 | 0.54 | -16.31 | 65.09 | 18.74 | 229.53 | 0.4071 | 739.0 | 636.8 | |
| 0.00 | 1.44 | 0.00 | 0.78 | -15.21 | 64.95 | 18.61 | 231.54 | 0.3948 | 722.0 | 636.8 | |
| 0.00 | 1.35 | 0.00 | 0.72 | -11.98 | 64.56 | 18.22 | 238.24 | 0.3612 | 816.0 | 641.1 | |
| 0.00 | 2.98 | 0.00 | 1.58 | -11.76 | 64.22 | 17.88 | 238.30 | 0.3547 | 657.0 | 624.9 | |
| 0.00 | 1.53 | 0.00 | 0.82 | -15.53 | 64.21 | 17.87 | 229.81 | 0.3887 | 515.0 | 503.1 | |
| 0.00 | 2.44 | 0.00 | 1.29 | -11.49 | 63.71 | 17.37 | 238.28 | 0.3454 | 944.0 | 730.9 | |
| 0.00 | 1.44 | 0.00 | 0.77 | -15.28 | 63.93 | 17.58 | 229.88 | 0.3827 | 740.0 | 606.2 | |
| 1.72 | 2.98 | 0.90 | 1.57 | -11.67 | 63.43 | 17.09 | 237.40 | 0.3431 | 1074.7 | 862.5 | |
| 0.00 | 0.99 | 0.00 | 0.52 | -12.85 | 63.22 | 16.87 | 234.19 | 0.3504 | 759.0 | 587.8 | |
| 0.45 | 1.99 | 0.24 | 1.05 | -12.39 | 62.86 | 16.52 | 234.76 | 0.3415 | 1013.0 | 803.6 | |
| 0.00 | 1.08 | 0.00 | 0.57 | -13.48 | 62.87 | 16.53 | 232.17 | 0.3517 | 805.0 | 598.2 | |
| 0.00 | 1.53 | 0.00 | 0.81 | -11.74 | 62.72 | 16.38 | 236.17 | 0.3338 | 974.0 | 875.6 | |
| 0.00 | 1.35 | 0.00 | 0.71 | -11.59 | 61.91 | 15.56 | 235.24 | 0.3213 | 834.0 | 601.9 | |
| 0.00 | 1.35 | 0.00 | 0.71 | -14.35 | 61.63 | 15.28 | 228.05 | 0.3449 | -880.0 | -679.1 | |
| 2.08 | 3.70 | 1.08 | 1.92 | -11.56 | 59.98 | 13.64 | 231.80 | 0.2953 | -1102.4 | -868.7 | |
| 0.00 | 1.08 | 0.00 | 0.57 | -14.58 | 60.02 | 13.68 | 224.46 | 0.3282 | -808.0 | -766.9 | |
| 0.00 | 1.17 | 0.00 | 0.62 | -14.86 | 59.94 | 13.60 | 223.68 | 0.3305 | -870.0 | -663.0 | |
| 0.00 | 0.81 | 0.00 | 0.42 | -13.77 | 59.78 | 13.44 | 225.80 | 0.3162 | -902.0 | -779.8 | |
| 0.00 | 0.81 | 0.00 | 0.42 | -13.83 | 59.65 | 13.31 | 225.39 | 0.3154 | -1029.0 | -829.7 | |
| 0.00 | 1.90 | 0.00 | 0.99 | -14.67 | 59.48 | 13.13 | 223.11 | 0.3231 | -670.0 | -725.0 | |
| 0.00 | 1.17 | 0.00 | 0.61 | -13.55 | 59.19 | 12.85 | 225.06 | 0.3067 | -959.0 | -716.5 | |
| 0.00 | 0.63 | 0.00 | 0.33 | -13.27 | 58.89 | 12.54 | 225.06 | 0.2999 | -615.0 | -584.6 | |
| 0.00 | 1.35 | 0.00 | 0.70 | -12.56 | 58.69 | 12.35 | 226.40 | 0.2895 | -903.0 | -710.9 | |
| 0.00 | 1.35 | 0.00 | 0.70 | -12.28 | 58.61 | 12.27 | 226.95 | 0.2854 | -941.0 | -808.0 | |
| 0.00 | 1.17 | 0.00 | 0.61 | -12.87 | 58.55 | 12.20 | 225.28 | 0.2913 | -844.0 | -610.2 | |
| 0.00 | 1.35 | 0.00 | 0.70 | -12.62 | 58.47 | 12.13 | 225.74 | 0.2875 | -1028.0 | -865.2 | |
| 8.12 | 10.74 | 4.21 | 5.57 | -14.18 | 57.56 | 11.21 | 219.80 | 0.2958 | -1053.7 | -698.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
