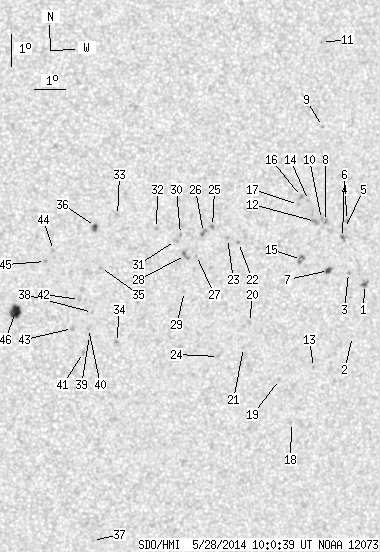

SDO HMI 2014-05-28 10:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 13.09 | 88.54 | 6.91 | 47.39 | -12.85 | 63.65 | 18.40 | 235.66 | 0.3741 | 156.2 | 268.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-05-28 10:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.90 | 4.51 | 0.50 | 2.50 | -13.27 | 68.98 | 23.73 | 241.55 | 0.4474 | -977.6 | -762.6 | |
| 0.00 | 0.27 | 0.00 | 0.15 | -14.89 | 68.75 | 23.50 | 238.10 | 0.4557 | 586.0 | 454.0 | |
| 0.00 | 1.26 | 0.00 | 0.70 | -12.90 | 68.40 | 23.15 | 241.76 | 0.4368 | 392.0 | 390.4 | |
| 0.00 | 1.53 | 0.00 | 0.84 | -11.29 | 68.22 | 22.97 | 245.02 | 0.4240 | 730.0 | 590.7 | |
| 0.00 | 0.72 | 0.00 | 0.39 | -11.54 | 68.14 | 22.89 | 244.41 | 0.4244 | 657.0 | 528.5 | |
| 0.45 | 3.25 | 0.25 | 1.78 | -11.82 | 68.10 | 22.85 | 243.77 | 0.4255 | 901.4 | 579.4 | |
| 1.99 | 3.61 | 1.09 | 1.98 | -12.84 | 67.72 | 22.47 | 241.21 | 0.4270 | 974.1 | 777.4 | |
| 0.00 | 1.99 | 0.00 | 1.08 | -11.33 | 67.48 | 22.24 | 244.27 | 0.4136 | 823.0 | 745.7 | |
| 0.00 | 0.99 | 0.00 | 0.53 | -8.41 | 67.18 | 21.93 | 250.84 | 0.3928 | 736.0 | 587.5 | |
| 0.00 | 1.26 | 0.00 | 0.69 | -11.27 | 67.34 | 22.10 | 244.28 | 0.4112 | 841.0 | 757.8 | |
| 0.00 | 0.99 | 0.00 | 0.53 | -5.84 | 67.02 | 21.77 | 257.20 | 0.3801 | -831.0 | -617.5 | |
| 0.00 | 3.16 | 0.00 | 1.71 | -11.33 | 67.15 | 21.90 | 243.95 | 0.4088 | 1249.0 | 946.1 | |
| 0.00 | 0.90 | 0.00 | 0.50 | -15.87 | 67.52 | 22.28 | 234.90 | 0.4475 | 631.0 | 500.5 | |
| 0.00 | 1.08 | 0.00 | 0.59 | -10.68 | 66.87 | 21.62 | 245.15 | 0.4007 | 802.0 | 616.9 | |
| 0.00 | 4.87 | 0.00 | 2.65 | -12.51 | 66.78 | 21.53 | 240.96 | 0.4115 | 907.0 | 904.4 | |
| 0.00 | 1.81 | 0.00 | 0.97 | -10.56 | 66.62 | 21.38 | 245.21 | 0.3964 | 1002.0 | 808.0 | |
| 0.00 | 1.26 | 0.00 | 0.68 | -10.81 | 66.54 | 21.30 | 244.55 | 0.3967 | 812.0 | 639.1 | |
| 0.00 | 0.63 | 0.00 | 0.35 | -17.61 | 66.98 | 21.73 | 231.04 | 0.4557 | 725.0 | 628.4 | |
| 0.00 | 1.08 | 0.00 | 0.60 | -16.26 | 66.41 | 21.16 | 232.85 | 0.4366 | 725.0 | 605.4 | |
| 0.00 | 2.17 | 0.00 | 1.17 | -14.48 | 65.22 | 19.97 | 234.91 | 0.4058 | 717.0 | 637.1 | |
| 0.00 | 0.90 | 0.00 | 0.49 | -15.26 | 65.09 | 19.84 | 233.14 | 0.4110 | 726.0 | 567.3 | |
| 0.00 | 0.90 | 0.00 | 0.48 | -11.99 | 64.65 | 19.40 | 239.70 | 0.3779 | 772.0 | 681.5 | |
| 0.00 | 1.71 | 0.00 | 0.91 | -11.87 | 64.27 | 19.03 | 239.53 | 0.3718 | 858.0 | 731.1 | |
| 0.00 | 1.53 | 0.00 | 0.83 | -15.55 | 64.28 | 19.04 | 231.46 | 0.4034 | 763.0 | 557.4 | |
| 0.00 | 1.71 | 0.00 | 0.91 | -11.50 | 63.76 | 18.51 | 239.76 | 0.3616 | 1000.0 | 842.1 | |
| 0.00 | 3.52 | 0.00 | 1.87 | -11.69 | 63.48 | 18.23 | 238.94 | 0.3591 | 1106.0 | 896.4 | |
| 0.00 | 0.63 | 0.00 | 0.34 | -12.40 | 63.30 | 18.05 | 236.97 | 0.3625 | 756.0 | 627.0 | |
| 0.00 | 3.88 | 0.00 | 2.06 | -12.40 | 62.94 | 17.69 | 236.46 | 0.3576 | 969.0 | 878.3 | |
| 0.00 | 1.17 | 0.00 | 0.62 | -13.52 | 62.98 | 17.74 | 233.93 | 0.3681 | 801.0 | 606.9 | |
| 0.00 | 1.17 | 0.00 | 0.62 | -11.75 | 62.73 | 17.48 | 237.75 | 0.3493 | 899.0 | 779.9 | |
| 0.00 | 2.08 | 0.00 | 1.10 | -11.94 | 62.58 | 17.33 | 237.07 | 0.3487 | 857.0 | 668.3 | |
| 0.00 | 1.35 | 0.00 | 0.71 | -11.57 | 61.94 | 16.69 | 237.05 | 0.3368 | 872.0 | 668.7 | |
| 0.00 | 1.71 | 0.00 | 0.89 | -11.18 | 60.66 | 15.41 | 236.06 | 0.3156 | -686.0 | -537.4 | |
| 0.00 | 1.53 | 0.00 | 0.81 | -15.12 | 60.88 | 15.63 | 226.97 | 0.3574 | -842.0 | -619.6 | |
| 0.00 | 0.72 | 0.00 | 0.38 | -12.79 | 60.20 | 14.96 | 231.11 | 0.3248 | -789.0 | -658.6 | |
| 0.90 | 3.70 | 0.47 | 1.93 | -11.52 | 59.97 | 14.72 | 233.95 | 0.3094 | -1072.1 | -949.6 | |
| 0.00 | 0.90 | 0.00 | 0.49 | -21.42 | 60.65 | 15.41 | 215.41 | 0.4285 | 516.0 | 487.1 | |
| 0.00 | 1.17 | 0.00 | 0.62 | -14.19 | 60.03 | 14.78 | 227.48 | 0.3371 | -659.0 | -472.5 | |
| 0.00 | 0.81 | 0.00 | 0.43 | -14.91 | 59.98 | 14.74 | 225.80 | 0.3444 | -823.0 | -658.2 | |
| 0.00 | 1.35 | 0.00 | 0.71 | -14.69 | 59.94 | 14.69 | 226.18 | 0.3414 | -577.0 | -550.7 | |
| 0.00 | 1.53 | 0.00 | 0.81 | -15.44 | 59.83 | 14.58 | 224.36 | 0.3485 | -845.0 | -626.6 | |
| 0.00 | 1.44 | 0.00 | 0.76 | -13.78 | 59.59 | 14.34 | 227.56 | 0.3274 | -856.0 | -644.3 | |
| 0.00 | 2.17 | 0.00 | 1.14 | -14.69 | 59.42 | 14.17 | 225.18 | 0.3353 | -793.0 | -689.5 | |
| 0.00 | 1.35 | 0.00 | 0.70 | -12.26 | 58.67 | 13.42 | 229.46 | 0.2997 | -921.0 | -720.5 | |
| 0.00 | 1.17 | 0.00 | 0.61 | -12.61 | 58.43 | 13.18 | 228.08 | 0.3003 | -950.0 | -838.8 | |
| 8.85 | 11.10 | 4.60 | 5.78 | -14.16 | 57.55 | 12.30 | 222.39 | 0.3077 | -1054.7 | -732.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
