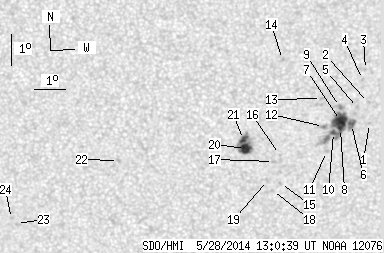

SDO HMI 2014-05-28 13:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 34.65 | 100.92 | 18.24 | 53.17 | -19.32 | 51.13 | 7.53 | 201.58 | 0.3397 | 414.6 | 295.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-05-28 13:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.81 | 0.00 | 0.43 | -19.05 | 53.33 | 9.74 | 207.40 | 0.3489 | 651.0 | 547.8 | |
| 0.00 | 1.35 | 0.00 | 0.71 | -18.38 | 53.26 | 9.67 | 208.19 | 0.3387 | 742.0 | 541.1 | |
| 0.00 | 1.17 | 0.00 | 0.61 | -17.33 | 53.11 | 9.51 | 209.42 | 0.3226 | 779.0 | 586.9 | |
| 0.00 | 0.99 | 0.00 | 0.52 | -17.65 | 53.03 | 9.43 | 208.71 | 0.3264 | 815.0 | 719.5 | |
| 0.00 | 1.80 | 0.00 | 0.95 | -18.54 | 52.92 | 9.32 | 207.10 | 0.3384 | 873.0 | 636.8 | |
| 3.43 | 46.74 | 1.81 | 24.64 | -19.08 | 52.75 | 9.15 | 205.94 | 0.3450 | 834.1 | 706.2 | |
| 14.80 | -6.00 | 7.79 | -6.00 | -18.96 | 52.39 | 8.79 | 205.22 | 0.3406 | 1187.2 | 999999 | |
| 2.98 | -6.00 | 1.57 | -6.00 | -19.21 | 52.40 | 8.80 | 204.91 | 0.3444 | 984.6 | 999999 | |
| 0.00 | 3.61 | 0.00 | 1.90 | -18.51 | 52.33 | 8.73 | 205.68 | 0.3336 | 1004.0 | 838.3 | |
| 1.62 | -6.00 | 0.86 | -6.00 | -19.34 | 52.18 | 8.58 | 204.20 | 0.3448 | 973.6 | 999999 | |
| 0.00 | 1.71 | 0.00 | 0.91 | -19.95 | 51.98 | 8.38 | 202.97 | 0.3526 | 627.0 | 388.6 | |
| 0.00 | 3.88 | 0.00 | 2.04 | -19.15 | 51.84 | 8.24 | 203.60 | 0.3397 | 941.0 | 719.2 | |
| 0.00 | 1.35 | 0.00 | 0.71 | -18.26 | 51.74 | 8.14 | 204.49 | 0.3257 | 857.0 | 675.1 | |
| 0.00 | 1.71 | 0.00 | 0.89 | -17.02 | 50.43 | 6.83 | 202.52 | 0.2983 | 759.0 | 687.5 | |
| 0.00 | 1.26 | 0.00 | 0.67 | -20.98 | 50.53 | 6.93 | 198.32 | 0.3599 | 851.0 | 713.4 | |
| 0.00 | 0.90 | 0.00 | 0.48 | -20.05 | 50.45 | 6.85 | 199.04 | 0.3451 | 378.0 | 396.6 | |
| 0.00 | 1.53 | 0.00 | 0.81 | -20.27 | 50.27 | 6.67 | 198.34 | 0.3476 | 501.0 | 483.8 | |
| 0.00 | 0.99 | 0.00 | 0.53 | -21.21 | 50.27 | 6.68 | 197.49 | 0.3621 | 782.0 | 650.8 | |
| 0.00 | 1.62 | 0.00 | 0.86 | -20.89 | 50.10 | 6.50 | 197.34 | 0.3562 | 622.0 | 573.3 | |
| 8.21 | 25.81 | 4.32 | 13.56 | -19.86 | 49.34 | 5.74 | 196.31 | 0.3365 | -1050.7 | -772.6 | |
| 3.61 | -20.00 | 1.89 | -20.00 | -19.57 | 49.27 | 5.67 | 196.37 | 0.3316 | -1220.0 | 999999 | |
| 0.00 | 1.53 | 0.00 | 0.80 | -20.24 | 45.23 | 1.63 | 184.66 | 0.3304 | -912.0 | -713.5 | |
| 0.00 | 0.90 | 0.00 | 0.48 | -22.28 | 41.90 | -1.69 | 175.67 | 0.3638 | -771.0 | -637.5 | |
| 0.00 | 1.26 | 0.00 | 0.67 | -22.11 | 41.74 | -1.86 | 175.21 | 0.3613 | -770.0 | -562.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
