SDO HMI 2014-05-28 15:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 30.68 | 157.08 | 16.05 | 82.28 | -8.88 | 25.10 | -17.39 | 114.80 | 0.3267 | 965.5 | 423.9 | |
|
previous
or next observation for the same group /

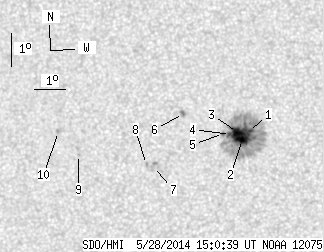

back to the solar disc SDO HMI 2014-05-28 15:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 5.77 | 145.36 | 3.02 | 76.01 | -8.75 | 25.63 | -16.87 | 115.03 | 0.3179 | 1333.4 | 427.2 | |
| 11.28 | -1.00 | 5.90 | -1.00 | -8.99 | 25.42 | -17.07 | 115.48 | 0.3226 | 1293.4 | 999999 | |
| 10.38 | -1.00 | 5.43 | -1.00 | -8.78 | 25.27 | -17.22 | 114.68 | 0.3235 | 1222.8 | 999999 | |
| 2.26 | -1.00 | 1.18 | -1.00 | -8.84 | 25.04 | -17.45 | 114.57 | 0.3273 | 897.6 | 999999 | |
| 0.54 | -1.00 | 0.28 | -1.00 | -8.81 | 24.82 | -17.68 | 114.22 | 0.3305 | 718.0 | 999999 | |
| 0.45 | 2.98 | 0.24 | 1.57 | -8.18 | 23.56 | -18.94 | 111.16 | 0.3460 | 995.8 | 792.7 | |
| 0.00 | 4.51 | 0.00 | 2.41 | -9.80 | 22.48 | -20.01 | 114.33 | 0.3717 | 569.0 | 657.4 | |
| 0.00 | 1.71 | 0.00 | 0.92 | -9.74 | 22.26 | -20.24 | 113.94 | 0.3746 | 855.0 | 673.9 | |
| 0.00 | 0.99 | 0.00 | 0.54 | -9.41 | 20.03 | -22.47 | 111.18 | 0.4060 | -755.0 | -608.1 | |
| 0.00 | 1.53 | 0.00 | 0.83 | -8.70 | 19.41 | -23.09 | 109.05 | 0.4118 | -891.0 | -688.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
