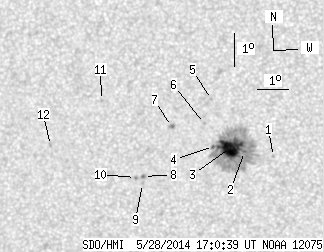

SDO HMI 2014-05-28 17:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 27.60 | 151.73 | 14.36 | 78.97 | -8.83 | 25.18 | -16.21 | 116.20 | 0.3087 | 858.6 | 439.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-05-28 17:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.99 | 0.00 | 0.51 | -9.13 | 26.74 | -14.65 | 119.34 | 0.2877 | -614.0 | -412.3 | |
| 0.27 | 139.39 | 0.14 | 72.47 | -8.97 | 25.82 | -15.57 | 117.44 | 0.3000 | 1047.0 | 453.7 | |
| 26.70 | -2.00 | 13.89 | -2.00 | -8.84 | 25.38 | -16.01 | 116.45 | 0.3057 | 1285.3 | 999999 | |
| 0.63 | -2.00 | 0.33 | -2.00 | -8.81 | 24.84 | -16.55 | 115.62 | 0.3136 | 700.4 | 999999 | |
| 0.00 | 1.26 | 0.00 | 0.66 | -7.37 | 24.84 | -16.55 | 111.29 | 0.3046 | -558.0 | -332.4 | |
| 0.00 | 0.99 | 0.00 | 0.52 | -8.10 | 24.58 | -16.81 | 113.22 | 0.3129 | 762.0 | 543.5 | |
| 0.00 | 2.62 | 0.00 | 1.37 | -8.19 | 23.52 | -17.87 | 112.27 | 0.3297 | 1038.0 | 898.9 | |
| 0.00 | 1.98 | 0.00 | 1.05 | -9.71 | 22.53 | -18.86 | 115.33 | 0.3541 | 1097.0 | 847.4 | |
| 0.00 | 1.08 | 0.00 | 0.57 | -9.93 | 22.48 | -18.91 | 115.84 | 0.3562 | 746.0 | 594.1 | |
| 0.00 | 1.08 | 0.00 | 0.57 | -9.74 | 22.26 | -19.12 | 115.12 | 0.3582 | 816.0 | 737.3 | |
| 0.00 | 1.08 | 0.00 | 0.57 | -7.38 | 21.29 | -20.10 | 107.97 | 0.3599 | -648.0 | -448.1 | |
| 0.00 | 1.26 | 0.00 | 0.68 | -8.74 | 19.53 | -21.86 | 110.06 | 0.3934 | -843.0 | -671.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
