SDO HMI 2014-05-28 18:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 6.49 | 24.25 | 4.66 | 16.70 | -10.48 | 83.86 | 43.03 | 255.76 | 0.6930 | 55.3 | 146.2 | |
|
previous
or next observation for the same group /

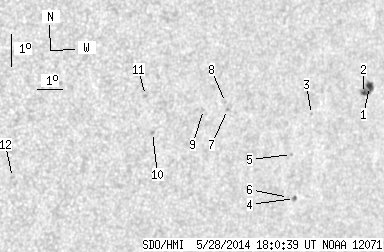

back to the solar disc SDO HMI 2014-05-28 18:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.15 | 12.36 | 2.99 | 8.89 | -9.61 | 86.86 | 46.02 | 257.76 | 0.7283 | 662.1 | 653.0 | |
| 1.53 | -1.00 | 1.10 | -1.00 | -9.83 | 86.63 | 45.79 | 257.42 | 0.7260 | 829.1 | 999999 | |
| 0.00 | 0.99 | 0.00 | 0.69 | -10.50 | 84.48 | 43.65 | 256.04 | 0.7016 | 550.0 | 430.9 | |
| 0.81 | 2.17 | 0.57 | 1.51 | -13.11 | 84.26 | 43.43 | 252.33 | 0.7050 | 521.1 | 460.3 | |
| 0.00 | 1.08 | 0.00 | 0.75 | -11.75 | 83.85 | 43.02 | 254.13 | 0.6967 | 533.0 | 425.5 | |
| 0.00 | 0.27 | 0.00 | 0.19 | -13.08 | 84.00 | 43.17 | 252.30 | 0.7018 | 547.0 | 491.0 | |
| 0.00 | 1.08 | 0.00 | 0.71 | -10.39 | 80.96 | 40.13 | 255.33 | 0.6576 | -660.0 | -576.4 | |
| 0.00 | 0.81 | 0.00 | 0.53 | -10.17 | 80.85 | 40.01 | 255.62 | 0.6556 | -592.0 | -393.0 | |
| 0.00 | 0.90 | 0.00 | 0.58 | -10.40 | 80.00 | 39.16 | 255.04 | 0.6452 | -701.0 | -598.1 | |
| 0.00 | 1.62 | 0.00 | 1.03 | -11.13 | 78.09 | 37.26 | 253.31 | 0.6224 | -677.0 | -585.1 | |
| 0.00 | 1.53 | 0.00 | 0.96 | -9.99 | 77.66 | 36.83 | 254.98 | 0.6135 | -704.0 | -485.4 | |
| 0.00 | 1.44 | 0.00 | 0.86 | -12.57 | 73.00 | 32.17 | 248.77 | 0.5596 | -729.0 | -560.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
