SDO HMI 2014-05-28 18:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 37.08 | 83.14 | 19.69 | 44.14 | -19.17 | 51.48 | 10.64 | 209.28 | 0.3592 | 387.1 | 434.8 | |
|
previous
or next observation for the same group /

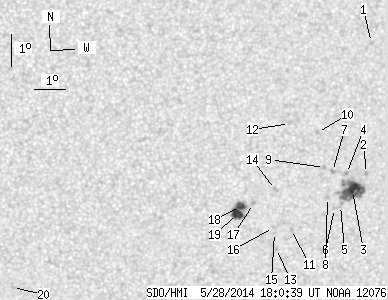

back to the solar disc SDO HMI 2014-05-28 18:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.62 | 0.00 | 0.85 | -14.42 | 53.09 | 12.25 | 221.66 | 0.3106 | 666.0 | 625.9 | |
| 0.00 | 1.80 | 0.00 | 0.96 | -18.55 | 53.19 | 12.35 | 214.02 | 0.3641 | 914.0 | 724.2 | |
| 23.46 | 40.33 | 12.49 | 21.46 | -19.10 | 52.77 | 11.93 | 212.27 | 0.3676 | 1052.2 | 763.2 | |
| 0.00 | 1.44 | 0.00 | 0.77 | -18.56 | 52.53 | 11.70 | 212.61 | 0.3582 | 1100.0 | 879.7 | |
| 0.00 | 1.53 | 0.00 | 0.82 | -19.58 | 52.41 | 11.57 | 210.77 | 0.3710 | 629.0 | 598.5 | |
| 0.00 | 1.62 | 0.00 | 0.87 | -19.67 | 52.22 | 11.38 | 210.22 | 0.3708 | 754.0 | 634.1 | |
| 0.00 | 2.17 | 0.00 | 1.15 | -18.49 | 52.07 | 11.24 | 211.68 | 0.3533 | 927.0 | 765.6 | |
| 0.00 | 1.71 | 0.00 | 0.91 | -19.32 | 51.96 | 11.13 | 210.18 | 0.3638 | 791.0 | 663.9 | |
| 0.00 | 1.35 | 0.00 | 0.72 | -18.37 | 51.80 | 10.97 | 211.27 | 0.3493 | 880.0 | 686.1 | |
| 0.00 | 1.80 | 0.00 | 0.95 | -17.26 | 51.51 | 10.67 | 212.40 | 0.3315 | 836.0 | 671.4 | |
| 0.00 | 1.26 | 0.00 | 0.67 | -20.35 | 50.85 | 10.01 | 206.28 | 0.3697 | 946.0 | 728.8 | |
| 0.00 | 1.35 | 0.00 | 0.71 | -16.97 | 50.59 | 9.75 | 210.61 | 0.3196 | 857.0 | 624.3 | |
| 0.00 | 0.90 | 0.00 | 0.48 | -20.97 | 50.39 | 9.56 | 204.50 | 0.3754 | 724.0 | 635.7 | |
| 0.00 | 2.17 | 0.00 | 1.14 | -19.07 | 50.25 | 9.41 | 206.58 | 0.3469 | -811.0 | -650.8 | |
| 0.00 | 0.54 | 0.00 | 0.29 | -20.45 | 50.29 | 9.46 | 204.91 | 0.3673 | 578.0 | 464.7 | |
| 0.00 | 0.90 | 0.00 | 0.48 | -20.29 | 50.25 | 9.42 | 205.01 | 0.3646 | 782.0 | 584.2 | |
| 0.00 | 1.35 | 0.00 | 0.71 | -19.52 | 49.55 | 8.72 | 204.31 | 0.3486 | -874.0 | -639.3 | |
| 4.69 | 18.13 | 2.48 | 9.58 | -19.62 | 49.13 | 8.30 | 203.16 | 0.3472 | -1139.5 | -749.6 | |
| 8.93 | -18.00 | 4.72 | -18.00 | -19.84 | 49.05 | 8.21 | 202.68 | 0.3500 | -1056.4 | 999999 | |
| 0.00 | 1.17 | 0.00 | 0.62 | -22.23 | 41.77 | 0.93 | 182.39 | 0.3625 | -827.0 | -691.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
