SDO HMI 2014-05-28 20:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 14.16 | 85.65 | 7.83 | 47.85 | -12.93 | 64.41 | 24.69 | 242.61 | 0.4603 | 62.8 | 140.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-05-28 20:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |

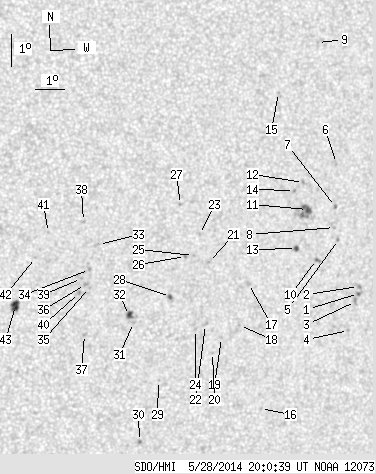

| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.54 | 2.08 | 0.32 | 1.21 | -13.70 | 69.36 | 29.64 | 245.31 | 0.5308 | -849.8 | -633.2 | |
| 0.00 | 2.62 | 0.00 | 1.53 | -13.49 | 69.33 | 29.61 | 245.67 | 0.5293 | -780.0 | -681.6 | |
| 0.00 | 2.53 | 0.00 | 1.47 | -13.95 | 69.29 | 29.56 | 244.82 | 0.5312 | -891.0 | -761.6 | |
| 0.00 | 1.17 | 0.00 | 0.69 | -14.86 | 69.16 | 29.44 | 243.15 | 0.5346 | 863.0 | 620.2 | |
| 0.00 | 0.90 | 0.00 | 0.52 | -12.04 | 68.43 | 28.71 | 247.75 | 0.5096 | 658.0 | 506.5 | |
| 0.00 | 1.08 | 0.00 | 0.62 | -9.69 | 68.12 | 28.40 | 252.04 | 0.4948 | 677.0 | 535.7 | |
| 0.00 | 1.26 | 0.00 | 0.72 | -11.02 | 68.21 | 28.49 | 249.54 | 0.5018 | 716.0 | 629.7 | |
| 0.00 | 1.08 | 0.00 | 0.62 | -11.67 | 68.25 | 28.53 | 248.33 | 0.5053 | 681.0 | 486.6 | |
| 0.00 | 1.26 | 0.00 | 0.71 | -6.00 | 67.19 | 27.47 | 259.17 | 0.4690 | -699.0 | -531.4 | |
| 0.36 | 2.08 | 0.21 | 1.19 | -12.66 | 67.73 | 28.00 | 246.12 | 0.5030 | 881.0 | 760.5 | |
| 3.70 | 16.51 | 2.10 | 9.35 | -11.12 | 67.24 | 27.52 | 248.75 | 0.4884 | 892.6 | 725.0 | |
| 0.00 | 1.89 | 0.00 | 1.07 | -10.29 | 67.02 | 27.30 | 250.26 | 0.4814 | 784.0 | 626.5 | |
| 1.17 | 2.17 | 0.67 | 1.23 | -12.32 | 66.99 | 27.26 | 246.24 | 0.4909 | 852.5 | 673.2 | |
| 0.00 | 1.08 | 0.00 | 0.61 | -10.53 | 66.73 | 27.01 | 249.58 | 0.4783 | 853.0 | 744.8 | |
| 0.00 | 0.81 | 0.00 | 0.45 | -7.53 | 65.94 | 26.22 | 255.39 | 0.4545 | -664.0 | -590.8 | |
| 0.00 | 1.17 | 0.00 | 0.68 | -17.34 | 66.39 | 26.66 | 236.66 | 0.5148 | 588.0 | 485.3 | |
| 0.00 | 2.62 | 0.00 | 1.47 | -13.42 | 65.44 | 25.71 | 242.95 | 0.4758 | 508.0 | 429.7 | |
| 0.00 | 0.99 | 0.00 | 0.56 | -14.73 | 65.28 | 25.56 | 240.32 | 0.4822 | 729.0 | 544.8 | |
| 0.00 | 0.81 | 0.00 | 0.46 | -15.11 | 64.70 | 24.98 | 239.09 | 0.4771 | 714.0 | 556.6 | |
| 0.00 | 1.08 | 0.00 | 0.61 | -15.58 | 64.45 | 24.73 | 237.97 | 0.4772 | 652.0 | 534.2 | |
| 0.00 | 0.99 | 0.00 | 0.55 | -12.78 | 63.99 | 24.27 | 242.99 | 0.4517 | 754.0 | 595.5 | |
| 0.00 | 2.44 | 0.00 | 1.36 | -14.71 | 64.10 | 24.38 | 239.28 | 0.4662 | 726.0 | 646.8 | |
| 0.00 | 1.08 | 0.00 | 0.60 | -11.91 | 63.60 | 23.88 | 244.44 | 0.4408 | 435.0 | 405.2 | |
| 0.00 | 0.99 | 0.00 | 0.55 | -14.87 | 63.77 | 24.05 | 238.66 | 0.4630 | 657.0 | 504.4 | |
| 0.00 | 0.90 | 0.00 | 0.50 | -12.56 | 63.46 | 23.73 | 242.95 | 0.4429 | 652.0 | 642.9 | |
| 0.00 | 1.26 | 0.00 | 0.70 | -12.60 | 63.19 | 23.46 | 242.64 | 0.4394 | 983.0 | 795.9 | |
| 0.00 | 1.26 | 0.00 | 0.69 | -10.99 | 62.88 | 23.15 | 245.79 | 0.4249 | 862.0 | 722.9 | |
| 0.72 | 2.17 | 0.40 | 1.20 | -13.84 | 62.80 | 23.08 | 239.71 | 0.4426 | 1061.4 | 867.2 | |
| 0.00 | 1.17 | 0.00 | 0.65 | -16.48 | 62.69 | 22.97 | 234.51 | 0.4615 | 521.0 | 409.9 | |
| 0.00 | 1.62 | 0.00 | 0.91 | -18.41 | 62.29 | 22.57 | 230.59 | 0.4732 | 851.0 | 758.7 | |
| 0.00 | 1.62 | 0.00 | 0.89 | -14.66 | 61.63 | 21.91 | 236.82 | 0.4331 | -721.0 | -599.3 | |
| 2.44 | 5.50 | 1.33 | 3.02 | -14.44 | 61.47 | 21.75 | 237.08 | 0.4293 | -946.4 | -690.1 | |
| 0.00 | 0.72 | 0.00 | 0.39 | -12.24 | 60.24 | 20.51 | 240.38 | 0.3956 | -725.0 | -558.2 | |
| 0.00 | 1.35 | 0.00 | 0.73 | -13.02 | 60.00 | 20.28 | 238.38 | 0.3982 | -683.0 | -539.8 | |
| 0.00 | 1.17 | 0.00 | 0.63 | -13.58 | 60.05 | 20.33 | 237.22 | 0.4033 | -563.0 | -557.5 | |
| 0.00 | 1.89 | 0.00 | 1.02 | -13.49 | 59.91 | 20.18 | 237.25 | 0.4007 | -950.0 | -738.2 | |
| 0.00 | 1.71 | 0.00 | 0.93 | -15.05 | 60.02 | 20.30 | 234.11 | 0.4152 | -770.0 | -619.9 | |
| 0.00 | 1.53 | 0.00 | 0.82 | -11.53 | 59.69 | 19.96 | 241.39 | 0.3827 | -734.0 | -658.4 | |
| 0.00 | 0.90 | 0.00 | 0.49 | -13.30 | 59.76 | 20.04 | 237.47 | 0.3971 | -930.0 | -740.5 | |
| 0.00 | 1.44 | 0.00 | 0.78 | -13.74 | 59.73 | 20.01 | 236.49 | 0.4003 | -983.0 | -858.1 | |
| 0.00 | 0.81 | 0.00 | 0.43 | -11.88 | 58.56 | 18.84 | 239.21 | 0.3693 | -776.0 | -606.0 | |
| 0.00 | 0.72 | 0.00 | 0.38 | -12.65 | 58.19 | 18.46 | 236.89 | 0.3705 | -764.0 | -587.6 | |
| 5.23 | 7.22 | 2.80 | 3.86 | -14.15 | 57.65 | 17.92 | 232.75 | 0.3765 | -1038.0 | -785.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
