SDO HMI 2014-05-28 20:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 30.67 | 155.87 | 15.83 | 80.49 | -8.89 | 25.29 | -14.44 | 119.01 | 0.2828 | 953.5 | 448.3 | |
|
previous
or next observation for the same group /

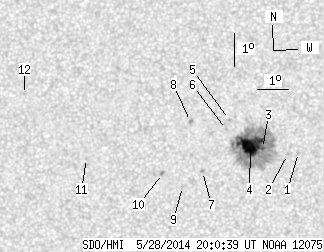

back to the solar disc SDO HMI 2014-05-28 20:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.99 | 0.00 | 0.51 | -9.10 | 26.92 | -12.81 | 122.58 | 0.2609 | -372.0 | -293.2 | |
| 0.00 | 0.81 | 0.00 | 0.42 | -9.16 | 26.57 | -13.16 | 122.10 | 0.2664 | 819.0 | 556.2 | |
| 0.27 | 144.26 | 0.14 | 74.42 | -8.97 | 25.78 | -13.94 | 120.06 | 0.2761 | 1146.3 | 449.0 | |
| 30.40 | -3.00 | 15.69 | -3.00 | -8.88 | 25.41 | -14.32 | 119.13 | 0.2809 | 1286.8 | 999999 | |
| 0.00 | 1.26 | 0.00 | 0.65 | -8.08 | 24.77 | -14.95 | 115.59 | 0.2845 | 773.0 | 556.8 | |
| 0.00 | 1.08 | 0.00 | 0.56 | -8.38 | 24.67 | -15.06 | 116.41 | 0.2882 | 636.0 | 380.6 | |
| 0.00 | 1.53 | 0.00 | 0.80 | -9.66 | 23.84 | -15.88 | 119.06 | 0.3100 | 811.0 | 708.8 | |
| 0.00 | 1.71 | 0.00 | 0.89 | -8.13 | 23.53 | -16.19 | 114.08 | 0.3037 | 1045.0 | 894.8 | |
| 0.00 | 0.99 | 0.00 | 0.52 | -10.12 | 23.18 | -16.55 | 119.37 | 0.3232 | 779.0 | 587.3 | |
| 0.00 | 1.80 | 0.00 | 0.95 | -9.72 | 22.55 | -17.17 | 117.41 | 0.3292 | 1041.0 | 799.0 | |
| 0.00 | 0.81 | 0.00 | 0.43 | -9.24 | 20.11 | -19.61 | 113.34 | 0.3623 | -714.0 | -553.7 | |
| 0.00 | 0.63 | 0.00 | 0.34 | -7.27 | 18.19 | -21.53 | 106.66 | 0.3817 | -733.0 | -507.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
