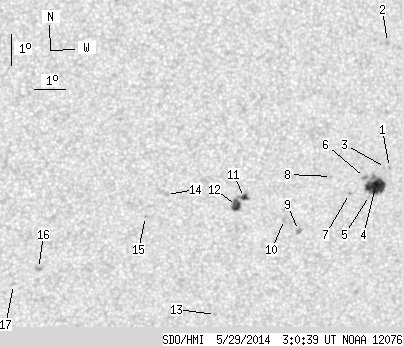

SDO HMI 2014-05-29 03:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 28.35 | 66.64 | 15.40 | 36.11 | -19.60 | 50.86 | 15.01 | 217.12 | 0.4064 | 363.1 | 187.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-05-29 03:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.17 | 0.00 | 0.64 | -18.62 | 53.70 | 17.85 | 223.80 | 0.4214 | 767.0 | 676.4 | |
| 0.00 | 1.99 | 0.00 | 1.06 | -14.67 | 53.26 | 17.41 | 230.74 | 0.3754 | 770.0 | 614.4 | |
| 0.00 | 0.36 | 0.00 | 0.20 | -18.62 | 53.56 | 17.71 | 223.59 | 0.4199 | 591.0 | 628.5 | |
| 19.77 | 27.17 | 10.80 | 14.85 | -19.23 | 53.29 | 17.44 | 222.12 | 0.4237 | 1011.2 | 822.5 | |
| 0.00 | 1.99 | 0.00 | 1.09 | -19.51 | 53.12 | 17.27 | 221.37 | 0.4251 | 387.0 | 331.4 | |
| 0.00 | 2.35 | 0.00 | 1.28 | -18.94 | 52.89 | 17.04 | 221.97 | 0.4162 | 1026.0 | 816.8 | |
| 0.00 | 1.08 | 0.00 | 0.59 | -19.45 | 52.44 | 16.59 | 220.37 | 0.4173 | 912.0 | 814.4 | |
| 0.00 | 0.90 | 0.00 | 0.49 | -18.91 | 51.78 | 15.93 | 220.17 | 0.4042 | 725.0 | 557.1 | |
| 0.00 | 3.07 | 0.00 | 1.67 | -20.65 | 50.85 | 14.99 | 215.76 | 0.4161 | 874.0 | 728.8 | |
| 0.00 | 2.26 | 0.00 | 1.22 | -20.29 | 50.34 | 14.49 | 215.39 | 0.4070 | 741.0 | 590.4 | |
| 2.62 | 14.99 | 1.40 | 8.04 | -19.59 | 48.95 | 13.10 | 213.82 | 0.3852 | -994.3 | -787.9 | |
| 5.96 | -11.00 | 3.20 | -11.00 | -19.85 | 48.70 | 12.85 | 212.94 | 0.3864 | -995.0 | 999999 | |
| 0.00 | 1.72 | 0.00 | 0.94 | -23.39 | 48.31 | 12.46 | 207.48 | 0.4309 | 732.0 | 464.2 | |
| 0.00 | 2.62 | 0.00 | 1.39 | -19.50 | 46.37 | 10.52 | 208.50 | 0.3623 | -768.0 | -486.3 | |
| 0.00 | 1.08 | 0.00 | 0.58 | -20.21 | 45.73 | 9.88 | 206.09 | 0.3675 | -857.0 | -628.8 | |
| 0.00 | 2.26 | 0.00 | 1.20 | -21.89 | 42.30 | 6.45 | 196.30 | 0.3727 | -775.0 | -725.9 | |
| 0.00 | 1.63 | 0.00 | 0.87 | -22.42 | 41.50 | 5.64 | 194.00 | 0.3774 | -794.0 | -658.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
