SDO HMI 2014-05-29 04:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 29.07 | 63.19 | 15.85 | 34.34 | -19.61 | 50.71 | 15.41 | 217.78 | 0.4116 | 373.5 | 189.7 | |
|
previous
or next observation for the same group /

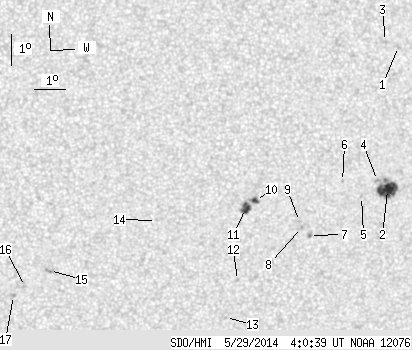

back to the solar disc SDO HMI 2014-05-29 04:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.90 | 0.00 | 1.02 | -14.69 | 53.27 | 17.97 | 231.54 | 0.3828 | 663.0 | 528.6 | |
| 20.31 | 27.90 | 11.14 | 15.29 | -19.21 | 53.35 | 18.05 | 223.07 | 0.4302 | 993.8 | 778.6 | |
| 0.00 | 1.26 | 0.00 | 0.68 | -14.54 | 52.83 | 17.53 | 231.20 | 0.3757 | 713.0 | 581.6 | |
| 0.00 | 2.17 | 0.00 | 1.18 | -18.93 | 52.98 | 17.68 | 222.99 | 0.4230 | 914.0 | 721.5 | |
| 0.00 | 0.99 | 0.00 | 0.54 | -19.44 | 52.50 | 17.19 | 221.36 | 0.4236 | 908.0 | 712.1 | |
| 0.00 | 0.99 | 0.00 | 0.54 | -18.96 | 51.81 | 16.51 | 221.04 | 0.4109 | 779.0 | 631.8 | |
| 0.00 | 2.17 | 0.00 | 1.18 | -20.70 | 50.88 | 15.57 | 216.67 | 0.4223 | 829.0 | 759.6 | |
| 0.00 | 1.44 | 0.00 | 0.79 | -20.45 | 50.58 | 15.28 | 216.55 | 0.4163 | 880.0 | 713.6 | |
| 0.00 | 0.81 | 0.00 | 0.44 | -20.25 | 50.49 | 15.19 | 216.70 | 0.4131 | 824.0 | 690.1 | |
| 2.35 | 4.97 | 1.26 | 2.67 | -19.58 | 48.96 | 13.66 | 214.92 | 0.3903 | -982.4 | -793.4 | |
| 6.41 | 9.21 | 3.45 | 4.95 | -19.84 | 48.65 | 13.35 | 213.93 | 0.3908 | -1013.9 | -713.0 | |
| 0.00 | 1.35 | 0.00 | 0.74 | -22.17 | 48.59 | 13.29 | 210.53 | 0.4210 | 752.0 | 575.0 | |
| 0.00 | 1.08 | 0.00 | 0.60 | -23.38 | 48.31 | 13.00 | 208.48 | 0.4350 | 575.0 | 494.2 | |
| 0.00 | 1.17 | 0.00 | 0.63 | -20.23 | 45.74 | 10.44 | 207.31 | 0.3721 | -761.0 | -596.0 | |
| 0.00 | 2.80 | 0.00 | 1.49 | -21.85 | 42.31 | 7.01 | 197.66 | 0.3748 | -793.0 | -789.4 | |
| 0.00 | 1.17 | 0.00 | 0.63 | -22.38 | 41.54 | 6.24 | 195.43 | 0.3794 | -650.0 | -503.9 | |
| 0.00 | 1.81 | 0.00 | 0.97 | -22.67 | 41.16 | 5.85 | 194.31 | 0.3823 | -819.0 | -685.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
