SDO HMI 2014-05-29 06:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.25 | 16.78 | 2.69 | 13.37 | -10.27 | 85.14 | 50.94 | 257.61 | 0.7839 | 333.5 | 377.4 | |
|
previous
or next observation for the same group /

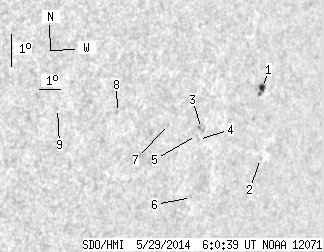

back to the solar disc SDO HMI 2014-05-29 06:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.25 | 7.86 | 2.69 | 6.50 | -9.54 | 87.05 | 52.85 | 258.83 | 0.8034 | 608.9 | 513.4 | |
| 0.00 | 0.54 | 0.00 | 0.46 | -11.73 | 87.49 | 53.29 | 256.19 | 0.8105 | 407.0 | 444.5 | |
| 0.00 | 3.16 | 0.00 | 2.47 | -10.84 | 84.30 | 50.10 | 256.79 | 0.7762 | 666.0 | 586.6 | |
| 0.00 | 1.17 | 0.00 | 0.92 | -11.18 | 84.24 | 50.03 | 256.34 | 0.7760 | 467.0 | 375.2 | |
| 0.00 | 0.72 | 0.00 | 0.56 | -11.06 | 84.11 | 49.91 | 256.47 | 0.7745 | 449.0 | 504.4 | |
| 0.00 | 0.45 | 0.00 | 0.36 | -12.98 | 84.36 | 50.15 | 254.07 | 0.7802 | 547.0 | 458.0 | |
| 0.00 | 0.90 | 0.00 | 0.68 | -10.74 | 82.71 | 48.50 | 256.64 | 0.7586 | 452.0 | 400.9 | |
| 0.00 | 1.35 | 0.00 | 0.98 | -10.39 | 80.30 | 46.10 | 256.64 | 0.7307 | -551.0 | -455.3 | |
| 0.00 | 0.63 | 0.00 | 0.44 | -10.30 | 77.66 | 43.46 | 256.21 | 0.6991 | -510.0 | -456.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
