SDO HMI 2014-05-29 07:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 5.96 | 62.44 | 3.42 | 36.48 | -13.06 | 63.34 | 29.68 | 246.14 | 0.5294 | 224.7 | 242.9 | |
|
previous
or next observation for the same group /

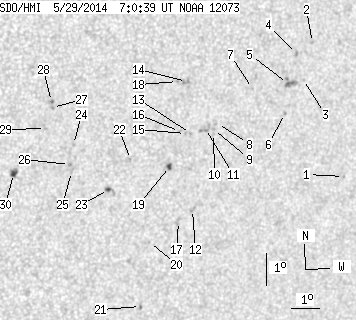

back to the solar disc SDO HMI 2014-05-29 07:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.99 | 0.00 | 0.62 | -14.09 | 69.67 | 36.02 | 248.07 | 0.6170 | -693.0 | -612.1 | |
| 0.00 | 1.35 | 0.00 | 0.82 | -9.95 | 67.88 | 34.22 | 254.04 | 0.5783 | 634.0 | 526.3 | |
| 0.00 | 0.72 | 0.00 | 0.44 | -11.09 | 67.68 | 34.02 | 252.03 | 0.5794 | 480.0 | 484.9 | |
| 0.00 | 1.90 | 0.00 | 1.14 | -10.29 | 67.32 | 33.66 | 253.24 | 0.5717 | 693.0 | 596.3 | |
| 0.72 | 7.95 | 0.44 | 4.80 | -11.22 | 67.10 | 33.44 | 251.57 | 0.5720 | 876.6 | 732.6 | |
| 0.00 | 1.44 | 0.00 | 0.87 | -12.15 | 67.12 | 33.46 | 250.01 | 0.5757 | 507.0 | 498.8 | |
| 0.00 | 0.90 | 0.00 | 0.54 | -11.38 | 65.83 | 32.17 | 250.70 | 0.5552 | 694.0 | 547.9 | |
| 0.00 | 0.63 | 0.00 | 0.37 | -12.48 | 64.69 | 31.03 | 248.20 | 0.5442 | 527.0 | 526.7 | |
| 0.00 | 1.26 | 0.00 | 0.74 | -12.66 | 64.57 | 30.91 | 247.81 | 0.5435 | 703.0 | 505.1 | |
| 0.00 | 0.63 | 0.00 | 0.37 | -12.79 | 64.59 | 30.93 | 247.60 | 0.5443 | 550.0 | 517.6 | |
| 0.00 | 5.24 | 0.00 | 3.08 | -12.63 | 64.28 | 30.62 | 247.69 | 0.5393 | 685.0 | 649.1 | |
| 0.00 | 2.80 | 0.00 | 1.66 | -15.16 | 64.17 | 30.51 | 243.26 | 0.5509 | 663.0 | 604.5 | |
| 0.00 | 0.72 | 0.00 | 0.42 | -12.79 | 63.76 | 30.10 | 247.10 | 0.5329 | 685.0 | 601.4 | |
| 0.00 | 4.06 | 0.00 | 2.35 | -11.19 | 63.42 | 29.76 | 249.82 | 0.5208 | 626.0 | 636.0 | |
| 0.00 | 0.90 | 0.00 | 0.53 | -12.80 | 63.58 | 29.92 | 246.99 | 0.5305 | 802.0 | 676.7 | |
| 0.00 | 1.26 | 0.00 | 0.74 | -12.73 | 63.35 | 29.69 | 246.96 | 0.5271 | 783.0 | 616.4 | |
| 0.00 | 4.15 | 0.00 | 2.45 | -15.54 | 63.72 | 30.06 | 242.31 | 0.5472 | 72.0 | 184.7 | |
| 0.00 | 1.08 | 0.00 | 0.63 | -11.19 | 63.10 | 29.44 | 249.63 | 0.5163 | 772.0 | 653.8 | |
| 1.72 | 2.98 | 1.00 | 1.74 | -13.83 | 63.14 | 29.48 | 244.88 | 0.5299 | 962.4 | 764.5 | |
| 0.00 | 0.63 | 0.00 | 0.37 | -16.21 | 62.77 | 29.11 | 240.49 | 0.5389 | 690.0 | 517.0 | |
| 0.00 | 1.81 | 0.00 | 1.07 | -18.24 | 62.79 | 29.14 | 237.17 | 0.5524 | 686.0 | 615.0 | |
| 0.00 | 0.81 | 0.00 | 0.47 | -13.62 | 61.72 | 28.06 | 244.27 | 0.5095 | 723.0 | 495.1 | |
| 1.08 | 4.61 | 0.62 | 2.64 | -14.56 | 61.06 | 27.40 | 242.06 | 0.5062 | -982.2 | -657.2 | |
| 0.00 | 1.26 | 0.00 | 0.71 | -13.16 | 59.66 | 26.00 | 243.56 | 0.4787 | -665.0 | -526.5 | |
| 0.00 | 1.54 | 0.00 | 0.87 | -14.00 | 59.69 | 26.03 | 241.97 | 0.4843 | -707.0 | -538.5 | |
| 0.00 | 1.44 | 0.00 | 0.82 | -13.79 | 59.59 | 25.93 | 242.31 | 0.4816 | -856.0 | -766.9 | |
| 0.00 | 1.26 | 0.00 | 0.70 | -12.02 | 58.81 | 25.15 | 245.14 | 0.4601 | -811.0 | -683.9 | |
| 0.00 | 1.44 | 0.00 | 0.80 | -11.83 | 58.76 | 25.10 | 245.47 | 0.4583 | -882.0 | -840.9 | |
| 0.00 | 1.08 | 0.00 | 0.60 | -12.67 | 58.64 | 24.98 | 243.68 | 0.4616 | -782.0 | -651.1 | |
| 2.44 | 5.60 | 1.36 | 3.12 | -14.08 | 57.69 | 24.03 | 240.04 | 0.4578 | -999.0 | -750.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
