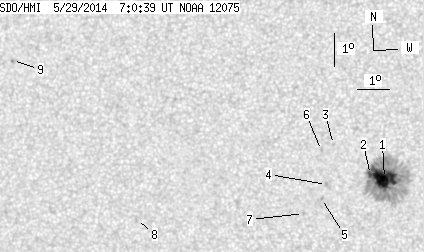

SDO HMI 2014-05-29 07:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 28.08 | 165.23 | 14.20 | 83.58 | -8.93 | 25.20 | -8.46 | 133.82 | 0.2018 | 1026.3 | 427.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-05-29 07:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 27.81 | 156.76 | 14.06 | 79.21 | -8.95 | 25.48 | -8.18 | 134.55 | 0.1981 | 1333.6 | 440.4 | |
| 0.27 | -1.00 | 0.14 | -1.00 | -8.82 | 25.04 | -8.61 | 132.63 | 0.2020 | 971.0 | 999999 | |
| 0.00 | 0.81 | 0.00 | 0.41 | -7.90 | 23.92 | -9.74 | 125.67 | 0.2072 | 854.0 | 686.4 | |
| 0.00 | 1.35 | 0.00 | 0.69 | -9.13 | 23.66 | -9.99 | 129.55 | 0.2232 | 943.0 | 795.7 | |
| 0.00 | 1.08 | 0.00 | 0.55 | -9.56 | 23.50 | -10.16 | 130.56 | 0.2300 | 925.0 | 826.3 | |
| 0.00 | 0.90 | 0.00 | 0.46 | -8.08 | 23.54 | -10.12 | 125.37 | 0.2143 | 873.0 | 586.8 | |
| 0.00 | 1.26 | 0.00 | 0.65 | -10.01 | 22.92 | -10.74 | 130.52 | 0.2425 | 896.0 | 646.1 | |
| 0.00 | 1.81 | 0.00 | 0.94 | -10.17 | 17.61 | -16.05 | 120.45 | 0.3170 | -667.0 | -488.6 | |
| 0.00 | 1.26 | 0.00 | 0.67 | -5.28 | 13.83 | -19.83 | 102.61 | 0.3476 | -897.0 | -722.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
