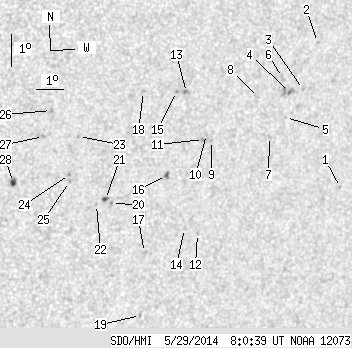

SDO HMI 2014-05-29 08:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 5.68 | 51.16 | 3.26 | 30.10 | -12.86 | 63.59 | 30.48 | 246.95 | 0.5392 | 115.8 | 257.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-05-29 08:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.81 | 0.00 | 0.51 | -14.14 | 69.69 | 36.57 | 248.24 | 0.6244 | -759.0 | -615.3 | |
| 0.00 | 1.26 | 0.00 | 0.77 | -9.66 | 68.12 | 35.01 | 254.80 | 0.5883 | 666.0 | 533.9 | |
| 0.00 | 1.08 | 0.00 | 0.66 | -11.11 | 67.78 | 34.67 | 252.26 | 0.5882 | 586.0 | 475.6 | |
| 0.63 | 7.49 | 0.38 | 4.55 | -11.21 | 67.27 | 34.16 | 251.88 | 0.5816 | 867.3 | 744.5 | |
| 0.00 | 0.72 | 0.00 | 0.44 | -11.98 | 67.22 | 34.11 | 250.58 | 0.5839 | 569.0 | 488.9 | |
| 0.00 | 3.25 | 0.00 | 1.97 | -10.75 | 66.94 | 33.83 | 252.52 | 0.5756 | 716.0 | 556.6 | |
| 0.00 | 1.44 | 0.00 | 0.88 | -12.58 | 66.71 | 33.60 | 249.35 | 0.5793 | 770.0 | 577.8 | |
| 0.00 | 0.63 | 0.00 | 0.38 | -11.37 | 66.13 | 33.02 | 251.11 | 0.5668 | 526.0 | 500.9 | |
| 0.00 | 1.08 | 0.00 | 0.64 | -12.72 | 64.58 | 31.47 | 248.02 | 0.5513 | 666.0 | 529.5 | |
| 0.00 | 0.99 | 0.00 | 0.59 | -12.53 | 64.37 | 31.26 | 248.22 | 0.5476 | 746.0 | 601.0 | |
| 0.00 | 2.71 | 0.00 | 1.60 | -12.69 | 64.29 | 31.18 | 247.90 | 0.5472 | 860.0 | 770.9 | |
| 0.00 | 1.17 | 0.00 | 0.70 | -15.62 | 64.51 | 31.40 | 243.07 | 0.5650 | 557.0 | 500.8 | |
| 0.00 | 2.62 | 0.00 | 1.53 | -11.24 | 63.49 | 30.38 | 250.04 | 0.5297 | 836.0 | 703.0 | |
| 0.00 | 1.63 | 0.00 | 0.97 | -15.47 | 64.01 | 30.90 | 242.99 | 0.5576 | 595.0 | 493.9 | |
| 0.00 | 1.26 | 0.00 | 0.73 | -11.21 | 63.13 | 30.02 | 249.90 | 0.5246 | 811.0 | 769.7 | |
| 1.17 | 3.16 | 0.69 | 1.85 | -13.82 | 63.10 | 29.99 | 245.21 | 0.5367 | 937.1 | 755.4 | |
| 0.00 | 1.63 | 0.00 | 0.96 | -16.24 | 62.67 | 29.56 | 240.78 | 0.5448 | 554.0 | 571.7 | |
| 0.00 | 1.54 | 0.00 | 0.88 | -11.22 | 61.95 | 28.84 | 249.22 | 0.5081 | -665.0 | -418.7 | |
| 0.00 | 1.26 | 0.00 | 0.75 | -18.23 | 62.87 | 29.76 | 237.67 | 0.5601 | 729.0 | 461.4 | |
| 0.00 | 1.08 | 0.00 | 0.63 | -14.71 | 61.25 | 28.14 | 242.35 | 0.5169 | -557.0 | -499.6 | |
| 1.26 | 2.35 | 0.73 | 1.35 | -14.58 | 61.02 | 27.91 | 242.40 | 0.5131 | -879.1 | -735.2 | |
| 0.00 | 0.99 | 0.00 | 0.57 | -14.74 | 60.72 | 27.61 | 241.89 | 0.5101 | -680.0 | -545.9 | |
| 0.00 | 0.81 | 0.00 | 0.46 | -12.63 | 59.82 | 26.71 | 245.13 | 0.4854 | -735.0 | -583.7 | |
| 0.00 | 1.26 | 0.00 | 0.72 | -13.81 | 59.65 | 26.53 | 242.74 | 0.4900 | -890.0 | -699.6 | |
| 0.00 | 1.44 | 0.00 | 0.82 | -14.03 | 59.67 | 26.56 | 242.36 | 0.4917 | -699.0 | -599.1 | |
| 0.00 | 1.54 | 0.00 | 0.86 | -11.83 | 58.80 | 25.69 | 245.93 | 0.4666 | -866.0 | -806.1 | |
| 0.00 | 1.72 | 0.00 | 0.96 | -12.63 | 58.61 | 25.50 | 244.17 | 0.4686 | -860.0 | -704.5 | |
| 2.62 | 4.24 | 1.46 | 2.37 | -14.07 | 57.73 | 24.62 | 240.60 | 0.4657 | -962.8 | -762.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
