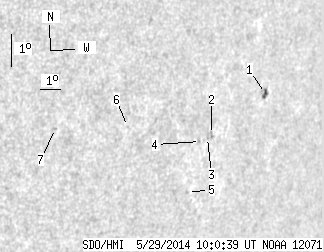

SDO HMI 2014-05-29 10:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.35 | 11.82 | 2.05 | 9.78 | -10.46 | 84.60 | 52.59 | 257.59 | 0.8011 | 300.1 | 304.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-05-29 10:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.35 | 4.97 | 2.05 | 4.33 | -9.59 | 87.04 | 55.03 | 259.02 | 0.8252 | 594.5 | 509.8 | |
| 0.00 | 2.17 | 0.00 | 1.79 | -10.89 | 84.52 | 52.51 | 257.10 | 0.8015 | 611.0 | 519.7 | |
| 0.00 | 0.90 | 0.00 | 0.74 | -10.98 | 84.34 | 52.33 | 256.95 | 0.7998 | 609.0 | 562.3 | |
| 0.00 | 0.63 | 0.00 | 0.52 | -11.11 | 84.02 | 52.00 | 256.74 | 0.7967 | 532.0 | 488.0 | |
| 0.00 | 0.99 | 0.00 | 0.81 | -12.70 | 83.78 | 51.77 | 254.72 | 0.7966 | 545.0 | 456.5 | |
| 0.00 | 1.08 | 0.00 | 0.82 | -10.69 | 80.37 | 48.36 | 256.66 | 0.7570 | -470.0 | -409.5 | |
| 0.00 | 1.08 | 0.00 | 0.77 | -10.79 | 77.13 | 45.11 | 255.88 | 0.7200 | -630.0 | -576.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
