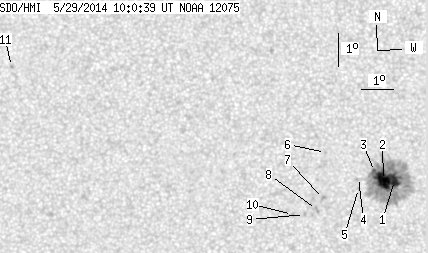

SDO HMI 2014-05-29 10:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 29.34 | 173.88 | 14.78 | 87.61 | -8.96 | 25.26 | -6.76 | 140.32 | 0.1824 | 1024.0 | 421.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-05-29 10:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 7.95 | 162.70 | 4.00 | 81.92 | -8.97 | 25.73 | -6.29 | 142.10 | 0.1769 | 1279.2 | 415.3 | |
| 19.95 | -1.00 | 10.05 | -1.00 | -8.97 | 25.39 | -6.63 | 140.63 | 0.1805 | 1350.1 | 999999 | |
| 1.44 | -1.00 | 0.73 | -1.00 | -8.69 | 25.12 | -6.90 | 138.48 | 0.1800 | 930.2 | 999999 | |
| 0.00 | 0.54 | 0.00 | 0.27 | -8.88 | 24.62 | -7.40 | 137.18 | 0.1880 | 40.0 | 73.2 | |
| 0.00 | 0.81 | 0.00 | 0.41 | -9.21 | 24.61 | -7.41 | 138.37 | 0.1924 | 604.0 | 456.9 | |
| 0.00 | 0.90 | 0.00 | 0.46 | -8.11 | 23.61 | -8.41 | 130.60 | 0.1915 | 899.0 | 685.2 | |
| 0.00 | 2.44 | 0.00 | 1.23 | -9.52 | 23.51 | -8.50 | 135.51 | 0.2090 | 820.0 | 768.3 | |
| 0.00 | 2.35 | 0.00 | 1.19 | -9.85 | 23.29 | -8.73 | 135.89 | 0.2158 | 934.0 | 796.5 | |
| 0.00 | 1.35 | 0.00 | 0.69 | -10.01 | 22.91 | -9.11 | 135.18 | 0.2222 | 783.0 | 645.3 | |
| 0.00 | 1.53 | 0.00 | 0.78 | -10.00 | 22.53 | -9.48 | 134.04 | 0.2267 | 676.0 | 493.5 | |
| 0.00 | 1.26 | 0.00 | 0.66 | -5.43 | 13.80 | -18.22 | 104.11 | 0.3223 | -794.0 | -607.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
