SDO HMI 2014-05-29 10:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 20.32 | 47.19 | 11.32 | 26.17 | -19.73 | 51.06 | 19.05 | 223.22 | 0.4496 | 162.8 | 126.1 | |
|
previous
or next observation for the same group /

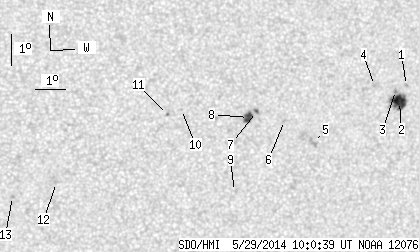

back to the solar disc SDO HMI 2014-05-29 10:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.44 | 0.00 | 0.81 | -18.75 | 53.87 | 21.86 | 229.03 | 0.4688 | 820.0 | 640.6 | |
| 14.63 | 21.58 | 8.21 | 12.11 | -19.26 | 53.70 | 21.68 | 227.95 | 0.4716 | 978.4 | 618.6 | |
| 0.00 | 1.17 | 0.00 | 0.66 | -18.91 | 53.51 | 21.50 | 228.31 | 0.4662 | 960.0 | 788.5 | |
| 0.00 | 1.35 | 0.00 | 0.75 | -18.75 | 52.77 | 20.75 | 227.63 | 0.4561 | 816.0 | 648.9 | |
| 0.00 | 4.60 | 0.00 | 2.56 | -20.59 | 50.91 | 18.90 | 222.04 | 0.4546 | 797.0 | 700.6 | |
| 0.00 | 1.35 | 0.00 | 0.74 | -19.88 | 49.84 | 17.82 | 221.56 | 0.4356 | -690.0 | -555.9 | |
| 0.63 | 2.17 | 0.35 | 1.18 | -19.60 | 48.86 | 16.84 | 220.48 | 0.4222 | -958.0 | -829.4 | |
| 5.06 | 7.49 | 2.76 | 4.09 | -19.79 | 48.61 | 16.59 | 219.76 | 0.4219 | -1072.3 | -798.1 | |
| 0.00 | 0.81 | 0.00 | 0.45 | -22.19 | 48.40 | 16.39 | 215.80 | 0.4484 | 270.0 | 320.9 | |
| 0.00 | 0.72 | 0.00 | 0.39 | -19.54 | 46.34 | 14.32 | 216.19 | 0.3965 | -753.0 | -587.8 | |
| 0.00 | 1.17 | 0.00 | 0.63 | -19.70 | 45.89 | 13.87 | 215.09 | 0.3943 | -783.0 | -645.1 | |
| 0.00 | 1.81 | 0.00 | 0.97 | -21.91 | 42.37 | 10.36 | 205.03 | 0.3960 | -699.0 | -646.9 | |
| 0.00 | 1.53 | 0.00 | 0.83 | -22.37 | 40.94 | 8.92 | 201.47 | 0.3935 | -885.0 | -679.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
