SDO HMI 2014-05-29 11:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.81 | 10.55 | 1.60 | 8.99 | -10.71 | 85.36 | 53.90 | 257.49 | 0.8149 | 425.9 | 411.0 | |
|
previous
or next observation for the same group /

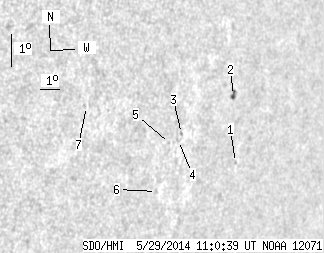

back to the solar disc SDO HMI 2014-05-29 11:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.90 | 0.00 | 0.82 | -11.68 | 87.73 | 56.26 | 256.67 | 0.8390 | 400.0 | 327.4 | |
| 1.81 | 3.97 | 1.60 | 3.51 | -9.61 | 87.04 | 55.58 | 259.05 | 0.8305 | 601.0 | 533.4 | |
| 0.00 | 1.17 | 0.00 | 0.98 | -10.82 | 84.57 | 53.10 | 257.27 | 0.8075 | 597.0 | 512.0 | |
| 0.00 | 1.44 | 0.00 | 1.20 | -11.04 | 84.47 | 53.00 | 256.99 | 0.8068 | 543.0 | 504.6 | |
| 0.00 | 0.63 | 0.00 | 0.52 | -11.13 | 84.03 | 52.57 | 256.80 | 0.8025 | 560.0 | 480.4 | |
| 0.00 | 1.72 | 0.00 | 1.42 | -12.63 | 83.78 | 52.31 | 254.91 | 0.8020 | 584.0 | 415.8 | |
| 0.00 | 0.72 | 0.00 | 0.54 | -10.04 | 79.74 | 48.27 | 257.49 | 0.7550 | -409.0 | -363.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
