SDO HMI 2014-05-29 11:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 20.95 | 49.17 | 11.72 | 27.38 | -19.80 | 51.00 | 19.53 | 223.72 | 0.4564 | 74.4 | 118.7 | |
|
previous
or next observation for the same group /

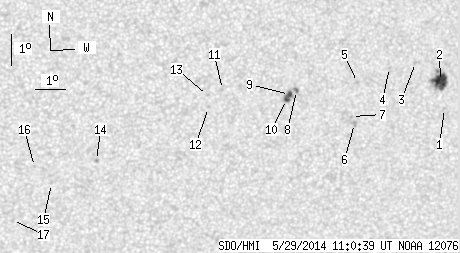

back to the solar disc SDO HMI 2014-05-29 11:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.17 | 0.00 | 0.67 | -20.15 | 54.01 | 22.55 | 227.53 | 0.4900 | 622.0 | 462.6 | |
| 15.62 | 24.38 | 8.80 | 13.73 | -19.29 | 53.75 | 22.28 | 228.63 | 0.4788 | 952.7 | 685.9 | |
| 0.00 | 1.53 | 0.00 | 0.86 | -18.68 | 52.80 | 21.33 | 228.48 | 0.4621 | 853.0 | 574.4 | |
| 0.00 | 1.08 | 0.00 | 0.60 | -18.85 | 51.92 | 20.46 | 227.07 | 0.4536 | 671.0 | 620.2 | |
| 0.00 | 1.08 | 0.00 | 0.60 | -19.33 | 50.89 | 19.42 | 224.83 | 0.4469 | -694.0 | -589.0 | |
| 0.00 | 2.98 | 0.00 | 1.66 | -20.65 | 50.96 | 19.49 | 222.78 | 0.4615 | 792.0 | 616.4 | |
| 0.00 | 1.26 | 0.00 | 0.70 | -20.42 | 50.82 | 19.36 | 222.95 | 0.4577 | 687.0 | 596.9 | |
| 0.72 | 2.35 | 0.40 | 1.29 | -19.59 | 48.85 | 17.38 | 221.35 | 0.4278 | -958.6 | -818.7 | |
| 2.44 | 6.68 | 1.33 | 3.66 | -19.72 | 48.63 | 17.16 | 220.78 | 0.4269 | -1148.1 | -792.4 | |
| 2.17 | -9.00 | 1.19 | -9.00 | -19.88 | 48.54 | 17.07 | 220.39 | 0.4279 | -946.5 | 999999 | |
| 0.00 | 0.81 | 0.00 | 0.44 | -19.57 | 46.36 | 14.89 | 217.19 | 0.4024 | -831.0 | -595.2 | |
| 0.00 | 0.90 | 0.00 | 0.49 | -20.15 | 45.95 | 14.48 | 215.53 | 0.4057 | -813.0 | -612.6 | |
| 0.00 | 0.63 | 0.00 | 0.34 | -19.76 | 45.88 | 14.41 | 216.00 | 0.4002 | -882.0 | -705.1 | |
| 0.00 | 1.35 | 0.00 | 0.73 | -21.87 | 42.36 | 10.89 | 206.17 | 0.3992 | -804.0 | -684.0 | |
| 0.00 | 0.72 | 0.00 | 0.39 | -22.63 | 40.91 | 9.44 | 202.31 | 0.4005 | -641.0 | -505.6 | |
| 0.00 | 0.72 | 0.00 | 0.39 | -22.07 | 40.31 | 8.84 | 201.59 | 0.3887 | -739.0 | -560.5 | |
| 0.00 | 1.53 | 0.00 | 0.83 | -23.84 | 39.68 | 8.22 | 198.59 | 0.4117 | -697.0 | -531.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
